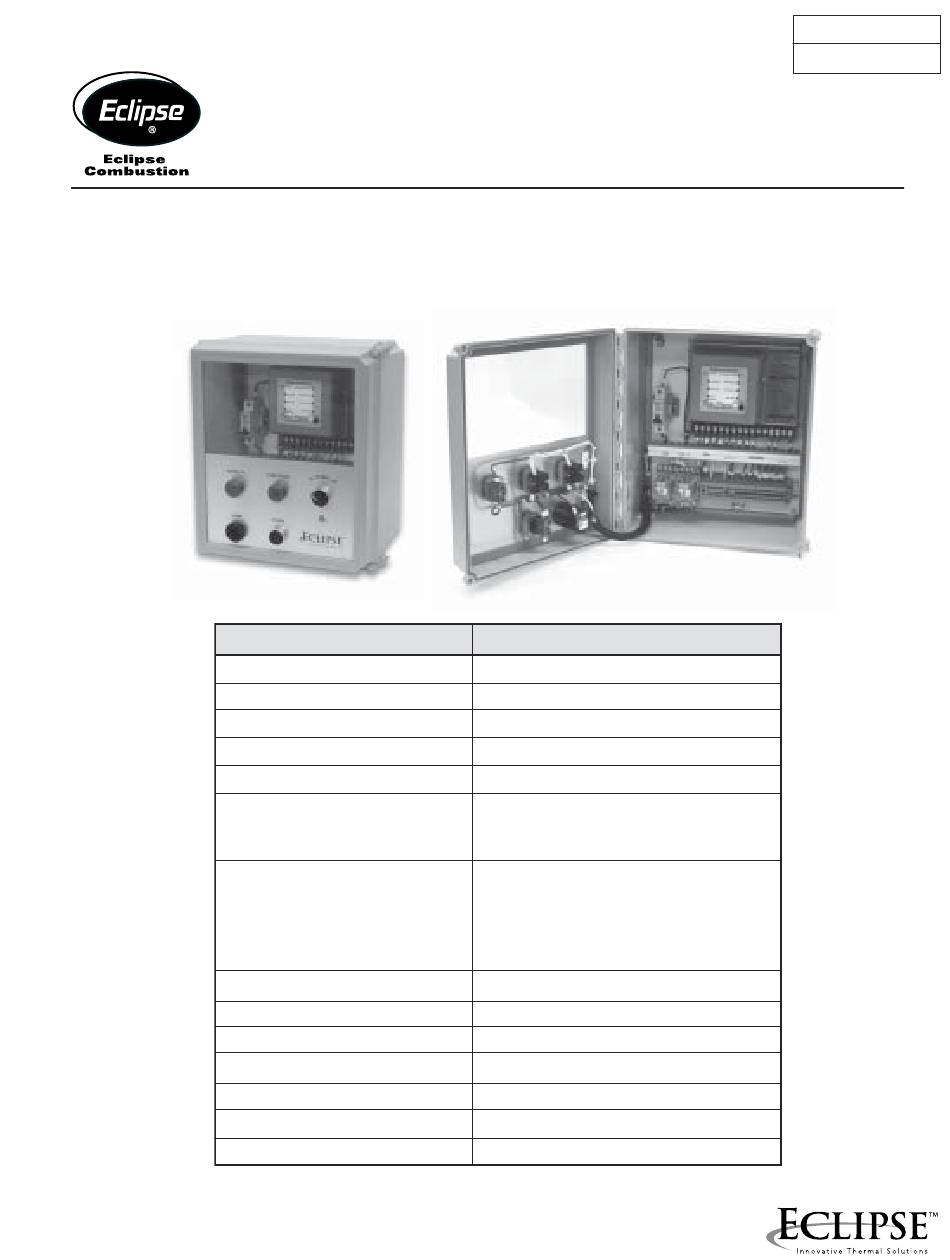

Eclipse Combustion CP Series Quick Start Manual

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Parameter
Power Supply
Ambient Temperature
Enclosure Rating
Dimensions
Weight
Flame Monitor
Flame Sensor
Ignition Transformer
Start Mode
Annunciation
Combustion Blower Rating
Temperature Control and Limit
Approvals
Flame Monitor Approvls
Control Panels
CP Series
Specifications
120 or 240VAC, 1PH, 50/60Hz
-40˚ F to +140˚ F (-40˚C to 60˚C)
NEMA 4
14"H x 12"W x 8"D (356x305x203mm)
17 lbs. (7.7 kg)
No purge
Purge
Modulation
Flame rod
UV Scanner
Self-Check UV Scanner
Solid-State UV-IR Scanner
IR Scanner
Optional
Automatic
Indicator lights and optional alarm
1/2 hp maximum for direct connection
Not included
CSA for Canada and USA
FM, CSA, UL
Data 870-1
01/03
Model CPL
Version 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Eclipse Combustion CP Series

  • Page 1 Data 870-1 01/03 Control Panels CP Series Model CPL Version 1 Parameter Specifications 120 or 240VAC, 1PH, 50/60Hz Power Supply Ambient Temperature -40˚ F to +140˚ F (-40˚C to 60˚C) Enclosure Rating NEMA 4 Dimensions 14"H x 12"W x 8"D (356x305x203mm) Weight 17 lbs.

  • Page 2: Wiring Diagram

    Wiring Diagram 120/240VAC/1Ph/60Hz Power Supply (Fused disconnect switch by customer) VF560XXXAA Eclipse Veri-Flame Monitor For modulation, Purge or No-Purge NOTES: 1. Incomming power lines marked (L1 & L2) must be connected to the 120/240 VAC potential. The neutral (L2) wire must be bonded to ground at its source.

  • Page 3: Sequence Of Operations

    Dimensions and Specifications Inches (mm) .50" .31" Slot (13) 14.00 14.94 14.55 (356) (379) (370) 8.47 (215) (254) 12.55 (319) Sequence of Operations 1. Reference Instruction Manual 818 for details on the 8. At the end of the purge time, the spark and the Veri-Flame control.
  • Page 4 Interconnection Diagram 30 Unit Terminal Block See Jumper notes 6, 7, and 8 on page 2. Data 870-1 01/03...
  • Page 5 Offered By: Power Equipment Company 2011 Williamsburg Road Richmond, Virginia 23231 Phone (804) 236-3800 (804) 236-3882 www.peconet.com...
