PINO 3.0 Building Instruction
www.pcm.at
www.modellmarkt24.ch;
www.modellmarkt24.ch;

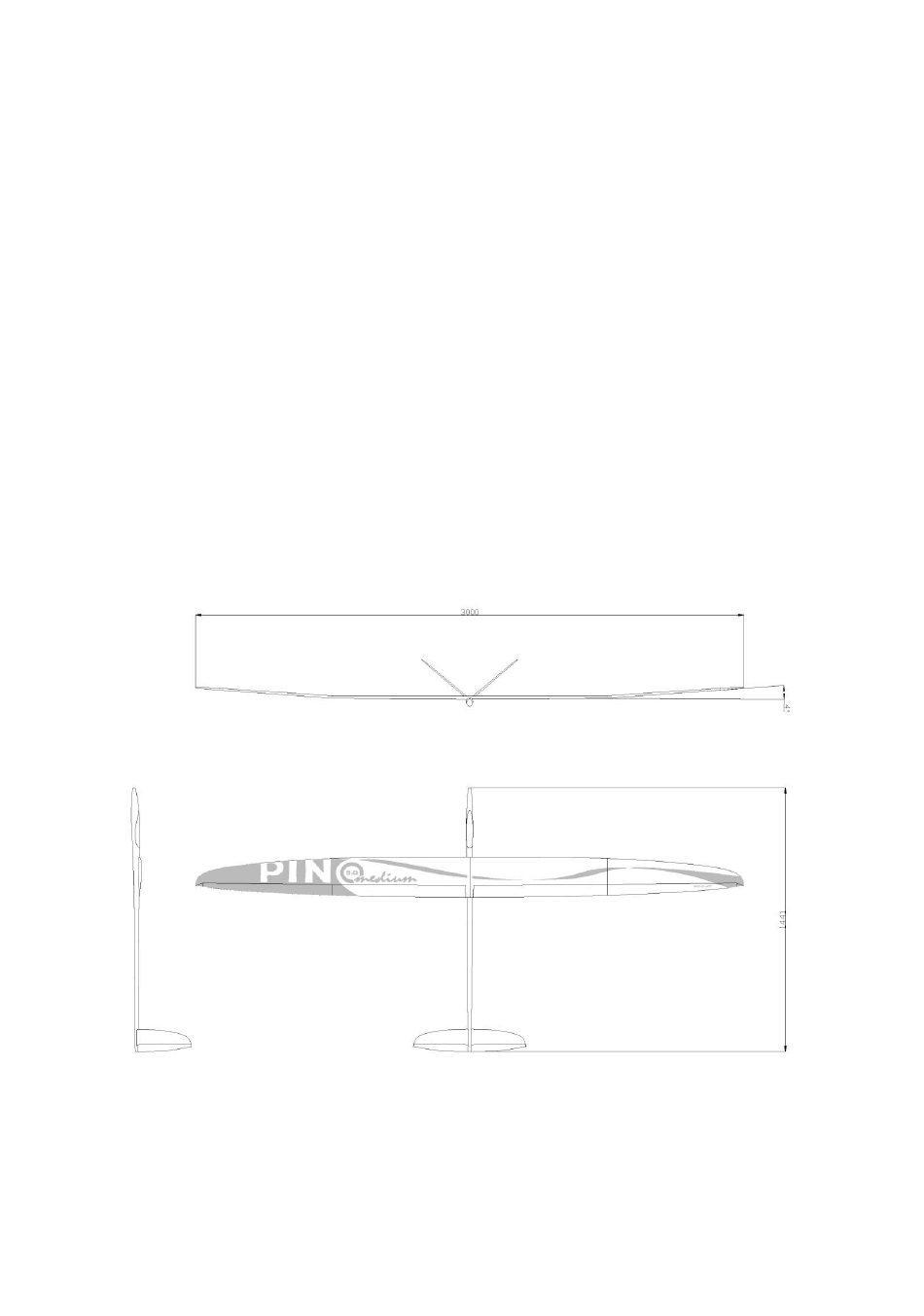

Wing span [mm]:
Wing area [dm2]:
Aspect ratio:
Take-off weight [g]:
Wing loading:
Airfoil:
BUILDING INSTRUCTION
Allround fun glider PINO 3.0
www.modellmarkt24.de
www.modellmarkt24.de
August 2018
3000
54,7
16,6
from about 1730-2610g
31,6-47,5g/dm"
MP1-1,66/7,6 to MP5-1/5
5 Modern F3b-F3f airfoils
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PINO 3.0 and is the answer not in the manual?

Questions and answers

Related Manuals for PCM PINO 3.0

Summary of Contents for PCM PINO 3.0

  • Page 1 Wing span [mm]: 3000 Wing area [dm2]: 54,7 Aspect ratio: 16,6 Take-off weight [g]: from about 1730-2610g Wing loading: 31,6-47,5g/dm“ Airfoil: MP1-1,66/7,6 to MP5-1/5 5 Modern F3b-F3f airfoils BUILDING INSTRUCTION Allround fun glider PINO 3.0 www.pcm.at www.modellmarkt24.ch; www.modellmarkt24.ch; www.modellmarkt24.de www.modellmarkt24.de...

  • Page 2: Table Of Contents

    PINO 3.0 Building Instruction August 2018 CONTENTS DATA 1. Kit – contents 2. What else do you need? 3. Electronic equipment ASSEMBLING THE MODEL 4. Wing 4.1 Controlling flaps and ailerons 5. Fuselage 5.1 Servos 5.2 Contacts for flaps and ailerons 5.3 Accumulators...

  • Page 3: Data

    PINO 3.0 Building Instruction August 2018 DATA 1. Kit – contents Fuselage + canopy Wing Elevator Lever for controlling ailerons, 2 pc. Lever for controlling flaps, 2 pc. Bowden pushrods for elevator and rudder 2 pc. M2.5 screw rod for controlling ailerons, 4 pc.

  • Page 4: Assembling The Model

    PINO 3.0 Building Instruction August 2018 ASSEMBLING THE MODEL 4. WING 4.1 Controlling flaps and ailerons Fixing the servos First of all, prepare the surfaces which will be glued. Grind them with a rough paper (about 80-40 grain size). www.pcm.at www.modellmarkt24.ch;...
  • Page 5 PINO 3.0 Building Instruction August 2018 Then, set the servo to the zero position and screw it to the frame. The screwing is important, because if you screw the servo after gluing it into the wing, tension will occur and the surface of the wing will get wavy.
  • Page 6 PINO 3.0 Building Instruction August 2018 Prepare the parts for gluing the control levers into the wing. Grind all gluing surfaces, the slot of the control surfaces and the levers themselves. The bolt of the lever connector has sharp edges that are bigger than the bolt diameter.
  • Page 7 PINO 3.0 Building Instruction August 2018 Cable mounting: Mill a hole into the preformed space for the contacts. Make the hole big enough, so that the contacts will not touch the carbon. We now use 2 pairs of contacts for a redundant connection.

  • Page 8: Contacts For Flaps And Ailerons

    PINO 3.0 Building Instruction August 2018 Make sure that the contact fits easily into the free space, which is provided for the contact, without putting any force on the soldered areas. Before you fix the contact with a drop of runny super glue, check if all the servos work well.

  • Page 9: Fuselage

    PINO 3.0 Building Instruction August 2018 5. FUSELAGE 5.1 Servos All necessary holes are already pre-milled. The holes for the servos are especially dimensioned for the KST DS 215MG V3.0 . You just have to screw in the servos and connect them to the pushrods.

  • Page 10: Accumulators

    PINO 3.0 Building Instruction August 2018 Then glue again a thin piece of GFR to the wirings and the soldered parts. So you insulate and strengthen the soldered parts. Now glue the left and the right cable part together. The rest of the contacts have to be insulated.

  • Page 11: Connection Of V-Tail Control Surfaces

    PINO 3.0 Building Instruction August 2018 5.4 Connection of V-Tail control surfaces and carbon joiners for fuselage connection Just set the servos and the control surfaces to zero and glue the lever connectors to the pushrods. The black teflon should be removed before gluing.

  • Page 12: Ballast

    PINO 3.0 Building Instruction August 2018 6. BALLAST Included in the kit: - 2x carbon rod - 2x steel rod The 2x long steel rods are just delivered if you ask for. You can use these rods as follows: 1x carbon rod for very weak conditions in the front hole.

  • Page 13: Settings For The First Flight

    PINO 3.0 Building Instruction August 2018 7. SETTINGS FOR FIRST FLIGHT www.pcm.at www.modellmarkt24.ch; www.modellmarkt24.ch; www.modellmarkt24.de www.modellmarkt24.de...

  • Page 14: Other

    PINO 3.0 Building Instruction August 2018 OTHER 8. Check list before starting: 1. Check centre of gravity 2. Check control surfaces: Do control surfaces move in the correct direction? Check the greatest swings 3. Check reception 4. Check control surfaces before each flight.
