Amphenol Socapex RJField Series Manual

RJ Field
RJ Field
Ethernet Connection System
for Harsh Environment

Description

Description
RJField allows you to use an Ethernet Cat.5e connection for
10 BaseT or 100 BaseTX networks in harsh environments:
• Sealed against fluid and dust (IP67)
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Mechanical Coding / Polarization (4 positions)

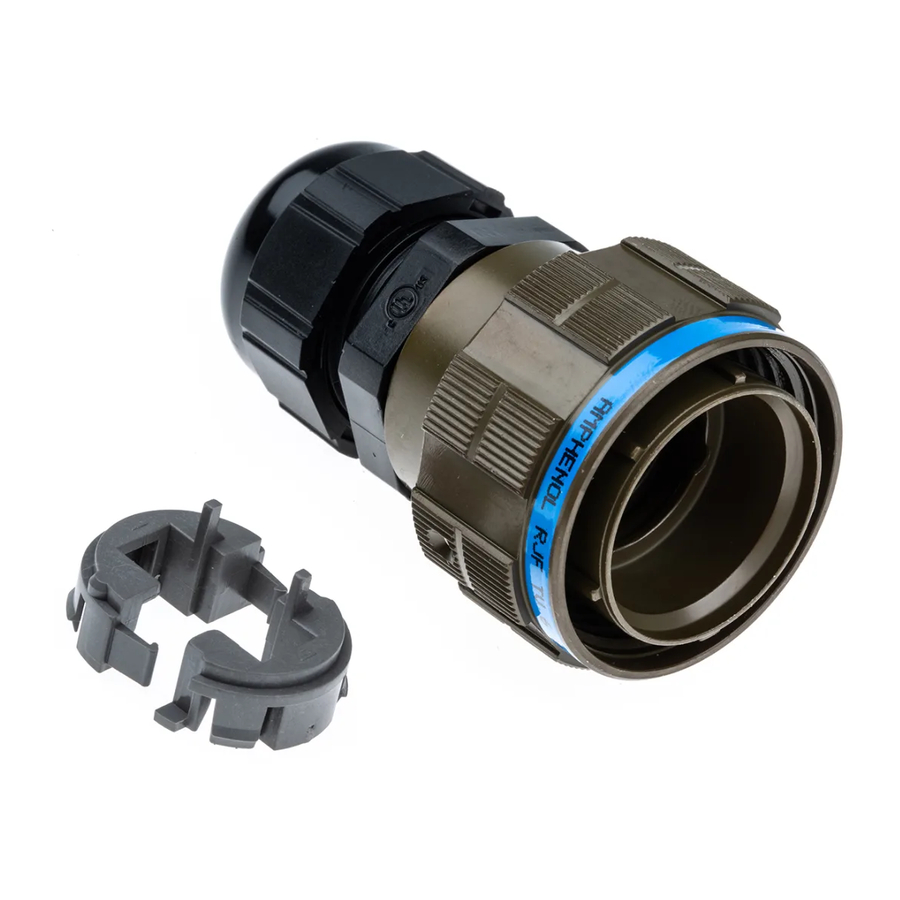

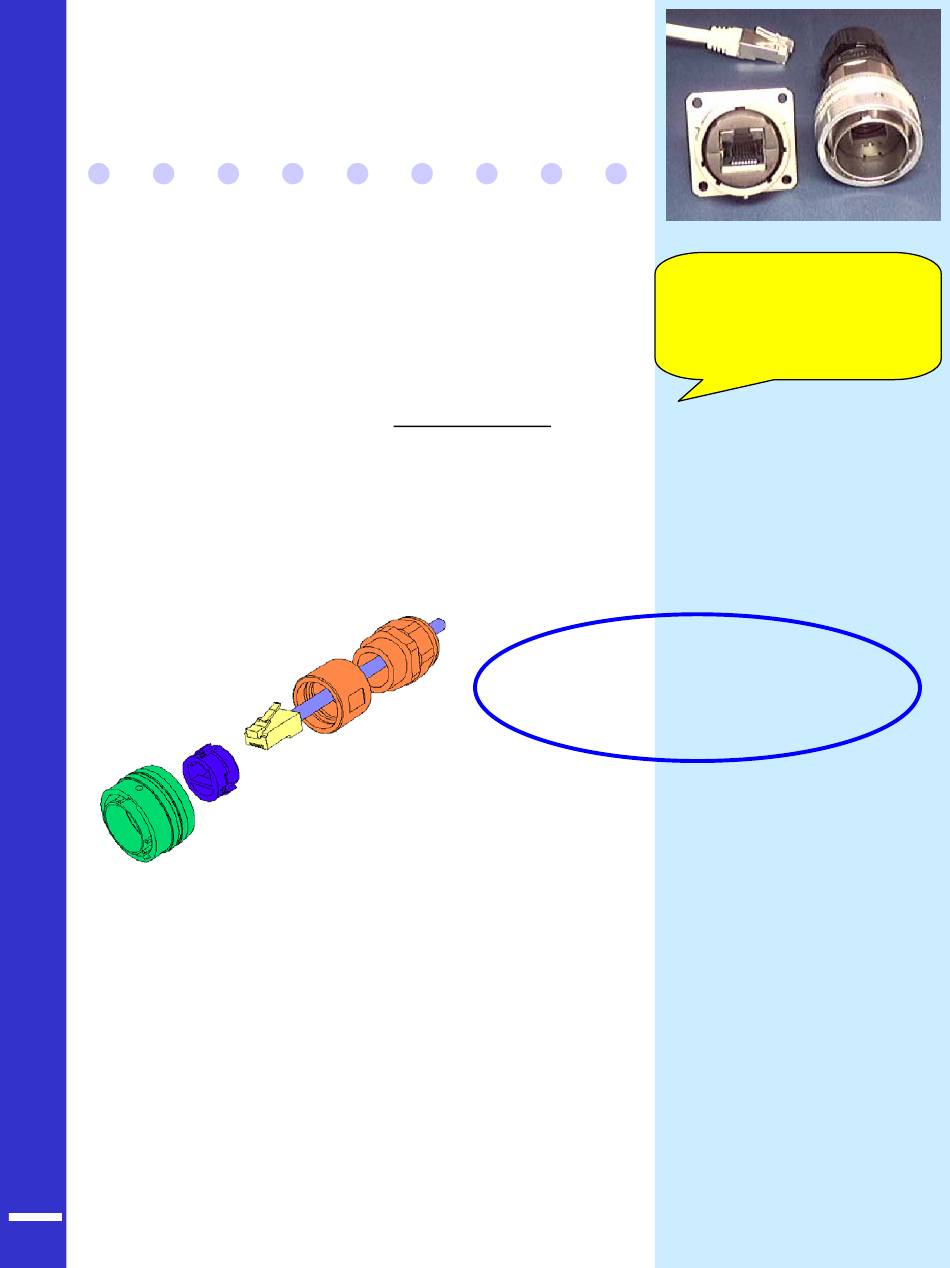

With the patented RJStop system you can use a standard
RJ45 cordset in a metallic plug which will protect it from
shocks, dust and fluids.
No hazardous in-field cabling and grounding!
This metallic plug is connected into a receptacle, using a fast
¼ turn bayonet coupling mechanism (MIL-C-26482 type)
providing both "audible and visual" coupling.
On the receptacle, one female RJ45 is soldered onto a PCB
allowing for the following back terminations :
• another female RJ45
• a RJ45 cordset
• IDC modules
Technical Assistance :
Dominique Signorel
Product Manager
DominiqueS@amphenolcanada.com
Tel : (514) 862-0824
Transform your RJ45
cordset in a Harsh
Environment Connector !
• Robotics
• Industrial Process Control
• CNC Machines
• Machine Tool
• Motion Control
• Data Acquisition and
Transmission in Harsh
Environment
• Tele-maintenance

Applications

Applications
