Summary of Contents for Waldorf DVCA1
- Page 1 ALDORF DVCA ANUAL Waldorf Music GmbH 2016-09-15...
- Page 2 Rolf W ¨ ohrmann, Frank Schneider Design & Konzept: Stephan Gries, Axel Hartmann Like any Waldorf product, the dvca1 has been developed and produced using milk from happy cows. We hope you enjoy it as much as we do. Betatest:...
-
Page 3: Table Of Contents
This device is designed exclusively to generate low frequency audio signals for sound generation. Any other use is prohibited and voids the warranty ex- tended by Waldorf Music GmbH. Damages due to incorrect use are not the responsability of Waldorf Music GmbH. -
Page 4: Device Maintenance
Use only a soft cloth or brush to clean the device surface. Never use cleaning chemicals as they will damage the device surface. 3 Package Contents The dvca1 package contains the following parts: dvca1 Dual VCA Module 1 x 10-way 20cm ribbon cable 4 x M2.5 x 6 screws... -

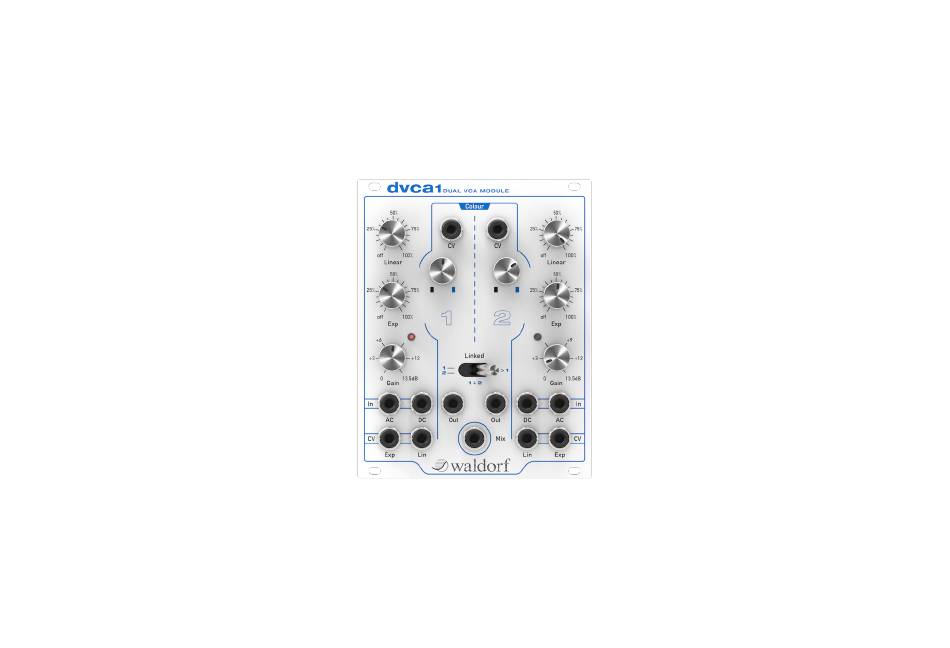

Page 5: Controls & Connectors
4 CONTROLS & CONNECTORS 4 Controls & Connectors Description 1, 9 AC input For your audio signals 2, 8 DC input Used for audio or control signals without the filtering option (Colour) 3, 11 Exp CV input Used to modulate the Exponential parameter 4, 10 Lin CV input Used to modulate the Linear parameter... -
Page 6: Device Connection
5 DEVICE CONNECTION 5 Device Connection 5.2 Signal Connection The second step is to integrate the dvca1 to your Eurorack system. You now own a fantastic amplification module. It’s time to integrate it in your modular system. Connect an audio signal like a VCO, sound source or any other audio signal to one of the AC inputs and connect the Mix- or individual outputs to your studio 5.1 Power Connection... -
Page 7: Device Overview
6.2 Outputs satisfying. It’s a new level of innovation and possibilities. The new design of the dvca1 supports your personal workflow in a fantastic way and gives you a smart instrument to develop your sound further on. Built around two analog VCAs with a wide range of options including the most important one: the ability to musically colour the audio signal. -
Page 8: Overall Gain
LFOs The latter could be simply realised with the dvca1 by using one of the linear / etc. However, when the modulating signal itself is non-linear like from classic... -
Page 9: Link Modes
OTA-based low-pass filter in the dvca1 can be modulated at any speed up to audio rate for giving a rich and flexible timbre control. -
Page 10: Tips & Tricks
9 SPECIFICATIONS 7 Tips & Tricks 9 Specifications In addition to classical modulations like LFOs or envelopes, the CV inputs could Power Supply: +12V/100mA, -12V/100mA also be fed with audio signals. The resulting modulation can be very interesting Width: 20HP, 101.6mm much like - but not strictly identical to - ring modulation. -
Page 11: Block Diagram
10 BLOCK DIAGRAM 10 Block Diagram...
