Installation Guide for RACK12 Mounting Bracket
This guide provide brief introduction and usage method for Mounting Bracket.
HDBaseT Extender is consist of one HDBaseT Transmitter and one HDBaseT Receiver, this Mounting
Bracket with12 slots is designed for fixing twelve Transmitters or Receivers.
1. Preparation
Unpacking
Take out all spare parts form the packaging box, and check them carefully. If you find any defective or missing parts, please
contact your local dealer.
24 x Support(1)
2 x Panels
44 x Screws(3*6mm)

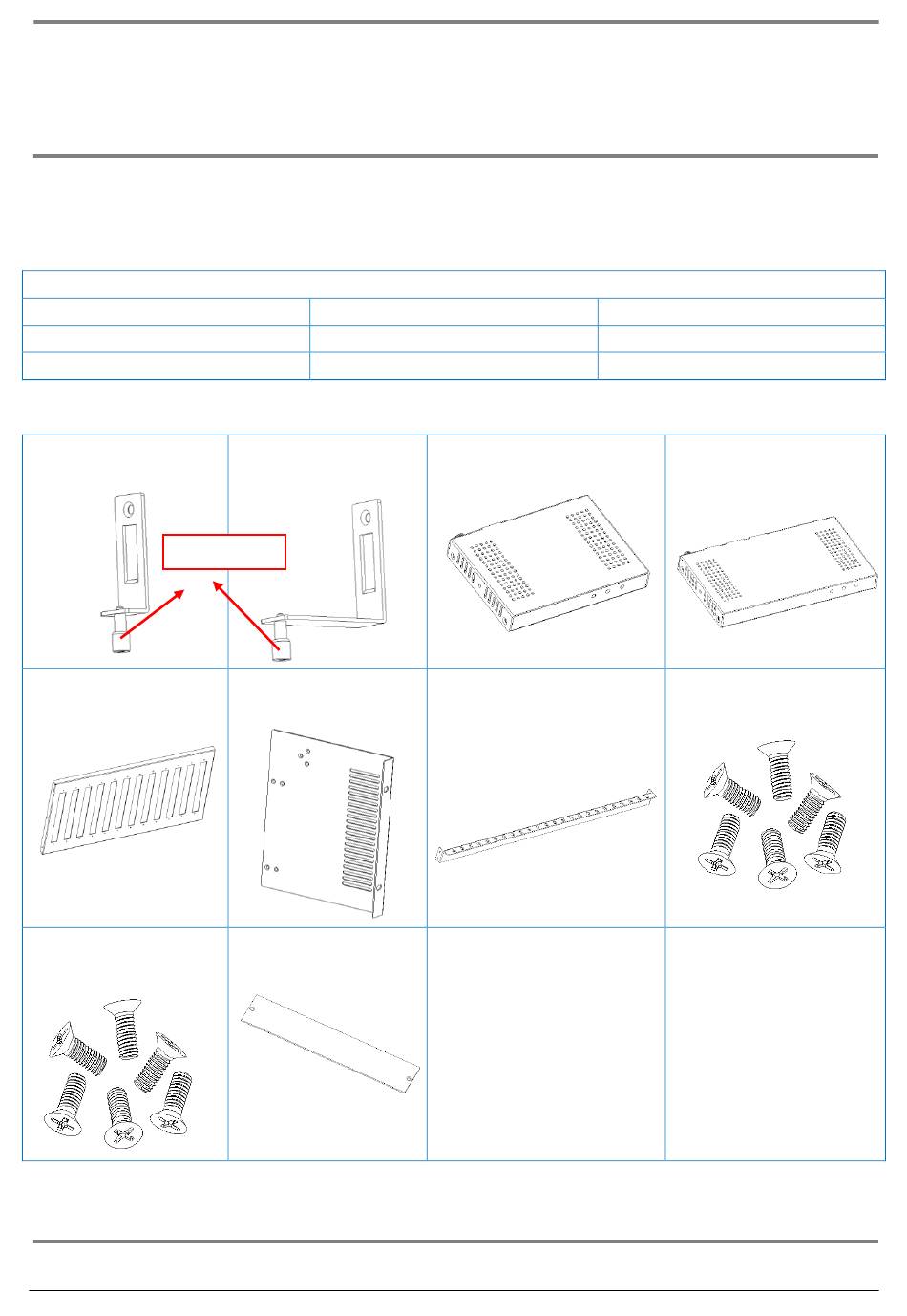

Prepare Spare Parts
Support (1)
Captive Screw
Main Frame
Screws(3*6mm)
Pictures for reference only, subject to our existing products.
This Mounting Bracket can fix 12 HDBaseT Transmitters or Receiver.
Altimium
Packing List:
12 x Support(2)
2 x Metal Rods
11 x Baffle plates
Support (2)
Panels
Baffle plates
1
1 x Main Frame
22 x Screws(2.5*5mm)
1 x Fast Operating Guideline
HDBaseT Extender (1)
(115mm*84mm*16mm)
Metal Rods
HDBaseT Extender (2)
(152mm*84mm*16mm)
Screws(2.5*5mm)
www.altimium.com
Advertisement
Table of Contents
Summary of Contents for Altimium RACK12
- Page 1 Installation Guide for RACK12 Mounting Bracket This guide provide brief introduction and usage method for Mounting Bracket. HDBaseT Extender is consist of one HDBaseT Transmitter and one HDBaseT Receiver, this Mounting Bracket with12 slots is designed for fixing twelve Transmitters or Receivers.
- Page 2 Step 4. According to Step 3, connect another panel to the other screws (3*6mm). side of main frame with screws (3*6mm). Metal rods Step 5. Install two metal rods with screws (3*6mm). Step 6. Put transmitters or receivers insert the slots, and tighten the captive screws. Altimium www.altimium.com...
- Page 3 Step 7. For the empty slots, install baffle plates with screws (2.5*5mm) to cover them. 3. Dimensional Drawing 437 mm 23 mm RACK12 17 mm 483.0mm × 221.0mm ×180.0 (External Frame) Dimension (W*H*D) 155.6mm × 17.0 mm (Internal Square Frame)
- Page 4 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
