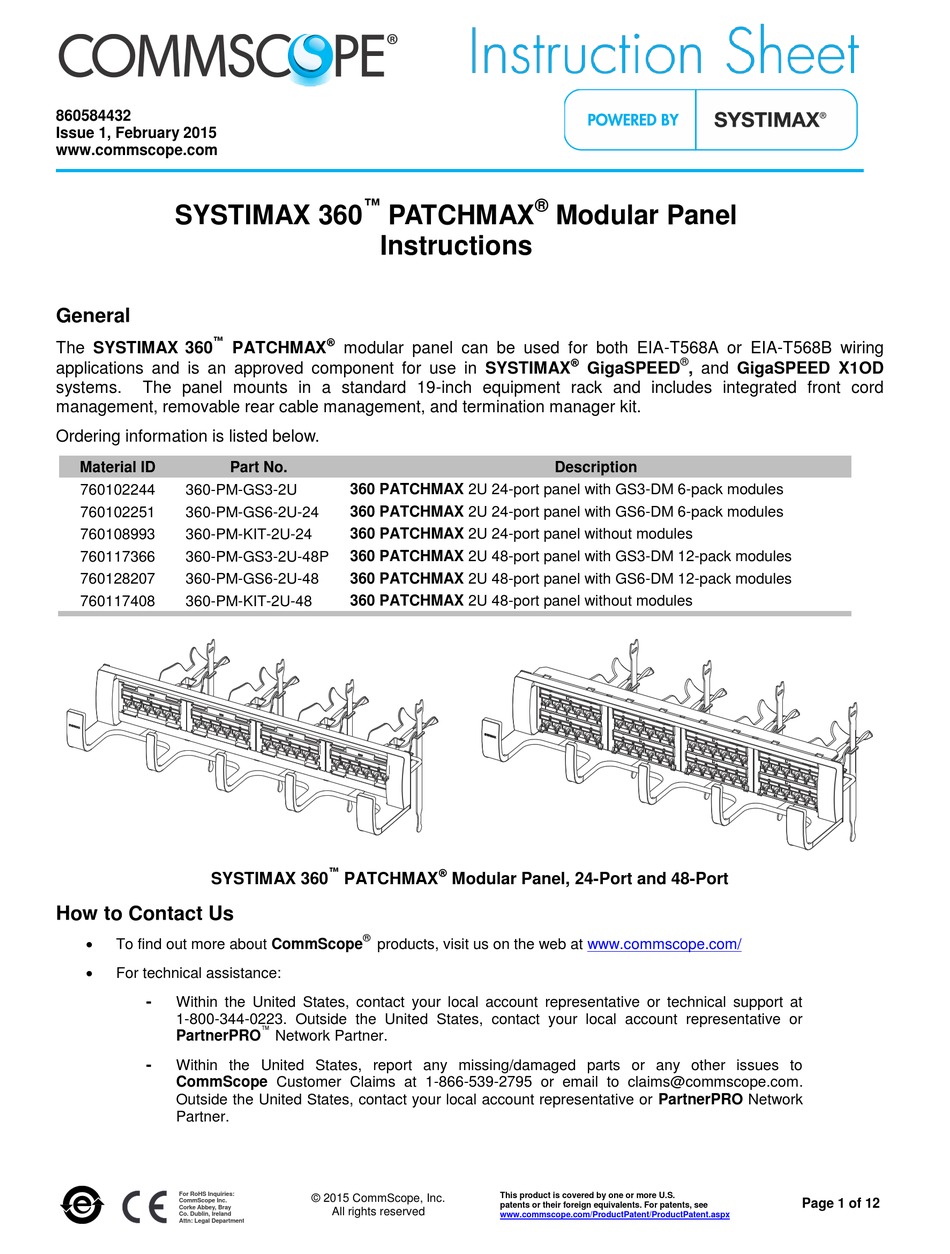

860584432
Issue 1, February 2015
www.commscope.com
SYSTIMAX 360
General
™
The SYSTIMAX 360
PATCHMAX
applications and is an approved component for use in SYSTIMAX
systems.
The panel mounts in a standard 19-inch equipment rack and includes integrated front cord
management, removable rear cable management, and termination manager kit.
Ordering information is listed below.
Material ID
Part No.
760102244
360-PM-GS3-2U
760102251
360-PM-GS6-2U-24
760108993
360-PM-KIT-2U-24
760117366
360-PM-GS3-2U-48P
760128207
360-PM-GS6-2U-48
760117408
360-PM-KIT-2U-48
SYSTIMAX 360
How to Contact Us
To find out more about CommScope
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
PartnerPRO
-
Within the United States, report any missing/damaged parts or any other issues to
CommScope Customer Claims at 1-866-539-2795 or email to claims@commscope.com.
Outside the United States, contact your local account representative or PartnerPRO Network
Partner.
For RoHS Inquiries:
CommScope Inc.
Corke Abbey, Bray
Co. Dublin, Ireland
Attn: Legal Department
™
PATCHMAX
Instructions
modular panel can be used for both EIA-T568A or EIA-T568B wiring
360 PATCHMAX 2U 24-port panel with GS3-DM 6-pack modules
360 PATCHMAX 2U 24-port panel with GS6-DM 6-pack modules
360 PATCHMAX 2U 24-port panel without modules
360 PATCHMAX 2U 48-port panel with GS3-DM 12-pack modules
360 PATCHMAX 2U 48-port panel with GS6-DM 12-pack modules
360 PATCHMAX 2U 48-port panel without modules
™
PATCHMAX
®
products, visit us on the web at
™
Network Partner.
© 2015 CommScope, Inc.
All rights reserved
®
Modular Panel
GigaSPEED
Description
Modular Panel, 24-Port and 48-Port
www.commscope.com/
This product is covered by one or more U.S.
patents or their foreign equivalents. For patents, see
www.commscope.com/ProductPatent/ProductPatent.aspx
®
, and GigaSPEED X1OD
Page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CommScope SYSTIMAX 360 PATCHMAX
Summary of Contents for CommScope SYSTIMAX 360 PATCHMAX
- Page 1 PartnerPRO Network Partner. Within the United States, report any missing/damaged parts or any other issues to CommScope Customer Claims at 1-866-539-2795 or email to claims@commscope.com. Outside the United States, contact your local account representative or PartnerPRO Network Partner. For RoHS Inquiries: This product is covered by one or more U.S.
-
Page 2: Specifications
860584432 www.commscope.com Instruction Sheet Specifications Wire Termination Wire Size: 22-24 AWG (0.64 - 0.51 mm) Solid Copper 22-24 AWG (0.64 - 0.51 mm) Seven Stranded Copper Insulation Size: 0.042 inch maximum DOD Insulation Types: Polyethylene, Polypropylene and FEP IDC Reterminations:... -
Page 3: Warning! Important Safety Instructions
860584432 Instruction Sheet Separately Orderable Items Material ID Description 360 PATCHMAX GS3-DM 6-pack distribution module 760102269 360 PATCHMAX GS6-DM 6-pack distribution module 760102277 360 PATCHMAX GS3-DM 12-pack distribution module 760117382 760128215 360 PATCHMAX GS6-DM 12-pack distribution module 760199760 Spare termination manager kit WARNING –... - Page 4 860584432 www.commscope.com Instruction Sheet Step 2 – Module Termination T568 Wiring Pairs Entry holes Entry 1 2 3 4 5 6 7 8 8 7 6 5 holes Lock tab (2 places) Fold slots (4 places) Modular Jack IDC Connector...
- Page 5 860584432 Instruction Sheet Front Termination Procedure Page 5 of 12...
- Page 6 860584432 www.commscope.com Instruction Sheet 1. Preinstall rear cable manager as outlined in Step 3 and loosely secure the tie wraps so that cables can be pulled out and pushed in during front termination. 2. Depress four tabs on a 6-pack module (two tabs on a 12-pack module) and remove module from panel opening and rotate 180º...
- Page 7 860584432 Instruction Sheet Step 3 – Assemble and Install Rear Cable Manager 1. Attach the four cable troughs onto bar as shown and insert four hook-and-loop straps into slots in cable troughs. 2. Attach cable bar to rear of panel.
- Page 8 860584432 www.commscope.com Instruction Sheet Step 4 – Install Front Cord Management, Front Bezel, Labels and Label Covers 1. Position front cord management as shown and slide onto mounting arms until it is seated. 2. Position front bezel at an angle as shown and insert two bottom retention tabs into slots in cord management.
- Page 9 860584432 Instruction Sheet 4. Print the port designations on the white label cards provided. Slide labels and label covers into the label holders from either end. Each label holder will accommodate labels up to .265 inches (6.7mm) high x 3.50 inches (89mm) wide.
- Page 10 860584432 www.commscope.com Instruction Sheet Additional Front Termination Access Instructions 1. Remove two terminated or un-terminated modules (ports 1-6 and ports 7-12) from panel opening to free up space for new termination sequence. Leave modules out of panel. 2. Remove module to be terminated (ports 13-18) from panel, rotate 180° and temporarily reinstall in adjacent panel opening.
- Page 11 860584432 Instruction Sheet Patch Panel Termination Manager Instructions The termination managers provide pair positioning, control, Entry holes and strain relief features to the rear termination area of the Entry panel. See Figure 1. Instructions for using the termination holes manager are listed below.
- Page 12 860584432 www.commscope.com Instruction Sheet Snap Termination Manager onto Rear Housing Pairs (Figure 4) folded back 7. Snap assembled termination manager onto rear housing with pair colors in proper position. Push on using the termination manager housing, not by pushing with the cable. (Ensure that both lock tabs on manager fully seat into rear housing).
