K-WALL2L
Ver. 2.1
K-WALL2
USER GUIDE
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the K-WALL2 and is the answer not in the manual?

Questions and answers

Summary of Contents for array K K-WALL2

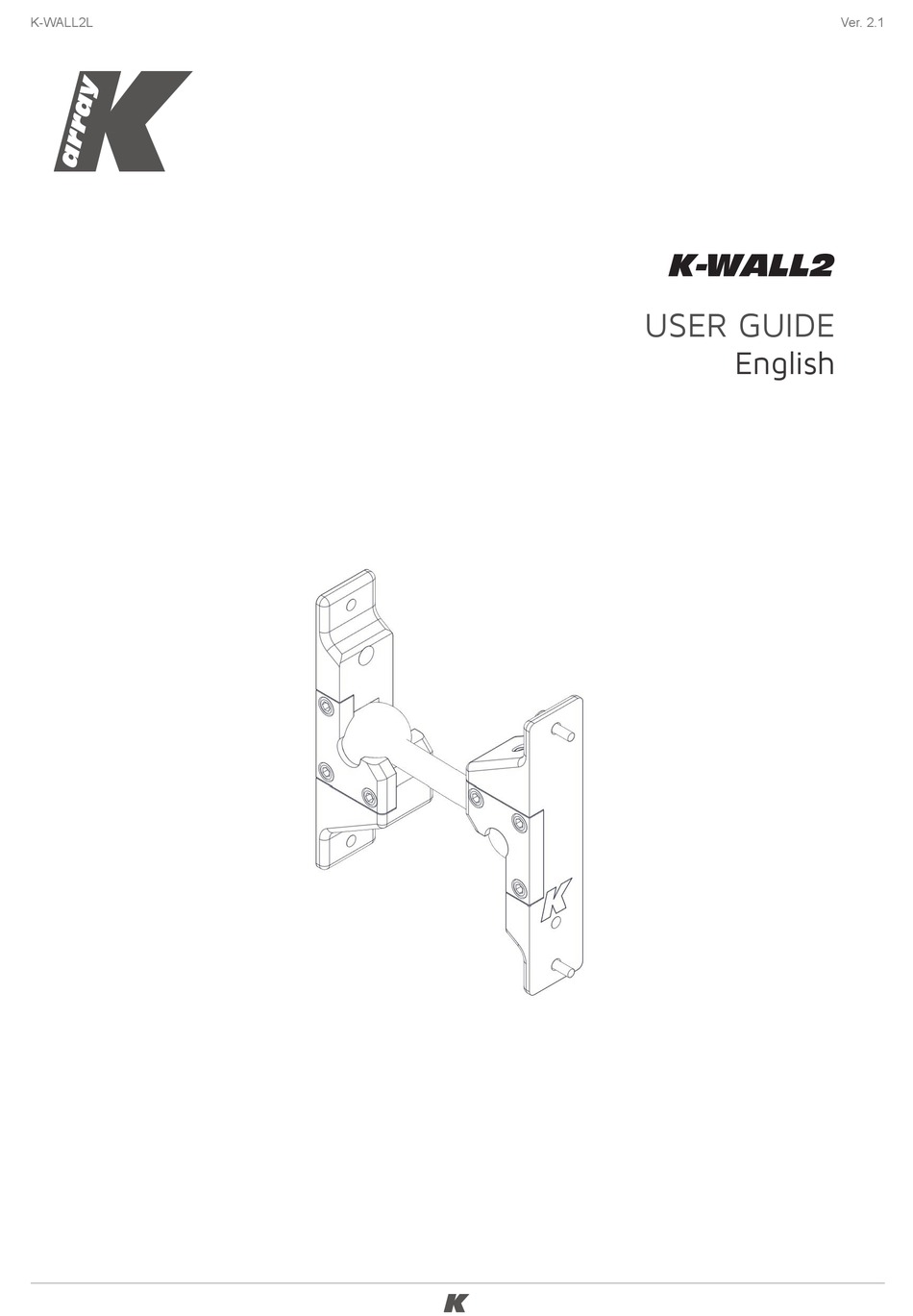

  • Page 1 K-WALL2L Ver. 2.1 K-WALL2 USER GUIDE English...

  • Page 2: Table Of Contents

    K-WALL2L Ver. 2.1 TABLE OF CONTENTS 1. K-WALL2 1.1 Packaging........................3 1.2 Safety Precautions......................3 2. PSYSICAL......................4 3. INTRODUCTION....................6 4. ASSEMBLY ...................... .6 4.1 Configuration Assemby....................6 5. WALL GUIDE TEMPLATE...................9 6.DECLARATION OF CONFORMITY..................10...

  • Page 3: Packaging

    K-WALL2L Ver. 2.1 1.1 PACKAGING Please verify the shipment for completeness and proper condition of the items. Description Q.ty Wall Bracket Speaker Bracket Support Rotation Pivot M5 x 12 Botton Head Hex Socket Screw M5 x 14 Botton Head Hex Socket Screw M8 x 35 Gub Screw 1.2 SAFETY PRECAUTIONS...

  • Page 4: Psysical

    K-WALL2L Ver. 2.1 2. PSYSICAL 100mm 22mm 121,8mm 140mm 140mm Weight: 0,6 kg (1,3 lb)
  • Page 5 K-WALL2L Ver. 2.1 40mm...

  • Page 6: Introduction

    Ver. 2.1 3. INTRODUCTION K-WALL2 are speccifically used for wall installations of K-array speakers, wich can be set in 3d direction (please check the speaker positions in the user manual). NOTE: The KK52 Speaker shown in these pages is use for illustrative purposes. Please refer to your speaker’s user guide for checking the fixing points and the available...
  • Page 7 K-WALL2L Ver. 2.1 1. Assembly speaker braked to K-array speaker make sure screw are tighened correctly as picture below.e K-array.
  • Page 8 K-WALL2L Ver. 2.1 2. Fix wall bracket and then insert speaker bracket. 1. Position the device as required by user, always check configurations in user manual.
  • Page 9 K-WALL2L Ver. 2.1 WARNING Before Installation, check configuration in the speaker manual on website www.K-array.com...

  • Page 10: Wall Guide Template

    K-WALL2L Ver. 2.1 5. WALL GUIDE TEMPLATE...

  • Page 11: Declaration Of Conformity

    K-WALL2L Ver. 2.1 6. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY Manufacturer/Importer: K-array s.u.r.l. Brand: K-ARRAY Address: via Paolina Romagnoli 17 50037 S. Piero a Sieve Firenze ITALY Date of Issue: 14 / 03 / 12 Model Code: K-KWALL2L Declaration: Complies with safety essential requirements of Council Directive 2006/42/EC on the approximation of the Laws of the Member States relating to lifting of groups of Cases.
