Summary of Contents for dentalfarm H8

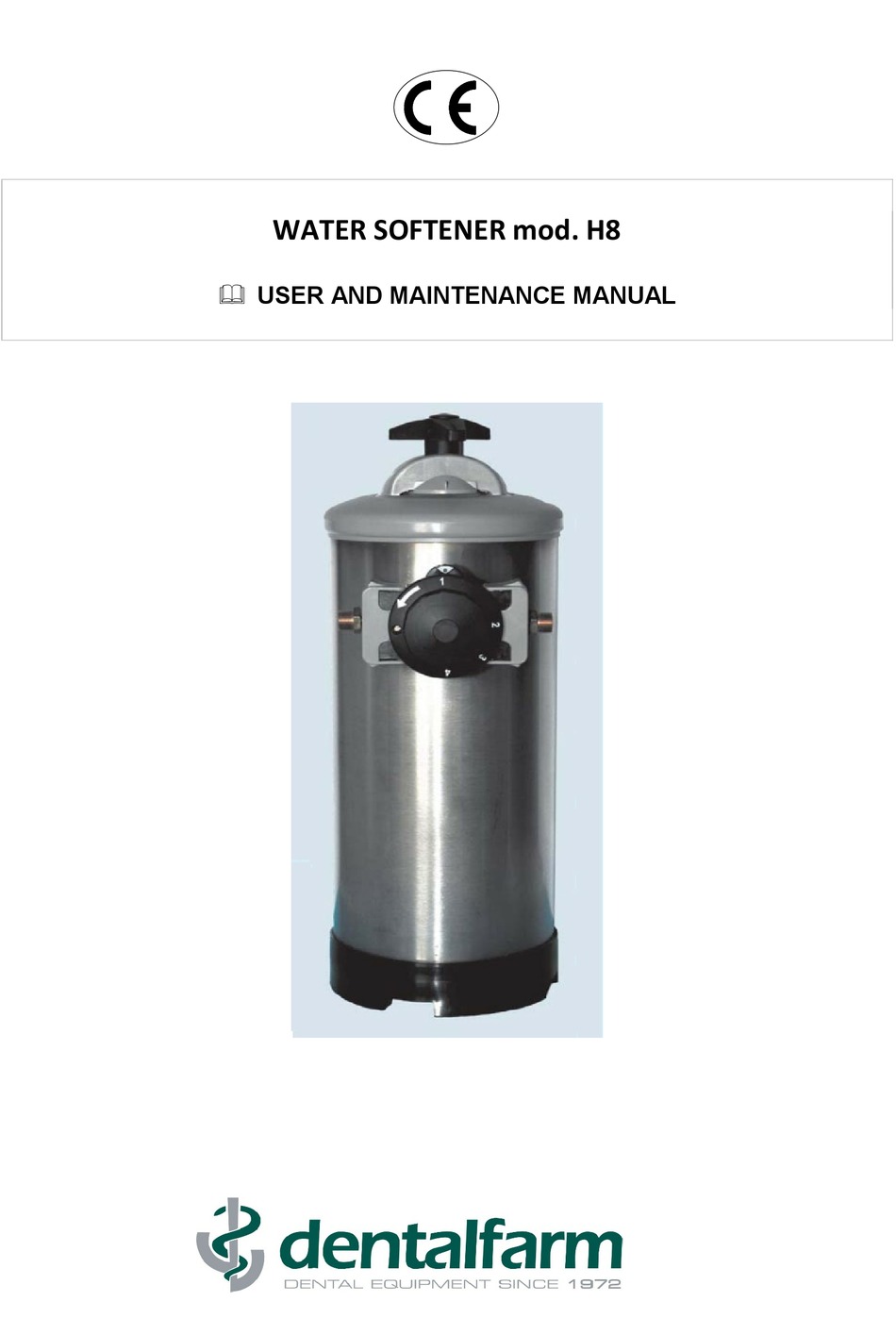

- Page 1 WATER SOFTENER mod. H8 USER AND MAINTENANCE MANUAL...
-
Page 2: Warnings For The User
INDEX 1. INTRODUCTION AND GENERAL INFORMATION 1.1 OBJECTIVE OF THE MANUAL 1.2 KEEPING THE MANUAL 1.3 EQUIPMENT IDENTIFICATION 1.4 DECLARATION OF COMPLIANCE 1.5 HYGIENIC SAFETY NORMS AND TiFQ TESTING 1.6 RECOMMENDATIONS AND WARNINGS 2. ABOUT THE EQUIPMENT 2.1 HOW DOES IT WORK? 2.2 EQUIPMENT DESCRIPTION 2.3 THE PACKAGING CONTAINS 2.4 TECHNICAL FEATURES... -
Page 3: Introduction And General Information
1. INTRODUCTION AND GENERAL INFORMATION 1.1 OBJECTIVE OF THE MANUAL This instruction manual is addressed to qualified personnel who must have knowledge of the health and safety rules of the place of installation. The objective of this manual is to give useful information and warnings, both to the installer and the user, regarding: HOW TO STORAGE AND KEEP THE EQUIPMENT BEFORE USE: •... -
Page 4: About The Equipment
1.6 RECOMMENDATIONS AND WARNINGS FOR THE STORAGE: • Store the water softener in a dry place • The temperature in the storage place must be between 0 and 35 °C • We recommend to use the equipment within 24 months FOR THE INSTALLER We suggest to install the equipment after carefully reading the instruction manual. -
Page 5: Installation
2.3 THE PACKAGING CONTAINS • 1 complete water softener IV • 1 instruction manual • 1 drain pipe • 2 joints for connection to the water sullpy network 2.4 TECHNICAL FEATURES Pressure of feed water: 0,1 ÷ 0,8 MPa (1 ÷ 8 bar) Nominal flow rate at 4 bar: 800 l/h Room temperature:... - Page 6 3.3 CONNECTION TO THE WATER NETWORK (pic. 2) The connection of the equipment to the water system must be done according to all applicable rules, following the instructions of the manufacturer and qualified personnel. During the installation use pipes, hoses, valves and components which comply with the applicable Italian rule on hygienic safety, the Ministerial Decree 174/2004.
-
Page 7: Periodic Regeneration
4.2 PERIODIC REGENERATION Position 2 (DEPRESSURIZATION MODE) - Turn the valve handle on number 2. Loosen the cover handle and wait until depressurization. - Remove the lid and add the required quantity of salt according to the model (1.0 kg) Cleaning Clean the lid and the seal from any salt residue. -
Page 8: Mixer Control
4.3 MIXER CONTROL The regulator (REG.) has a special screw. By gradually loosening the screw, the equipment leaves a residue of hard- ness in the exiting water. The more you loosen the screw, the more hardness it leaves. This operation must be performed with care. At the end of the operation, it is necessary to check the hardness levels. -
Page 9: Improper Use Of The Equipment
5.2 RESIN PRESERVATION AND ACTIVATION AFTER A LONG PERIOD OF INACTIVITY If the water softener is not to be used for more than 30 days, it is necessary to do a double regeneration first and then leave the water softener with the lid closed. We suggest avoiding a period of inactivity longer than 12 months. - Page 11 8- EXPLODED DRAWING AND SPARE-PART LIST Codice - Pos. Item Descrizione Description PROFILO COPRI SALDATURA WELDING COVER TAPPO PER MANOPOLA KNOB CAP MANOPOLA TAPPO IN NYLON NYLON CAP KNOB GUARNIZIONE TAPPO 72x7 TN CAP JOINT CORPO TAPPO IN PLASTICA + TIRANTE PLASTIC CAP BODY + STAY BOLT STAFFA TAPPO IN PLASTICA PLASTIC CAP CLAMP...
- Page 14 DENTALFARM s.r.l. Via Susa, 9/a - 10138 TORINO – ITALY COMMERCIAL SERVICE - (+39) 011/4346588 TECHNICAL SUPPORT - 011/4346632 FAX 011/ 4346366 E-mail: info@dentalfarm.it Web: www.dentalfarm.it...
