WinSystems PPC65BP-1 Series Product Manual

Ip65-compliant panel pc with intel atom e3800 processor and multi-touch pcap
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

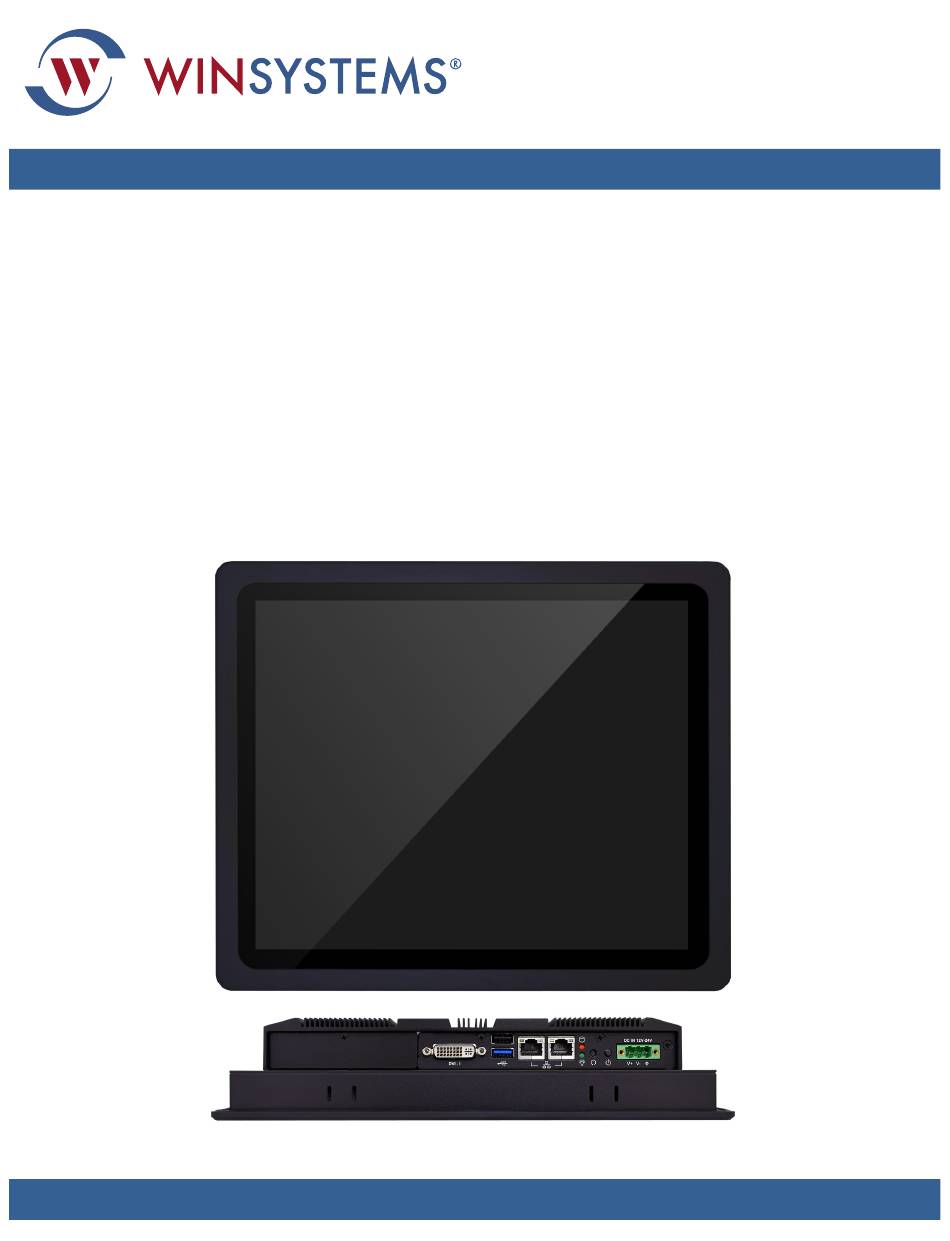

PPC65BP-1x
IP65-Compliant Panel PC with Intel
Atom
®
™
E3800 processor and Multi-Touch PCAP
Product Manual
WinSystems, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC65BP-1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for WinSystems PPC65BP-1 Series

Summary of Contents for WinSystems PPC65BP-1 Series

  • Page 1 PPC65BP-1x IP65-Compliant Panel PC with Intel Atom ® ™ E3800 processor and Multi-Touch PCAP Product Manual WinSystems, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com...
  • Page 2 Copyright 2020, WINSYSTEMS, Inc. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of WINSYSTEMS, Inc. The information in the document is subject to change without notice. The information furnished by WINSYSTEMS, Inc.

  • Page 3: Table Of Contents

    7.8 Power Up.............22 v1.0 www.winsystems.com Page 3...
  • Page 4 9.4 BIOS Screens ............39 v1.0 www.winsystems.com Page 4...
  • Page 5 Warranty Information ..........63 v1.0 www.winsystems.com Page 5...

  • Page 6: Before You Begin

    PPC65BP-1x. If you still have questions, contact Technical Support at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST). Refer to the WinSystems website for other accessories (including cable drawings and pinouts) that can be used with your PPC65BP-1x. Functionality...

  • Page 7: Features

    Product Manual or on our website at www.winsystems.com. NOTE WinSystems can provide custom configurations for Original Equipment Manufacturer (OEM) clients. For details, please contact an Application Engineer through Technical Support (see contact information in the Introduction section on page 6).
  • Page 8 1x line-out, 1x RS-232/422/485 (optional) – 1x line-out, 2x USB 2.0 (optional) Embedded Single Board Computer (SBC) • Single Board Computer • Intel E3845 series Atom processor – Core speed: 1.91 GHz – Number of cores: 4 v1.0 www.winsystems.com Page 8...

  • Page 9: General Operation

    The PPC65BP-1x has a built in a TFT-LCD display and designed with a 10- point Multi-Touch Projective Capacitive (PCAP) touch screen. 5.1.2 Aluminum Front Bezel Rugged aluminum front bezel meets IP65 protection. 5.1.3 Black Overlay The following figures illustrate the basic features of the PPC65BP-1x. v1.0 www.winsystems.com Page 9...

  • Page 10: Touch Screen External Control, Connector, And Indicator Locations

    Press the power button to turn ON/OFF the PPC65BP-1x. 5.2.2 Reset Button Press the reset button to restart the PPC65BP-1x. 5.2.3 Power LED and HDD LED The LEDs demonstrate the power status and HDD-working status of the PPC65BP-1x. v1.0 www.winsystems.com Page 10...
  • Page 11 Bottom view USB 2.0 USB 3.1 Gen 1 DVI-I Reset Gigabit Power Selectable I/O kit Ethernet button button HDD LED Power LED DC in 12-24V via 3-pin terminal block Top view 2.5” HDD/SDD cover Antenna hole v1.0 www.winsystems.com Page 11...

  • Page 12: Specifications

    PPC65BP-1x options. See the following table for specifics. Table 2: Specifications Identifier Option Screen dimension 10 = 10.4” 12 = 12.1” 15 = 15” 17 = 17” 19 = 19” Installed RAM 2 = 2G, 4 = 4G, 8 = 8G v1.0 www.winsystems.com Page 12...

  • Page 13: Specifications

    – Option 1 – 2 x RS-232/422/485, 1 x RS-232 (1x RS-232/422/485, 1 x Line-out for 10” model) – Option 2 – 1 x Line-out, 1 x RS-232/422/485, 2 x USB 2.0 (1 x Line-out, 2 x USB 2.0 for 10” model) v1.0 www.winsystems.com Page 13...

  • Page 14: Setup And Installation

    Installing the I/O Kit To install the I/O kit: 1. Remove power from the PPC65BP-1x. 2. Remove the screws securing the rear cover and remove the cover. 3. Push the I/O daughter board into J11. v1.0 www.winsystems.com Page 14...

  • Page 15: Installing Memory

    3. Insert memory module into J3 at an angle, and then press down so the memory is flat. 4. Reinstall the rear cover. Installing the Hard Drive (HDD/SDD) To install a hard drive: 1. Remove power from the PPC65BP-1x. v1.0 www.winsystems.com Page 15...

  • Page 16: Installing Compactflash And Secure Digital Cards

    Installing CompactFlash and Secure Digital cards NOTE Although both CompactFlash and Secure Digital (SD) memory cards can be used at the same time, the SD memory card cannot be used to start the Windows Operating System (OS). v1.0 www.winsystems.com Page 16...
  • Page 17 Eject a CompactFlash card by pressing the card eject button. – Eject a SD card by pressing it in until it clicks and then removing it. CompactFlash Card Installed SD Card Installed 4. Reinstall the CompactFlash slot cover. v1.0 www.winsystems.com Page 17...

  • Page 18: Connecting Power To J16

    The PPC65BP-1x provides edge connectors for common external connections, and also internal connections to components on the board (see “Touch Screen External Control, Connector, and Indicator Locations” on page 10). 1. Connect an Ethernet cable to Gigabit Ethernet (connects to J13/J14, as applicable). v1.0 www.winsystems.com Page 18...

  • Page 19: Mounting Method

    NOTE To protect the PPC65BP-1x from dust and water, mount the system on a non-textured surface. 7.7.1 Panel Mount To install the PPC65BP-1x using a panel mount: 1. Verify or cut-out installation site using the following cut-out dimensions. Refer to “Mechanical Drawings” on page 58 for model specific drawings. v1.0 www.winsystems.com Page 19...
  • Page 20 Dimension B is the minimum clearance behind the wall. Tolerance +/-1 mm. 2. Place the PPC65BP-1x in the cut-out and secure with the mounting kits. To secure, from the backside of the installation, hook a clip into each panel mount hole. v1.0 www.winsystems.com Page 20...

  • Page 21: Vesa Mount

    13.23 kgf-cm (11.483 pound-inch). 7.7.2 VESA Mount ® The PPC65BP-1x can be installed using a VESA 75x75/100x100 compliant adapter plate. Refer to the following figure for dimensions. VESA Mount 100 x 100 VESA Mount 75 x 75 v1.0 www.winsystems.com Page 21...

  • Page 22: Power Up

    PPC65BP-1x on and off or press and hold it to reset. Pressing the reset button also resets the unit. Installing Drivers To obtain drivers, see the WinSystems website at www.winsystems.com. 7.10 Watchdog Timer (WDT) The PPC65BP-1x features an advanced watchdog timer (WDT) that can be used to guard against software lockups.
  • Page 23 // delay 20 us IBF_status = inportb (EC_CMD); } while (IBF_status & 0x02); return 1; static int OBF_Check () unsigned char OBF_status; pw_udelay (20); // delay 20 us OBP_status = inportb (EC_CMD); } while (!(OBF_status & 0x01)); return 1; v1.0 www.winsystems.com Page 23...
  • Page 24 Write_EC ((b->wdt.ec.count_m_addr & 0xFF), b->wdt.ec.timeout); Write_EC ((b->wdt.ec.cfg_addr & 0xFF), 0x03); // WDTCFG[1:0]=11 int main () int i; EC_WDT_Trigger (); for (i = 0; i < 5; i++) printf ("Reset counter ....%d\n", 5 - i); delay (1000); return 0; v1.0 www.winsystems.com Page 24...

  • Page 25: Reset Cmos Bios Configuration

    8.1.1 Internal Components The following figures illustrate the location of each connector, jumper, and switch on the PPC65BP-1x main board (internal). Pin 1 of each connector or jumper is indicated by a red square in the figure. v1.0 www.winsystems.com Page 25...
  • Page 26 PPC65BP-1x/Configuration Top view JP14 JP11 JP12 JP10 JP13 Bottom view v1.0 www.winsystems.com Page 26...
  • Page 27 Secure digital card — Front panel connector (1 x 5 pin wafer/2 mm) page 32 page 32 Touch panel connector (1 x 5 pin header/2.54 mm) page 33 USB Port 3 connector (1 x 4 pin wafer/2 mm) v1.0 www.winsystems.com Page 27...

  • Page 28: Power

    J16 connector. See “Power Input Connector (J16)” on page 30. Connectors 8.3.1 DDR3 SO-DIMM Socket (J3) The PPC65BP-1x supports DDR3 DSRAM system memory, 1066 MHz or 1333 MHz, through this on-board SODIMM socket (204-pin). v1.0 www.winsystems.com Page 28...

  • Page 29: General Purpose I/O Pin Header (J8, 5 X 2 Pin Header)

    J14. There is one green LED (left) and one bi-color green/yellow LED (right). Activity Ethernet Status Left No link Flashing (green) Linked Right No link Linked at 10 MB On (yellow) Linked at 100 MB On (green) Linked at 1 GB v1.0 www.winsystems.com Page 29...

  • Page 30: Power Input Connector (J16)

    (3Px1/5.08 mm female). Caution Do not connect a power supply outside of the power specifications to this connector (J16). See “Specifications” on page 13. Layout and Pin Reference DC IN 12V-24V Description GND EARTH Vin- Vin+ v1.0 www.winsystems.com Page 30...

  • Page 31: Lcd Inverter Power Connector (J17, 1 X 5 Pin Wafer/2Mm)

    8.3.6 LCD LVDS Connector (J18, 2 x 15 Pin Hirose/1.25mm) Layout and Pin Reference Description Description YAP0 YAM0 YAP1 YAM1 YAP2 YAM2 YAP3 YAM3 CLKAP CLKAM YBP0 YBM0 YBP1 YBM1 YBP2 YBM2 YBP3 YBM3 CLKBP CLKBM DDCPCLK DDCPDATA +LVDS +LVDS +LVDS v1.0 www.winsystems.com Page 31...

  • Page 32: Front Panel Connector (J20, 1 X 5 Pin Wafer/2Mm)

    Description LED (Hi: Green LED +; Low: Orange LED -) LED (Hi: Orange LED+; Low: Green LED-) Power button Power button 8.3.8 Touch Panel Connector (J21, 1 x Pin Header/2.54mm) Layout and Pin Reference Description Probe v1.0 www.winsystems.com Page 32...

  • Page 33: Usb Port 3 Connector (J22, 1 X 4 Pin Wafer/2Mm)

    The following table contains descriptions of the signal setup for different jumpers installed. Layout and Pin Reference Jumper Description +5 V high active (default) +12 V high active +5 V low active +12 V low active v1.0 www.winsystems.com Page 33...

  • Page 34: Lcd Panel Voltage Setup (Jp3)

    CCFL LCD brightness limit LED LCD brightness limit 8.3.14 GPIO Power Selection (JP7) This jumper configures the on-board programmable 8-bit Digital I/O interface. Layout and Pin Reference Jumper Description 5 V level (default) 3.3 V level v1.0 www.winsystems.com Page 34...

  • Page 35: Internal Audio Connector (Jp8, 4 X 1 Pin Header)

    Audio_L+ Audio_L- Additional Information This connection is a JST B4B-PH-K-S(LF)(SN). Mating Connector: JST PHR-4 8.3.16 LPC Debug Port Pin Assignment (JP9) Layout and Pin Reference Description Description LAD0 3.3 V LAD1 LPC_RESET LAD2 LPC_FRAME LAD3 LPC_CLOCK v1.0 www.winsystems.com Page 35...

  • Page 36: Com2 Pin 9 Function Setup (Jp10)

    Layout and Pin Reference Jumper Description +5 V output RI function (default) +12 V output 8.3.19 COM4 Pin 9 Function Setup (JP12) Layout and Pin Reference Jumper Description +5 V output RI function (default) +12 V output v1.0 www.winsystems.com Page 36...

  • Page 37: Com3 Pin 9 Function Setup (Jp13)

    Single 1440 x 900 (24-bit) Dual 1400 x 1050 (24-bit) Dual 1600 x 900 (24-bit) Dual 1680 x 1050 (24-bit) Dual 1600 x 1200 (24-bit) Dual 1920 x 1080 (24-bit) Dual 1920 x 1200 (24-bit) Dual v1.0 www.winsystems.com Page 37...

  • Page 38: At/Atx & Bios Recovery Setup (Sw2)

    This key (Delete or Del) must be pressed when either the splash screen is displayed (during the system power-on self test, POST) or when the Press <Del> to enter SETUP message is displayed. It may take a few seconds before the main setup menu screen is displayed. v1.0 www.winsystems.com Page 38...

  • Page 39: Navigating The Menus

    See “BIOS Screens” on page 39 for available options. BIOS Screens The following BIOS screens contain the options and sample settings for the PPC65BP-1x. Your actual configuration may differ from the screens shown here. NOTE Use care when modifying BIOS settings. v1.0 www.winsystems.com Page 39...
  • Page 40 Enter key until the desired value is highlighted with a square block. Use the +/- keys to change the highlighted value. v1.0 www.winsystems.com Page 40...
  • Page 41 Vander pool Technology. Choices: Disabled, Enabled (default). EIST Enables/disables Intel Speed Step. Choices: Disabled, Enabled (default). CPU C6 report Enables/disables the CPU C6 (ACPI C3) report to the operating system (OS). Choices: Disabled (default), Enabled. v1.0 www.winsystems.com Page 41...
  • Page 42 Rom, [Enabled] Force Launch Rom. Choices: Disabled (default), Enabled. Wake on LAN Controller Enables/disables Intel LAN 0 and Intel LAN 1 WGI210AT wakeup function. Choices: Disabled, Enabled (default). Graphics Configuration Use the Graphics Configuration screen to configure the following onboard graphics features. v1.0 www.winsystems.com Page 42...
  • Page 43 Backlight control setting. Choices: PWM Inverted, PWM Normal (default), GMBus Inverted, GMBus Normal. Active LFP Selects the Active LEP Configuration. No LVDS: VBIOS does not enable LVDS. eDP Port-A: LFP driven by Int-DisplayPort encoder from Port-A. Choices: No LVDS, eDP Port-A (default). v1.0 www.winsystems.com Page 43...
  • Page 44 Use the SATA Configuration screen to configure the SATA device options. Serial-ATA (SATA) Enables/disables the Serial ATA. Choices: Disabled, Enabled (default). SATA Mode Sets SATA mode as IDE or AHCI or disables. Choices: Disabled, IDE, AHCI (default). v1.0 www.winsystems.com Page 44...
  • Page 45 Enable/Disable USB Mass Storage Driver Support. Choices: Enabled (default), Disabled. USB Configuration Use the USB configuration screen to configure specific USB device settings. XHCI Mode Mode of operation of XHCI controller. Choices: Smart Auto (default), Auto, Enable, Disable. v1.0 www.winsystems.com Page 45...
  • Page 46 Select the highest ACPI sleep state the system enters when the SUSPEND button is pressed. Choices: Suspend Disable, S3 (Suspend to RAM) (default) Restore AC Ring Loss Select AC Power state when power is re-applied after a power failure. Choices: Power Off, Power On, Last State (default). v1.0 www.winsystems.com Page 46...
  • Page 47 Enable or Disable Serial Port (COM) IO=2F8H; IRQ=3. Choices: Disabled, Enabled (default). Interface Set present UART mode RS232, RS485, RS485/RS422. Choices: RS232(default), RS485 HALF DUPLEX, RS485/422 FULL DUPLEX. Termination Control Set Termination Control to Disabled/Enabled. Choices: Disabled, Enabled (default). v1.0 www.winsystems.com Page 47...
  • Page 48 Select Timer count unit of WDT. Choices: Seconds (default), Minutes. Timer value (Watch Dog Timer Enabled) Set WDT Timer value in seconds/minutes. Choices: Default [20]. Health Status (hardware monitor) Use the Health Status screen to set the monitor the hardware status. v1.0 www.winsystems.com Page 48...
  • Page 49 Use the Security Status screen to set passwords. Password Check Mode [Setup] check password when enter setup screen, [Power On] check password every time the system powers on. Choices: Setup (default), Power On. Administrator Password Set Administrator Password. User Password Set User Password. v1.0 www.winsystems.com Page 49...
  • Page 50 Select the keyboard NumLock state. Choices: On (default), Off. Post Report Post Report Support Enabled/Disabled. Choices: Disabled (default), Enabled. Summary Screen Summary Screen Support Enabled/Disabled. Choices: Disabled (default), Enabled. CSM Support Enabled/Disabled CSM Support. Choices: Disabled, Enabled (default). v1.0 www.winsystems.com Page 50...
  • Page 51 Enables or Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. Choices: Disable (default), Enabled. Boot Option #1 Sets the system boot order. Choices: UEFI: Built-in EFI Shell, Disabled. v1.0 www.winsystems.com Page 51...
  • Page 52 PPC65BP-1x/BIOS Settings Save and Exit Use the Save & Exit screen to save changes, discard changes, restore defaults, and other similar commands as listed. v1.0 www.winsystems.com Page 52...

  • Page 53: Frequently Asked Questions

    By configuring SW2 port 1 and restarting the system, you can configure the system as AT mode. See “AT/ ATX & BIOS Recovery Setup (SW2)” on page 38. The illustration below shows AT mode settings 1-4 ON, and 2-3 OFF. v1.0 www.winsystems.com Page 53...

  • Page 54: Troubleshooting

    Clear CMOS Function hardware circuit, by placing or removing the jumper from JP1. To reset the BIOS CMOS configuration to the factory default settings: 1. Remove power from the PPC65BP-1x. 2. Find JP1. 3. Remove jumpers from pins 1-2. v1.0 www.winsystems.com Page 54...

  • Page 55: Update Bios

    8. Press <Del> to open the BIOS setup menu and select Restore Defaults. 9. To finish the update, select the Save Changes and Reset Changes option. 12. Cables and Software Drivers Go to www.winsystems.com for cable information and software drivers. v1.0 www.winsystems.com Page 55...

  • Page 56: Best Practices

    I/O Connections OFF—I/O Connections should also be off before connecting them to the embedded computer modules or any I/O cards. Connecting hot signals can cause damage whether the embedded system is powered or not. v1.0 www.winsystems.com Page 56...
  • Page 57 Contact an Applications Engineer—If a diagram or chart in a manual does not seem to match your board, or if you have additional questions, contact a WinSystems Applications Engineer at: +1-817-274-7553. v1.0 www.winsystems.com Page 57...

  • Page 58: Mechanical Drawings

    PPC65BP-1x/ Appendix B. Mechanical Drawings PPC65BP-10 Dimensions v1.0 www.winsystems.com Page 58...
  • Page 59 PPC65BP-1x/ PPC65BP-12 Dimensions v1.0 www.winsystems.com Page 59...
  • Page 60 PPC65BP-1x/ PPC65BP-15 Dimensions v1.0 www.winsystems.com Page 60...
  • Page 61 PPC65BP-1x/ PPC65BP-17 Dimensions v1.0 www.winsystems.com Page 61...
  • Page 62 PPC65BP-1x/ PPC65BP-19 Dimensions v1.0 www.winsystems.com Page 62...

  • Page 63: Warranty Information

    Customer for the purchase of Products or licensing of Software hereunder. In the event this Order is placed in the hands of an attorney or collection agency by WinSystems to collect any sums due hereunder to WinSystems, Customer shall pay all reasonable attorney's fees, expenses, collection and court costs incurred by WinSystems.
