Accuride 3307 Quick Start Manual

APPLICATIONS: EIA rack mount chassis, power supply, disc/tape
drive, industrial work stations, dispensing and medical equipment.
Use model 3307 whenever a medium duty, over travel slide with
positive lock-out is required.
.50
[12.7]
2.00
[50.8]
INCHES
[mm]
Finish Bright electro-zinc (C) plating only
12"–30" [305 mm–762 mm]
Length
Height 2.00" [50.8 mm]
See Chart*
Load
Side Space .50" +.015/-.000 [12.7 mm +0.4/-0.0]
Travel Slide length plus 1.00" [25.4 mm]
Part
Number
3307-12
3307-14
3307-16
3307-18
3307-20
3307-22
3307-24
3307-26
3307-28
3307-30
* Load rating based on an 16" wide chassis cycled 10,000 times.
Slide Travel
4.88
[123.8]
.50 [12.7]
.39 [9.9]
A
B
C
D
E
Slide Length Minus .24 [6.1]
Slide
Slide Load Rating
Travel lbs [kg] per pair
Length
12.00 13.00
150 [68]
[305] [330]
14.00 15.00
148 [67]
[356] [381]
16.00 17.00
147 [67]
[406] [432]
18.00 19.00
146 [66]
[457] [483]
20.00 21.00
145 [66]
[508] [533]
22.00 23.00
140 [64]
[559] [584]
24.00 25.00
135 [61]
[610] [635]
26.00 27.00
127 [58]
[660] [686]
28.00 29.00
120 [54]
[711] [737]
30.00 31.00
112 [51]
[762] [787]
.63
[16.0] REF.
.24
[6.1] REF.
.63
[16.0]
Access
Slot
TYP. 2.00
.180 x .210
[50.8]
[4.6 x 5.3]
TYP.

Mounting

Bracket or hard mounting

Hardware

#8 pan head screws

Disconnect

Front disconnect lever

Features

Lock-out holds chassis fully open. Lead-in pins
guide chassis during reinsertion.
A B
[235.0]
11.25
[285.8]
13.25
[336.6]
7.00 12.38 15.25
[177.8] [314.3] [387.4]
8.00 14.38 17.25
[203.2] [365.1] [438.2]
9.00 16.38 19.25
[228.6] [415.9] [489.0]
10.00 18.38 21.25
[254.0] [466.7] [539.8]
11.00 20.38 23.25
[279.4] [517.5] [590.6]
12.00 22.38 25.25
[304.8] [568.3] [641.4]
13.00 24.38 27.25
[330.2] [619.3] [692.2]

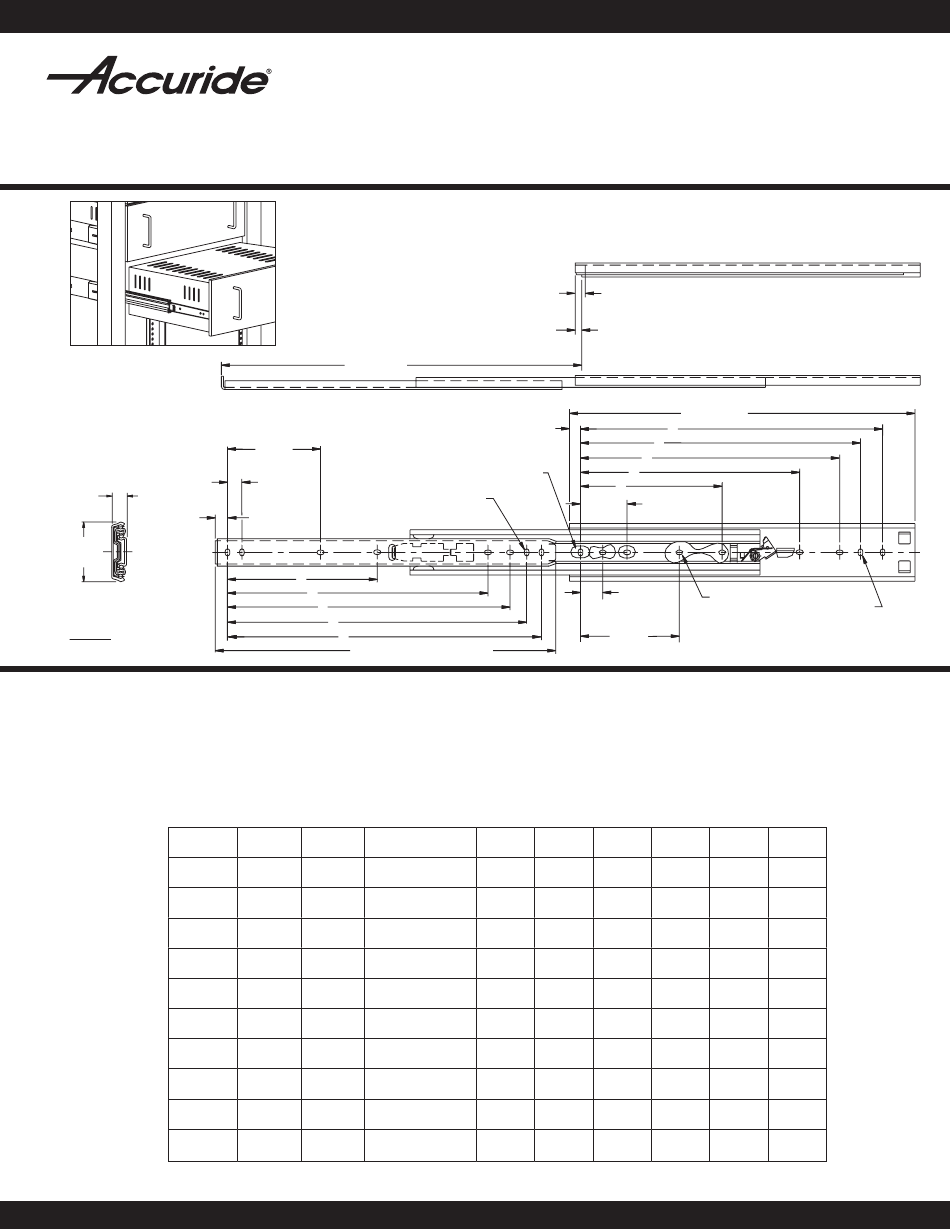

Lock-Out with Front Disconnect
Over Travel, Medium Duty Slide
Up to 150 lb.* [68 kg.] Capacity
To First Mounting Hole
On Drawer Member
Slide Length
E
C
F
B
A
1.10
Not Available
[27.9]
on 3307-12
4.88
[123.8]
C D E
9.25 9.75 10.25 8.25
[247.7] [260.4] [209.6]
11.75 12.25 10.25
[298.5] [311.2] [260.4]
13.75 14.25 12.25
[349.3] [362.0] [311.2]
15.75 16.25 14.25
[400.1] [412.8] [362.0]
17.75 18.25 16.25
[450.9] [463.6] [412.8]
19.75 20.25 18.25
[501.7] [514.4] [463.6]
21.75 22.25 20.25
[552.5] [565.2] [514.4]
23.75 24.25 22.25
[603.3] [616.0] [565.2]
25.75 26.25 24.25
[654.1] [666.8] [616.0]
27.75 28.25 26.25
[704.9] [717.6] [666.8]
MODEL 3307
.180 x .210
[4.6 x 5.3]
TYP.
F
