Integrated Technical Vision iPR-A2RS Series User Manual

iPR-A2RSx, iPR-A2W2x, iPR-A2W3x, iPR-A2W4x, iPR-A2WSx, iPR-A2TMx

Introduction

The proximity reader PR-x06 is intended to
be applied in different access control sys-
tems, using RS232, Wiegand 26, Wiegand
37, Wiegand 42, Wiegand with automatic
choice or TouchMemory interface.
The interface type is to be changed by spe-
cial PC programm. If you need to change the
interface type please call your distributor.

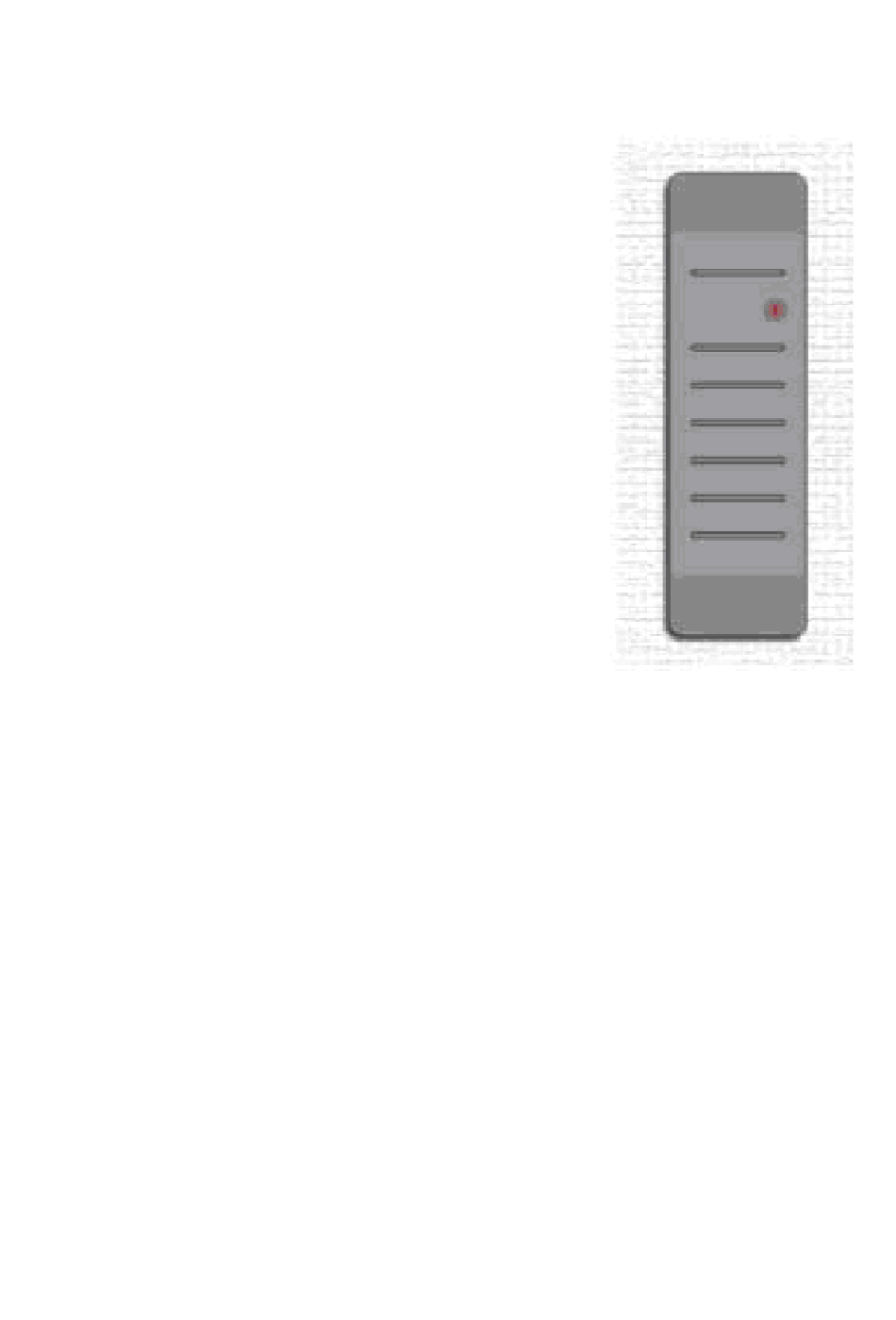

The reader is placed in elegant plastic case
with two colour LED indicator on front panel.

Types of cards

Integrated Technical Vision ltd manufacturies
readers operating with amplitude modulation
(ASK) proximity cards and tags.

Benefits

Case
Material
Dimensions
Weight
Ambient Conditions
Oper. temp.
Stor. temp.
Humidity
Electrycal
Voltage
Current
Max current
Voltage ripple
Distance of reading
Typical reading distance is 120 mm and depends on tag type used with
it. This parameter is valid for power supply voltage range from +8 to +18
VDC and ripple up to 150 mV
http://www.itvsystems.com.ua
Proximity reader
user manual
ABS plastic
150 х 45 х 22 mm
50 g
-35 С ... +55
0
-30 С ... +80
0
95% rel. at +25
+8. . . +18 VDC
up to 50 mA
up to 80 mA
up to 500 mV
.
p-p
С;
0
С;
0
C
0
.
p-p
Integrated Technical Vision Ltd
1
