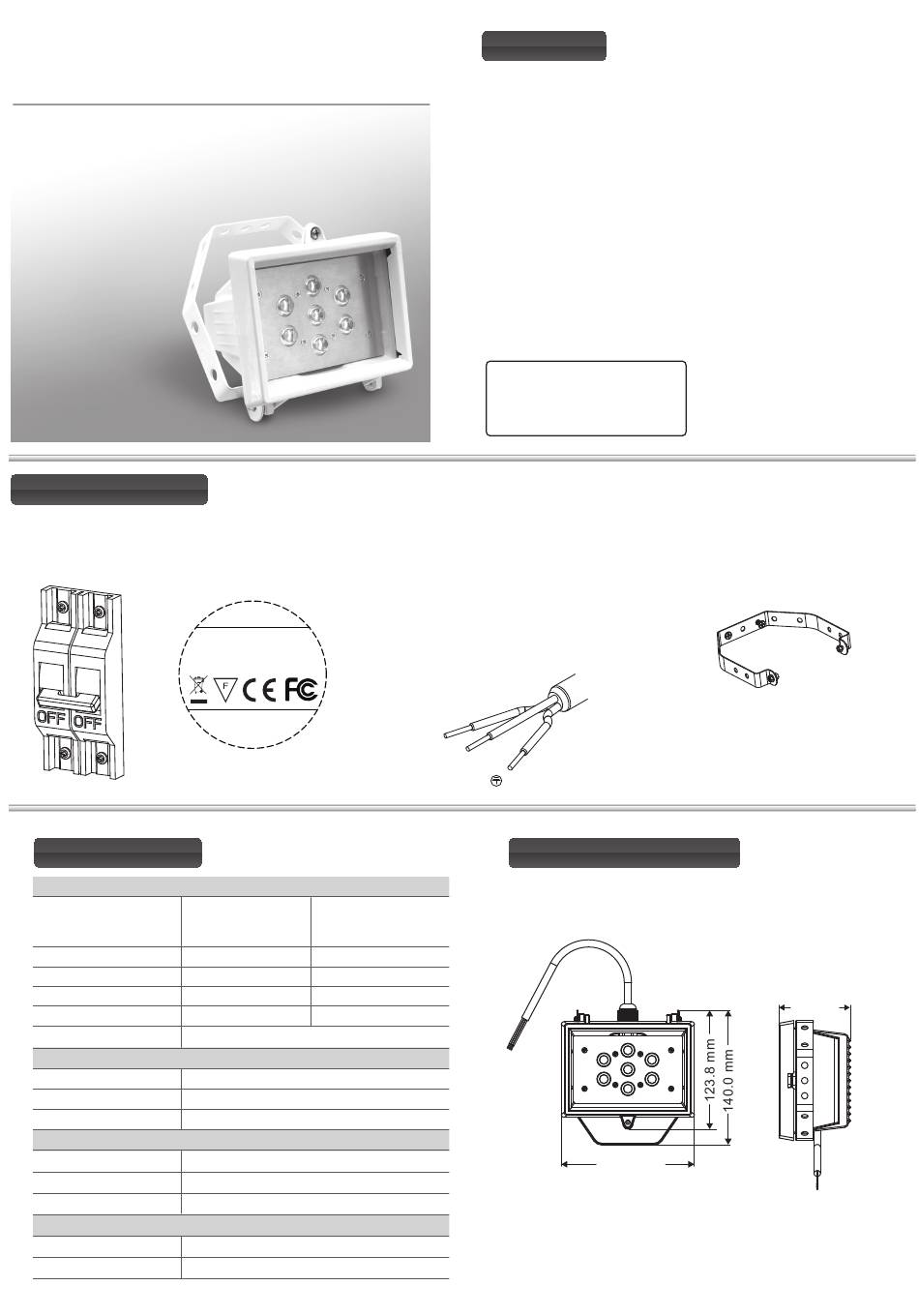

GlacialTech GL-SP07 Series User Manual

GL-SP07
Users' Manual
Thank you for choosing the GL-SP07 series LED products. Please
install and use the products according to the following directions to
ensure the normal function and proper operation of the products. If
not to follow these instructions to properly install and normally
use the products, you will not get the warranty-committed
compensation or
protection. GlacialLight
will not take any
responsibility for any
product damage caused
by improper installation or
abnormal usage.

Installation Steps

1. Before installation, please 2. Please make sure that both the
turn off the power switch
for the existing lamp.
100V-240V~ 50-60Hz 10W IP64
Specifications

Optical

Model No.
CCT (Typical)
Luminous Flux (lm)
Typical Luminous Efficacy
CRI (Ra)
Beam Angle

Mechanical and Dimension

Outline Dim.
Net. Weight
Cover

Electrical

Typical Power consumption
Power Factor
Input Voltage

Temperature Condition

Operating Temperature
Storage Temperature
Installation procedure should be undertaken by qualified technical personnel.
AC voltage source and the
power connector are
compatible with the GL-SP07
series LED products.
GL-SP07
GL-SP07-WW
GL-SP07-CW
(Warm White)
(Cool White)
3000 K 6000 K
350 lm 500 lm
30 lm / W 45 lm / W
> 80 > 75
30° / 60° (Optional)
140 × 140 × 85 (mm)
0.60 (Kgs)
Clear
10 W
> 0.9 for 115V AC; > 0.8 for 230V AC
100 – 240V AC
-20 °C － +40 °C
-40 °C － +85 °C
CAUTIONS
1. The warranty period will last for two years since you buy the products. If the
product fails or malfunctions under the proper installation and normal usage
within the warranty period, please send it back to our company with our RMA
approval or contact your local distributors for free repairing or replacing services.
2. Please do not add/remove any electrical components to/from the
products or change/tamper the original electrical design without our permission.
3. Please do not add/remove any mechanical components to/from
the products or change/tamper the original mechanical design without our
permission.
4. lease store or use the products in an environment meeting the
temperature and humidity conditions designated by the product specifications.
Please do not uncover the GL-SP07 series LED products, lest waterproof and
dustproof become invalid.
5. To avoid any electrical shock or functional damage, please do not
insert any foreign objects into the products.
6. For further information, please contact us.
CLASS 2 LED LIGHT
Do not stare at the beam.
3. The GL-SP07 series LED products feed only on an AC
voltage source having an appropriate output voltage
designated by the product specifications. Please
connect respectively the Brown, Blue, and
Green/yellow wires/terminals at the rear side of the
GL-SP07 series LED products to the Line (L), Neutral
(N), and Frame Ground (FG) wires/terminals of the AC
voltage source. It depends on the model in use that the
Brown, Blue, and Green/Yellow wires may be not
screwed or screwed internally onto a terminal block.
Misusing an inappropriate voltage source may lead to
product damage.
(L) Brown
(N) Blue
Green / Yellow
GL-SP07 Outlook
CAUTION
4. Please insulate properly the wires/terminals
of the AC voltage source, screw tightly the
GL-SP07 series LED products onto a wall
or a stand, and adjust freely the lighting
angle in accordance with individual needs.
5. Please turn on the AC voltage source to
check whether the GL-SP07 series LED
products can work normally. If not, please
check carefully whether all the above
installation steps are taken and usage
conditions are met.
140.0 mm
85.0 mm
