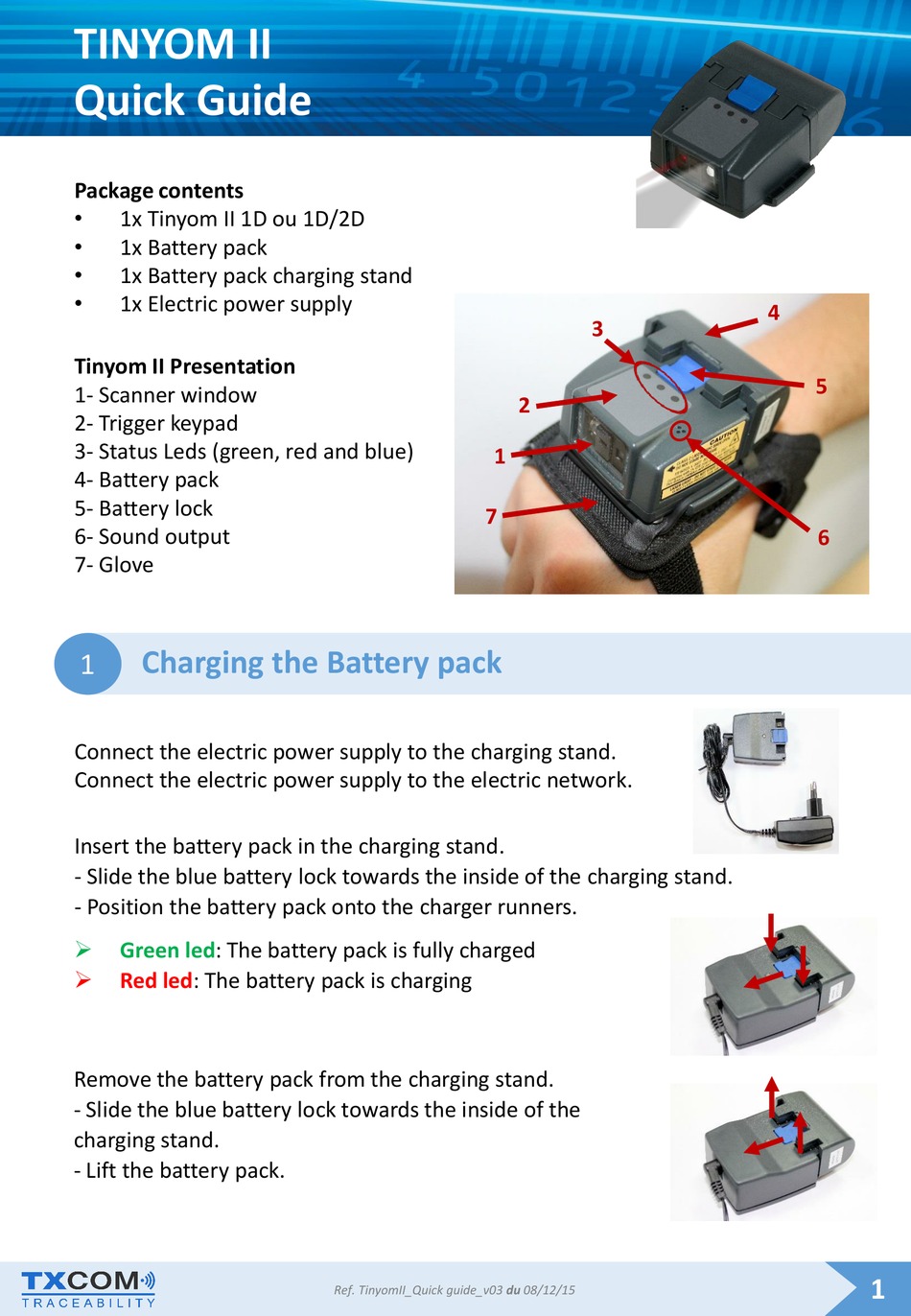

TINYOM II
Quick Guide
Package contents
•
1x Tinyom II 1D ou 1D/2D
•
1x Battery pack
•
1x Battery pack charging stand
•
1x Electric power supply
Tinyom II Presentation
1- Scanner window
2- Trigger keypad
3- Status Leds (green, red and blue)
4- Battery pack
5- Battery lock
6- Sound output
7- Glove
Charging the Battery pack
1
Connect the electric power supply to the charging stand.
Connect the electric power supply to the electric network.
Insert the battery pack in the charging stand.
- Slide the blue battery lock towards the inside of the charging stand.
- Position the battery pack onto the charger runners.
Green
led: The battery pack is fully charged
Red
led: The battery pack is charging
Remove the battery pack from the charging stand.
- Slide the blue battery lock towards the inside of the
charging stand.
- Lift the battery pack.
1
7
Ref. TinyomII_Quick guide_v03 du 08/12/15
3
2
4
5
6
1
Advertisement
Table of Contents
Related Manuals for TXCOM TRACEABILITY Tinyom II
Summary of Contents for TXCOM TRACEABILITY Tinyom II
- Page 1 TINYOM II Quick Guide Package contents • 1x Tinyom II 1D ou 1D/2D • 1x Battery pack • 1x Battery pack charging stand • 1x Electric power supply Tinyom II Presentation 1- Scanner window 2- Trigger keypad 3- Status Leds (green, red and blue)
- Page 2 Position the TINYOM II on the glove Lift the side rubbers and slide them onto the Tinyom II « ears ». Insert and remove the battery pack from Tinyom II Insert the battery pack in the Tinyom II - Slide the lock towards the keypad of the Tinyom II.
- Page 3 Press with a finger or any Tilt up by +30° in a stable position, green led part of the body. + buzzer will activate, then aim the barcode. Information when barcode reading Tinyom II status Red led Green led Blue led Buzzer...
- Page 4 ON constantly. SPP Slave connection - Set the default settings (see end of doc). On a PC, tablet, smartphone do a Bluetooth device research and pair the Tinyom II. Tinyom II is named SW61B-xxxxxxxxxxx. - Write the pin code «...
