Observint B5 Quick Installation Manual

B5 5MP HD-TVI PIR Bullet Camera
Quick Installation Guide
The B5 HD-TVI bullet cameras include a high sensitivity sensor with the ability to send HD video across
standard coaxial cable. The PIR feature provides wide angle motion detection up to 23 feet away. This
camera features:
5 MP Megapixel High Performance CMOS 2592 (H) × 1944 (V)
•
IR with 65' IR range
•
2.8 mm lens with an 102.94˚ field of view
•
-22° ~ +131°F temperature range
•
PIR detection range 23 feet with 120° detection angle
•
Compatible with R4, R8 and R16 Digital Video Recorders
•
Can be installed with optional junction box.
•

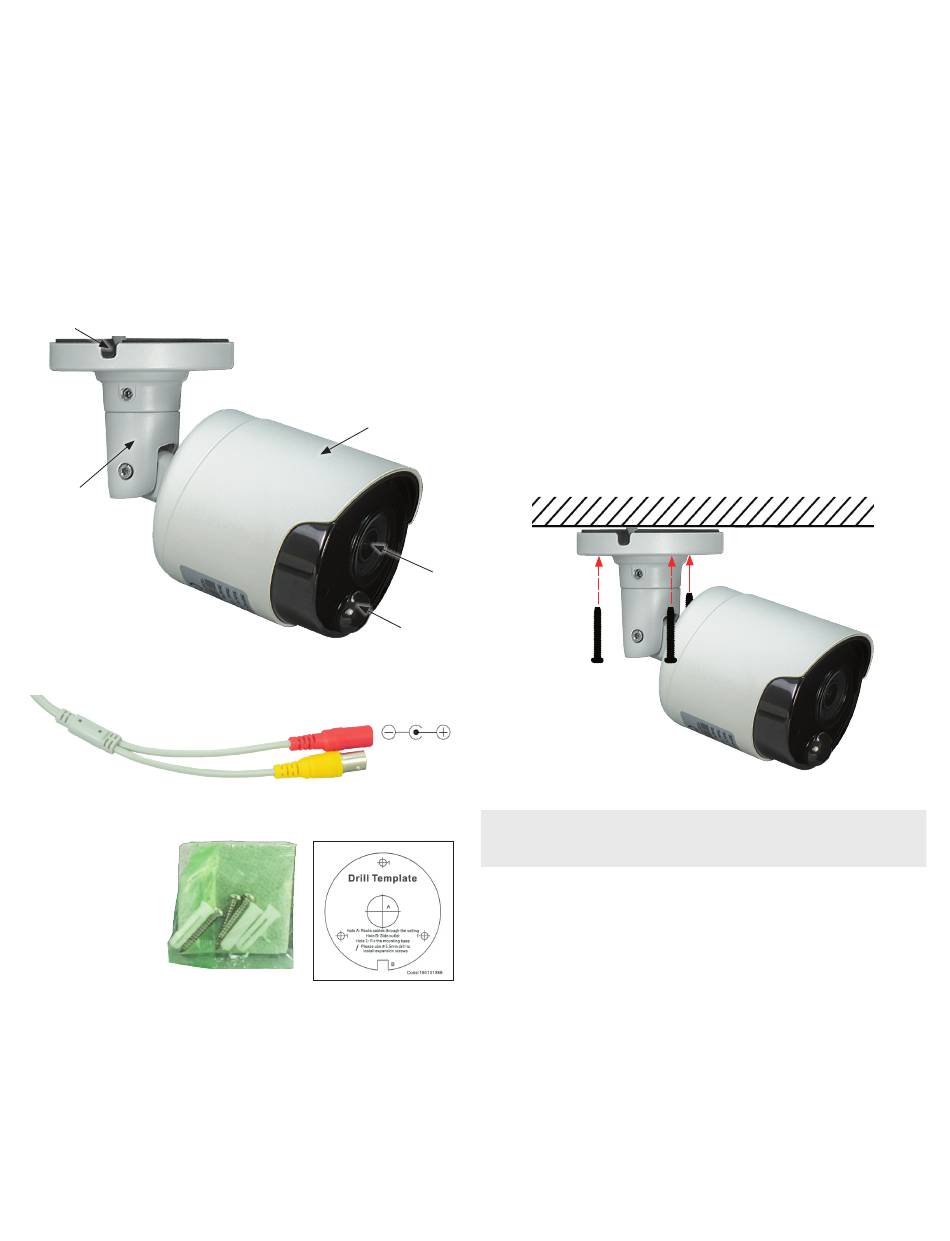

Cable channel
Adjustable
mounting
bracket
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Drill template
•
This instruction guide
•
What you need
To install the camera, you will need:
12 Vdc power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cable
•
Compatible Digital Video Recorder or HD-TVI video setup monitor (optional)
•
www.observint.com
1
Mounting base
Camera body
B5 camera
Power Connector
HD-TVI video
BNC connector
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to an HD-TVI compatible recorder.
Power connector: When applying power, observe the power polarity. See the picture to the
—
left for the connector polarity configuration.
Mounting the camera
A B5 camera can be mounted directly to a wall or ceiling, or with a junction box. The surface should
support at least three times the weight of the camera and junction box (if used). The video/power drop
cable from the camera can be routed either through mounting surface or through a cable channel in the
mounting base.
Mounting the camera directly to a wall or ceiling without the optional junction box
•
Lens
PIR sensor
If mounting the camera on a wall, ensure that the cable channel in the mounting base is down.
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
1. Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3. If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the drill
template.
4. Route the drop cable through the hole in the mounting surface, or through the cable channel in the
mounting base, then attach the camera assembly to the surface using the appropriate fasteners.
5. Connect the camera drop cable to video and power extension cables as required.
6. Connect the other end of the video extension cable to an HD-TVI compatible video monitoring
device (DVR) digital video recorder such as the R4, R8 or R16 recorder.
Cleaning
Typical ceiling mounting
section.
