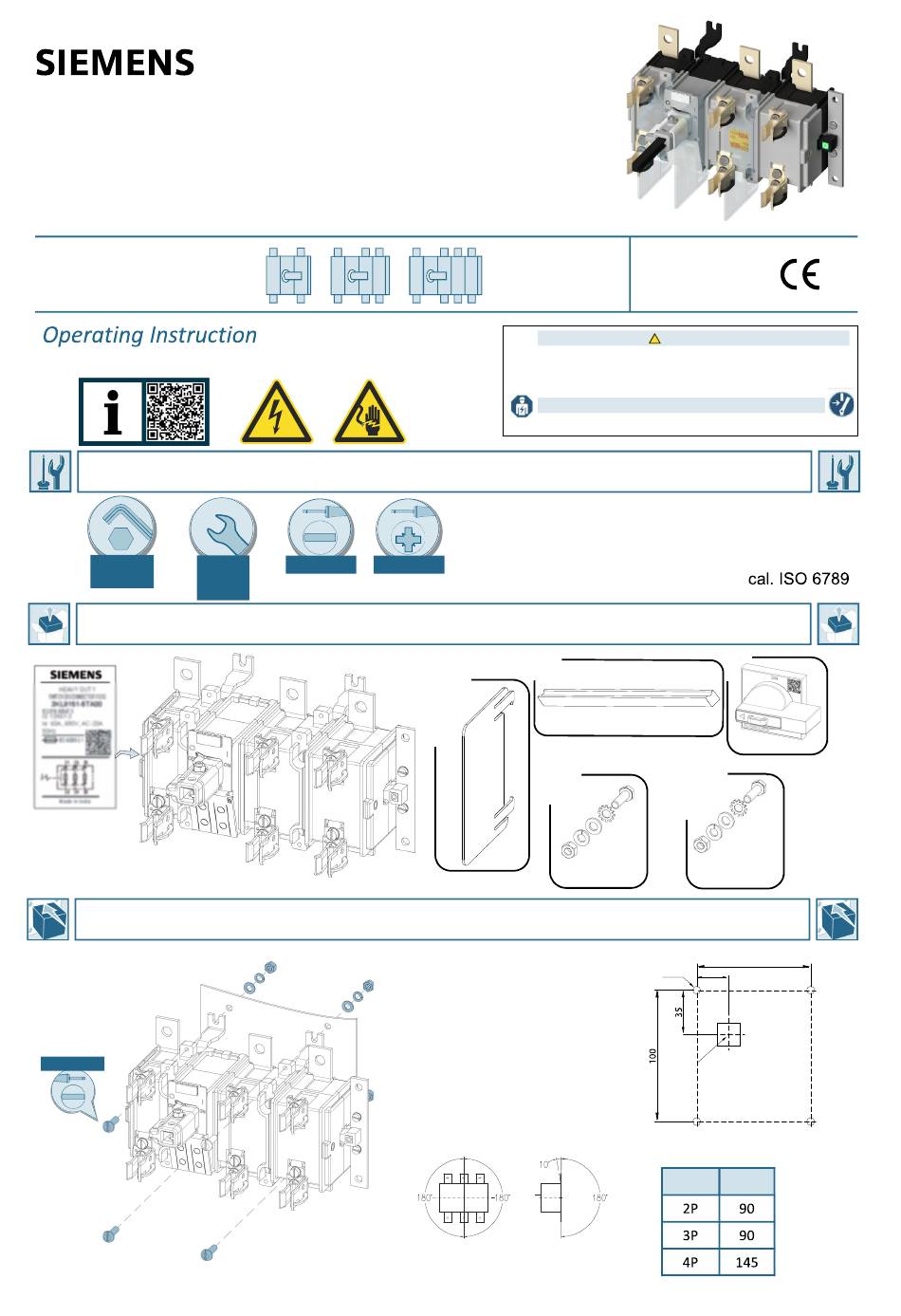

SENTRON SUPERSWITCH
Switch Disconnector Fuse - Size 2
3KL82...-.. (100A-160A)
3KA82...-.. (100A-160A)
Required tools
2.5 mm
5.0 mm
Contents
Assembly
Mounting Details:
0.5 x 3 mm
8 mm
0.5 x 3 mm
10 mm
13 mm
EN
Hazardous voltage will cause death or serious injury. Turn off and
lock out all power supplying this device before working on this device.
Replace all covers before power supplying this device is turned on.
Installation & Maintenace must be carried out by qualified personnel.
PZ 4
1x
2P: 2x
3P: 3x
4P: 4x
2x
For 3KL8
2P/3P/4P : M5 x 20 (4x)
Torque 1.5....2.1 Nm
(Not in scope of supply)
Permissible mounting position
IEC 60947-1
IEC 60947-3
DANGER
!
NOTICE
1x
2P: 4x
3P: 6x
4P: 8x
3K.82..-5
3K.821..M6 x 14
3K.823..M8 x 14
M8 x 20
25
Ø5.5
Center of
Shaft
Drilling Plan for mounting plate
POLE
A
L1V30606645002-01 | 01
8UC62..
A
Advertisement
Related Manuals for Siemens SENTRON 3KL82 Series
Summary of Contents for Siemens SENTRON 3KL82 Series
- Page 1 SENTRON SUPERSWITCH Switch Disconnector Fuse - Size 2 IEC 60947-1 3KL82...-.. (100A-160A) IEC 60947-3 3KA82...-.. (100A-160A) DANGER Hazardous voltage will cause death or serious injury. Turn off and lock out all power supplying this device before working on this device. Replace all covers before power supplying this device is turned on.
- Page 2 Connection 3KL821.../3KA821..3KL822.../3KA822..Max. Lug Size..70mm M6 x 20, Torque 6 Nm to 7.5 Nm 3KL823../3KA823..Max. Lug Size..95 mm M8 x 20, Torque 7 Nm to 10 Nm M6 x 20, Torque 6 Nm to 7.5 Nm Provision for Fuse monitoring Assembly Installation of Shaft...
- Page 3 Assembly Mounting Details for Front Drive 8UC6214-1BB00 2.5 mm 10 mm 183...240 Panel Door 1.5..4Thk Coupler P4X11.5 PZ 4 1.1..1.3Nm 5.5 1 29 1 8UC Coupler depth adjustment Use Depth Setting Templet - 8UC6046-2 Adjust Depth of Drive as per dimensional plan Assembly Phase Barrier: DIN: 3KX81530AE...
- Page 4 Assembly Terminal cover 2P : 3KX82310AF 3P : 3KX82310AE 4P : 3KX82310AG 0,5 x 3 mm Installation of BS Fuse 1 mm 1 mm M8 X 20 Torque 7.0 Nm. To 8.5 Nm. L1V30606645002-01 | 04...
- Page 5 Assembly Mounting Aux. Switch 3KX35221YC 3KX35221YD White tag should be positioned Towards shaft Assembly Fuse Cover: 2P (DIN/BS): 3KX82300HF/3KX82300JF 3P (DIN/BS): 3KX82300HE/3KX82300JE 4P (DIN/BS): 3KX82300HG/3KX82300JG 0,5 x 3 mm 2P : Additional Phase Barrier in Position 1 & 4 2P : Additional Phase Barrier in Position 1 & 5 3P : Additional Phase Barrier in Position 1 &...
- Page 6 Information Dimension Details for SDF in Enclosure Information Overall Dimensional details 3P(3KL8)/3P+N 160.5 168.5 46.3 94.5 Thickness H INTERLOCKING LEVER OFF POSITION INDICATOR FUSE NEUTRAL COVER LINK PHASE TERMINAL AUXLIARY SWITCH BARRIER TERMINAL COVER 3KL8/3KA8 : 4P 3KL8/3KA8 : 2P 136.5 For other Dimensions refer 3P/3P+N For other Dimensions refer 3P/3P+N...
