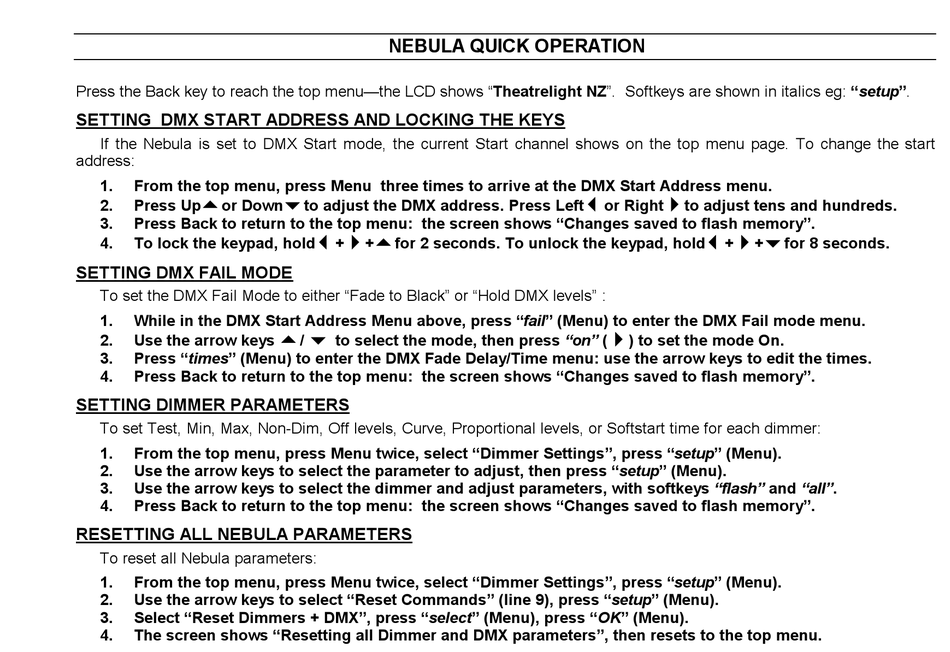

Press the Back key to reach the top menu—the LCD shows "Theatrelight NZ". Softkeys are shown in italics eg: "setup".
SETTING DMX START ADDRESS AND LOCKING THE KEYS
If the Nebula is set to DMX Start mode, the current Start channel shows on the top menu page. To change the start
address:
1.
From the top menu, press Menu three times to arrive at the DMX Start Address menu.
5
2.
Press Up
or Down
3.
Press Back to return to the top menu: the screen shows "Changes saved to flash memory".
4.
To lock the keypad, hold
SETTING DMX FAIL MODE
To set the DMX Fail Mode to either "Fade to Black" or "Hold DMX levels" :
1.
While in the DMX Start Address Menu above, press "fail" (Menu) to enter the DMX Fail mode menu.
2.
Use the arrow keys
3.
Press "times" (Menu) to enter the DMX Fade Delay/Time menu: use the arrow keys to edit the times.
4.
Press Back to return to the top menu: the screen shows "Changes saved to flash memory".
SETTING DIMMER PARAMETERS
To set Test, Min, Max, Non-Dim, Off levels, Curve, Proportional levels, or Softstart time for each dimmer:
1.
From the top menu, press Menu twice, select "Dimmer Settings", press "setup" (Menu).
2.
Use the arrow keys to select the parameter to adjust, then press "setup" (Menu).
3.
Use the arrow keys to select the dimmer and adjust parameters, with softkeys "flash" and "all".
4.
Press Back to return to the top menu: the screen shows "Changes saved to flash memory".
RESETTING ALL NEBULA PARAMETERS
To reset all Nebula parameters:
1.
From the top menu, press Menu twice, select "Dimmer Settings", press "setup" (Menu).
2.
Use the arrow keys to select "Reset Commands" (line 9), press "setup" (Menu).
3.
Select "Reset Dimmers + DMX", press "select" (Menu), press "OK" (Menu).
4.
The screen shows "Resetting all Dimmer and DMX parameters", then resets to the top menu.
NEBULA QUICK OPERATION
6
to adjust the DMX address. Press Left
3
4
5
+
+
for 2 seconds. To unlock the keypad, hold
5
6
/
to select the mode, then press "on" (
3
4
or Right
to adjust tens and hundreds.
3
4
+
+
4
) to set the mode On.
6
for 8 seconds.
