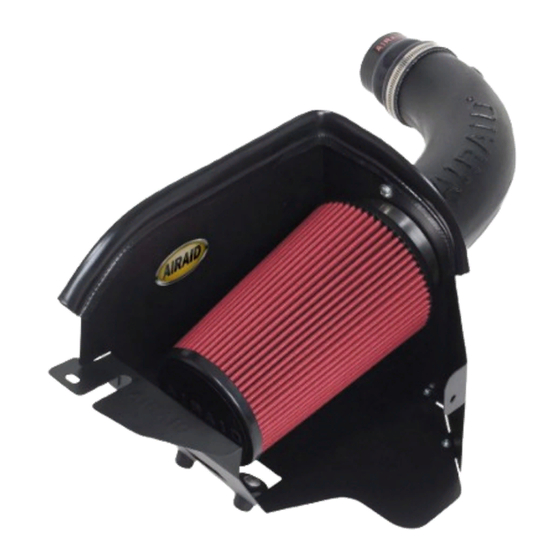

Thank you for purchasing the Airaid Intake System. Please read the instruction manual carefully before proceeding with the
installation. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit or instructions that are
not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are missing, or were damaged
during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to water and debris;
care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILTY!
Packing List:
701-421
KIT110S
KIT110TAC
KIT110A
KIT25C50HCSS
KIT110FB
KIT110RB
KIT09FWZ019
KIT110HPS
KIT110T
KIT09FWZ019
KIT25C62HCSS
KIT25CNNES
#311-110 INSTALLATION INSTRUCTIONS
1997-2002 Jeep TJ 2.5L &
1997-2004 Jeep TJ 4.0L (Does Not Fit 2.4L)
Thank you for selecting Airaid.
Filter 3.5"x 9" Short Flange
Splash Guard
Tube Assembly
Adapter Tube
Bolt ¼-20x1/2"
Long Bracket
Short Bracket
¼" Washer
Hardware Pack
Nylon Wire Tie
¼" Washer
Bolt ¼-20x5/8"
Nut ¼ -20
Tools Required for this Installation:
1
1
11 mm socket or wrench
1
10 mm socket or wrench
x1
x2
5/16" socket or nut driver
x1
x1
x2
Flat blade screwdriver
1
x1
x8
x4
x4
1
Ratchet wrench
8 mm wrench
7/16" socket
7/16" wrench
Pliers
Advertisement
Summary of Contents for Airaid Intake System
- Page 1 Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are missing, or were damaged during shipping.
- Page 2 *Note: Unscrew the nuts from underneath and use an 8mm wrench to keep the top bolts from turning. FIG #2 III Assemble Airaid Tube a) Bolt the two brackets to the Airaid tube using the shorter 1/4-20x1/2” bolts and washers. See FIG #3 Do not tighten yet.
- Page 3 Figure # 1 Figure # 2 Figure # 3 Figure # 4 Figure # 5 Figure # 6...
- Page 4 Do not apply high pressure water or air to clean filter. Allow filter to air dry and reinstall. Rev: 10/25/10 Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951 AiraidInfo@airaid.com www.airaid.com...
