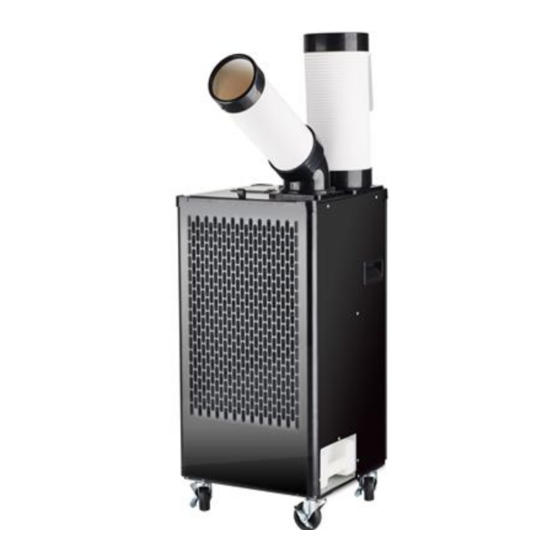

- Page 1 BE Mobile Industrial Air Conditioner User Manual Models: BGK1801-27, BGK1801-45, BGK1801-65...
-
Page 2: Table Of Contents
Thank you very much for choosing our BE Mobile Workshop Cooler. To ensure safe and efficient use of your new Cooler, please rea carefully. Contents I. Safety Signs and Precautions………………………… II. Technical Parameters……………………………… III. Electrical Schematic Diagram……………………………… IV. Product Structure………………………………………... -
Page 3: Safety Signs And Precautions
I. Safety Signs and Precautions Meaning and identification of signs Please read the safety signs and precautions carefully before using the mach Incorrect use while ignoring the sign may cause casualty accident, fire and other property losses. Danger Incorrect use while ignoring the sign may cause casualty accident, fire and other property losses. - Page 4 Attention Matters prompted in the following column may possibly cause grave consequen different situations. All records are important. Please do read them carefully and observe. Please do not use air cooler in places that use or store volatile substances (diluents, gasoline, kerosene, liquefied gas and other volatile liquids;...
- Page 5 Please do not use it in places with rain and snow water. Do not operate with wet hands. Please use 220V ～ power supply; Otherwise there might be machine breakdown or safety accident. Please separately use socket of 10A rated current. Use of socket with other electrical appliances may cause error.
- Page 6 Please immediately stop using it in case of error (stopped rotation, strange noise, improper vibration and unusual odor). To prevent disaster and damage, air cooler cannot be used in the following places: Vibrating floor Gradient floor Stairway, emergency exit and house exit and entrance, etc.
- Page 7 Do not haphazardly bend, drag, twist, pinch or change the power line. Do not overload the power line. Otherwise there may be fire, electrocution and other accidents. Please do not use it as air conditioner for boat and vehicle, etc. Otherwise there may be safety accident.
-
Page 8: Technical Parameters
II. Technical Parameters Model BGK1801-27 BGK1801-45 BGK1801-65 Power 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz Refrigerating Capacity 2700W 4500W 6500W Rated Power 950W 2000W 3000W Rated Current 4.2A 13.5A Blast Capacity 400m 800m 1200m Working Pressure on 2.5/4.5MPa Suction/Exhaust Side Max Working Pressure of Heat 4.5MPa... -
Page 9: Electrical Schematic Diagram
III. Electrical Schematic Diagram... -
Page 10: Product Structure
IV. Product Structure Cold Exhaust Hot Exhaust Pipe Pipe Switch Box Handle Filter Screen Right Plate Water Tank Front Shell Trundle... -
Page 11: Installation Method
V. Installation Method Installation method of elbow: point the turning of the elbow to the dent of the d elbow base on the machine, insert it in and rotate it anticlockwise. The elbow is when a sound of crack is heard (Fig.1). Installation method of cold exhaust pipe: point the turning of the cold exhaust p dent of the cold exhaust pipe, insert it in and rotate it to the left to make it in pl... - Page 12 (Fig.2). (Fig. 2) Change of Connection of Power Line Warning: if the line cord is broken, the power line must be replaced by professionals from the manufacturer, its maintenance department or similar department to avoid danger.
-
Page 13: Installation Method Of Extended Hot Exhaust Pipe
Please do guarantee smooth heat extraction of the hot exhaust pipe. Please do not fall foreign object in the hot exhaust pipe. The outdoor opening of the hot exhaust pipe shall be equipped with rainwater-proof backflow device (or bend a certain angle downward directly). - Page 14 Please cut the extended pipe based on the extended length needed. As is shown in the figure, separate the exhaust pipe from the groove with a fl screwdriver or other sharp tools at where it is supposed to be cut, and cut it o or scissors.
- Page 15 Method of Connecting Extended Pipe Detach the joint of the hot exhaust pipe and cover the extended pipe outside exhaust pipe. Screw the end tight and cling to it. Use adhesive tape to fixate it if necessary. Use binder to fixate the attached of the extended hot exhaust pipe.
-
Page 16: Operation Method
Attention Please turn the selecting switch off and cut the power off before moving the m When the machine is off, it may be restarted after 3 minutes. Compressor Overheat and Overload Protection Overly high or low voltage and overly high environment temperature may ca compressor to overhead and overload. - Page 17 Cold air pipe may rotate left or right to 360 degrees (hot air pipe is installed). Cold air pipe may be moved up or town to 150 degrees. The range of adjustment angle for hot air pipe is 45 degrees.
-
Page 18: Water Tank
IX. Drain Pipe (Optional) Condensate water may be discharged from the drain pipe directly. Method: take the water tank out and put the drain pipe directly on the outfall cross the round hole on the corresponding side plate. -
Page 19: Requirement For Machine Operating Site
30cm or more from the wall or other obstacles, and the hot exhaust pipe s or more from the roof or obstacle. The machine shall be placed on flat ground. To avoid safety accident, it prohibited to place it on slope, rugged terrace, or house entrance or exit, e To avoid safety accident, it is prohibited to use it in rain, snow water an humid sites. -
Page 20: Maintenance And Check
XI. Maintenance and Check Please clean the filter screen on schedule. Dust and dirt on the filter scr affect the air supply and cause frosting of heat exchanger, leading to mach breakdown. For filter screen cleaning, please use a vacuum cleaner to suck the dust filter screen and then use clean water to wash it. -
Page 21: Fault Cause And Countermeasure
XII. Fault Cause and Countermeasure 1. If the air conditioner breaks down, please immediately cut the powe pull the power plug out from the socket to check the following matters: Fault Cause Analysis Troubleshooting If the power plug is loose or falls Please insert the power plug firm in the powe socket Out-of-Operation...
