Advisory:
Do not use on patients with neuropathy, neuromas, or other nerve issues.
Fabrication only by a certified professional, trained in the RevoFit™ system.
Filament will wear, inspect and replace regularly.
Consultatif:
Ne pas utiliser chez les patients atteints de neuropathie, de névrome ou d'autres problèmes
nerveux. Fabrication uniquement par un professionnel certifié, formé au système RevoFit. Le
filament sera porté, inspecté et remplacé régulièrement.
Beratend:
Nicht bei Patienten mit Neuropathie, Neuromen oder anderen Nervenproblemen anwenden.
Fertigung nur durch einen zertifizierten Fachmann, der im RevoFit System geschult wurde.
Filament wird regelmäßig getragen, kontrolliert und ersetzt.
Consultivo:
No lo use en pacientes con neuropatía, neuromas u otros problemas nerviosos.
Fabricación solo por un profesional certificado, entrenado en el sistema RevoFit.
El filamento se desgastará, inspeccionará y reemplazará regularmente.
US PATENT# 8443501
REF
PK001

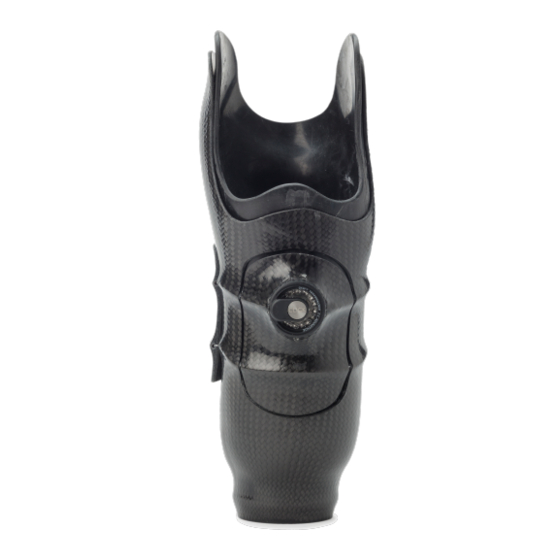

RevoFit2™
Lamination Kit
WE ARE HERE TO HELP!
Tech Support: 970 670 7012
ClickMedical.co/RevoSupport
Help@clickmedical.co
(MDD) - 93/42/EEC
harmonized & notified body
PK2000-320-05
Click Medical, LLC
1205 Hilltop Parkway
Warehouse 101
Steamboat Springs, CO, USA
(970) 670-7012
Advertisement
Table of Contents
Summary of Contents for Click RevoFit2
- Page 1 El filamento se desgastará, inspeccionará y reemplazará regularmente. WE ARE HERE TO HELP! Tech Support: 970 670 7012 ClickMedical.co/RevoSupport Help@clickmedical.co US PATENT# 8443501 Click Medical, LLC 1205 Hilltop Parkway PK001 (MDD) - 93/42/EEC Warehouse 101 harmonized & notified body Steamboat Springs, CO, USA...
- Page 3 High Power Boa Dial WARRANTY: Accedents happen, WE GET IT! For any warranty or product failure please do not return to distributor, simply contact CLICK MEDICAL DIRECTLY AT: Help@ClickMedical.co Help Line: 970 670 7012 Recommended Designs: +Additional Kit Required Above Knee:...
- Page 4 Design Overview: Determine location of panels or areas Determine location of reel of adjustment On panel On frame Determine lace routing For Inline Routing - Use port II and III For Remote Routing - Use port I and II Inline - mounted on panel Remote - mounted on socket frame Inline - mounted on socket frame Fabrication Overview:...
- Page 5 Lamination Instructions: a. Roughly sand socket. Prep the mold with a thin first lamination layer: b. Draw in trim lines. Reinforce areas under the tubing and under c. Determine reel, panel and lace path location. the panel cutout areas. d. Roughly draw in lace path. Reel mounting: Draw tube guide lines: If mounting reel on frame, glue it into place now.
- Page 6 Lamination Instructions Continued: Cut out the panels: Sand edges Use small end of blade for round corners Clear tube holes Finish sanding exit holes by hand until extra smooth Scalloped blade Prepare housing: Drill pilot hole to access tab for reel removal: 1.
- Page 7 Lamination Instructions Continued: Leave 8cm of lace Attach lace to reel: Feed lace: on both ends Feeder 8 cm Lace Insert laces into smallest end of pass through on spool. Tie double overhand knots on each end. Insert reel into socket - turn counter-clockwise to lock: Finished! - Fit patient Pilot hole...
- Page 8 Distributed by: PEL, LLC ph: 800-321-1264 www.pelservice.com...
