Summary of Contents for JCM EVOPROX

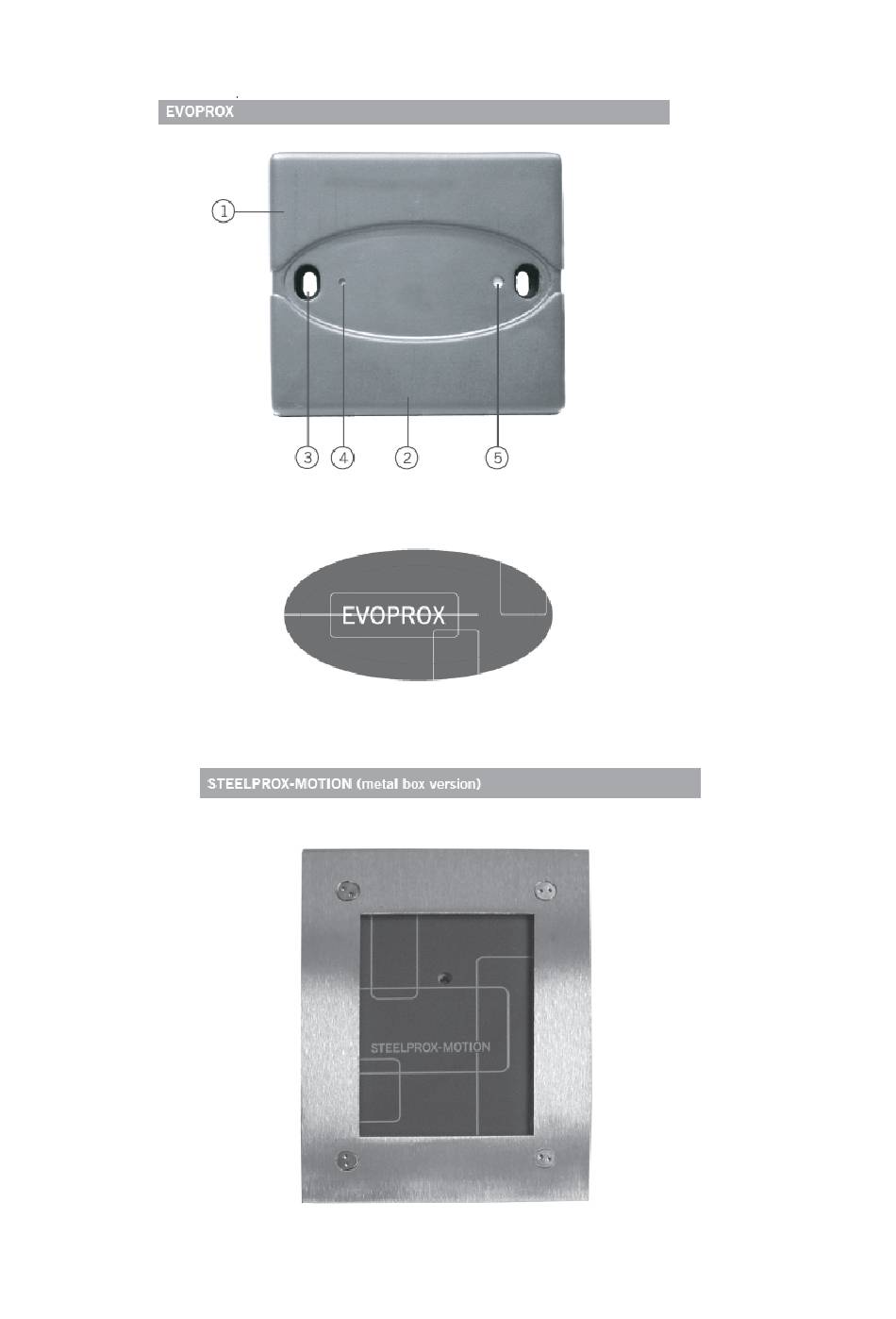

- Page 1 1247001-GB / 4.0 EVOPROX – STEELPROX-MOTION...
- Page 2 1247001-GB / 4.0 EVOPROX – STEELPROX-MOTION Proximity reader TECHNICAL DATA Reading system By proximity Operating range 5cm aprox Power supply 12Vdc (9-21V) Standby /operating consumption 68mA / 110mA (proximity to metals or between readers affects consumption) Compatibility MOTION and Myfare proximity...
- Page 3 1247001-GB / 4.0 EVOPROX – STEELPROX-MOTION CONNECTION Connection is made through the wiring from the rear, which is connected directly to a MOTION (+, -, L) decoder or a Wiegand (+, -, D0, D1, Control LED) or CONTROLLER- 6000 / C4+ station (+, -, CONTROLLER-6000).
- Page 4 1247001-GB / 4.0 EVOPROX – STEELPROX-MOTION JCM TECHNOLOGIES, S.A. declares that the product EVOPROX, STEELPROX-MOT is compliant with the appropriate provisions, as indicated in Article 3 of the R&TTE Directive 1999/05/EC, provided it is used as planned EC DECLARATION OF CONFORMITY...
