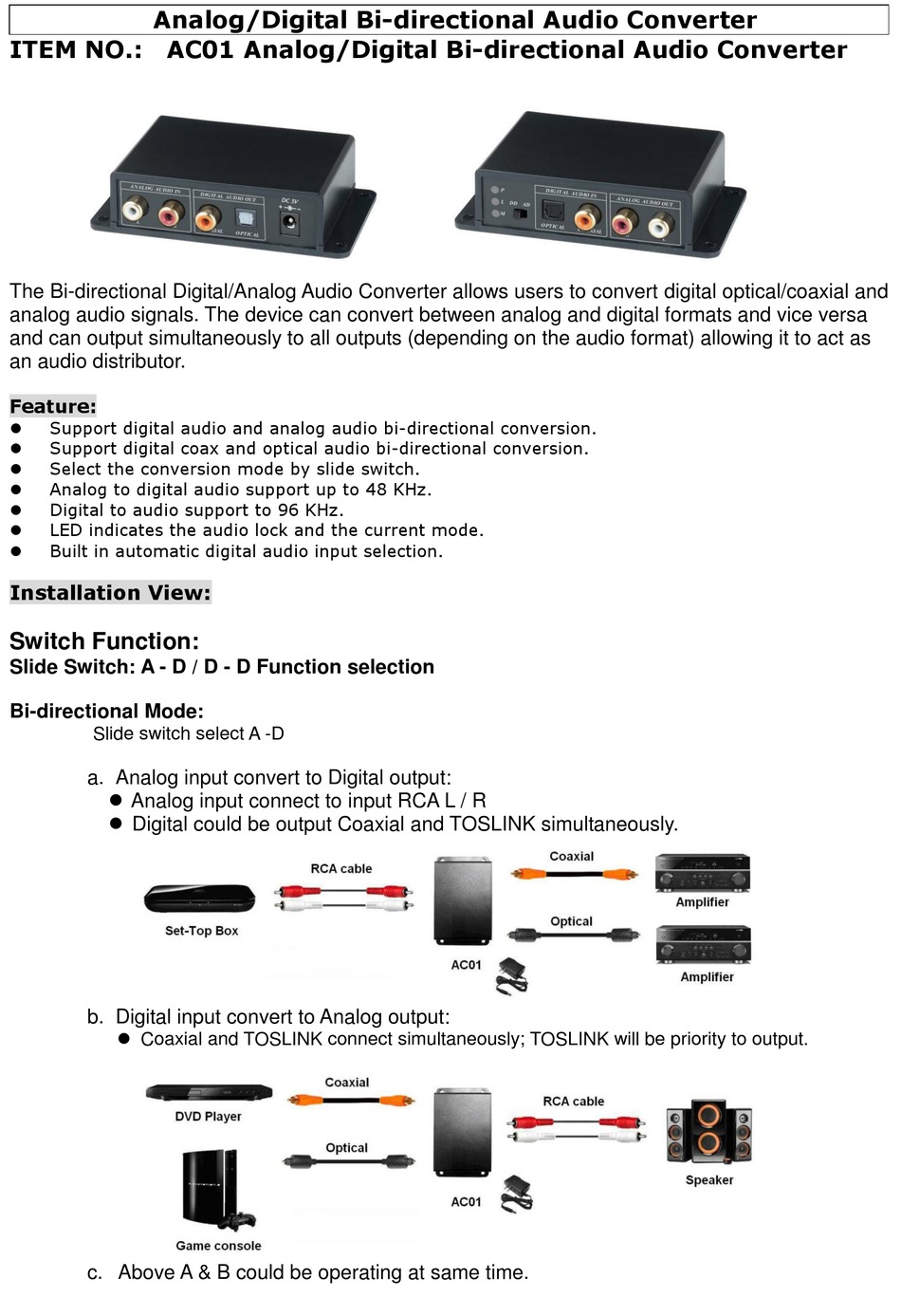

Deltaco AC01 Quick Start Manual

Analog/Digital Bi-directional Audio Converter
ITEM NO.: AC01 Analog/Digital Bi-directional Audio Converter

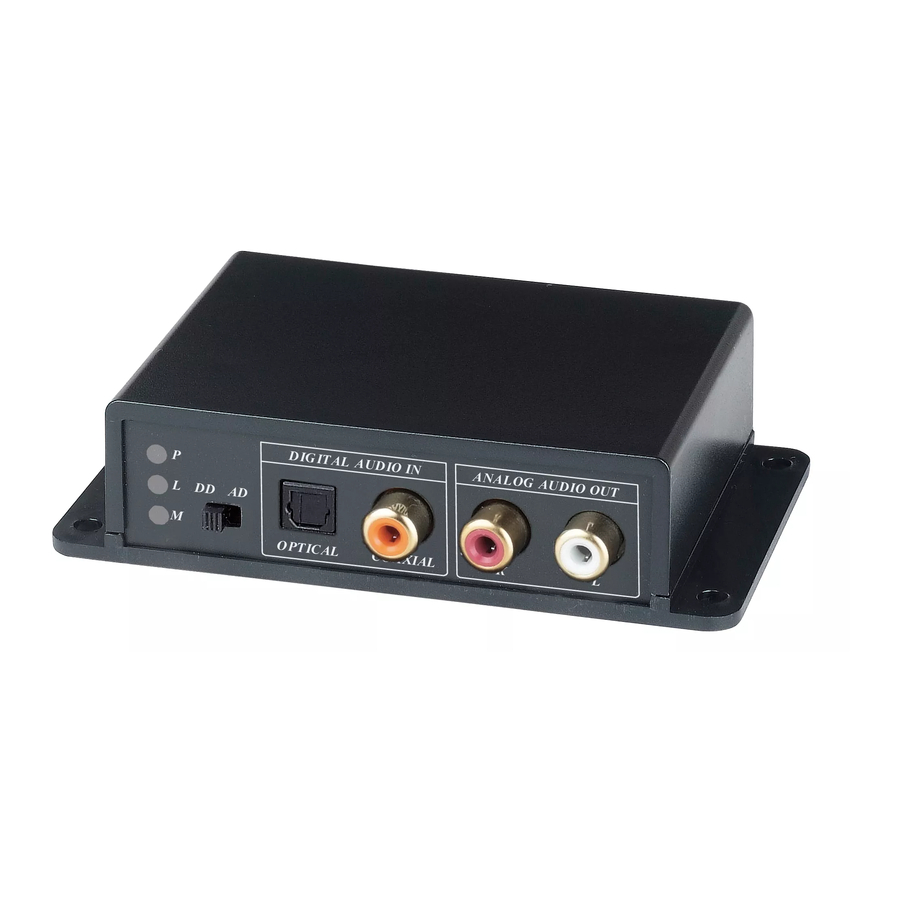

The Bi-directional Digital/Analog Audio Converter allows users to convert digital optical/coaxial and
analog audio signals. The device can convert between analog and digital formats and vice versa
and can output simultaneously to all outputs (depending on the audio format) allowing it to act as
an audio distributor.
Feature:
Support digital audio and analog audio bi-directional conversion.

Support digital coax and optical audio bi-directional conversion.

Select the conversion mode by slide switch.

Analog to digital audio support up to 48 KHz.

Digital to audio support to 96 KHz.

LED indicates the audio lock and the current mode.

Built in automatic digital audio input selection.


Installation View:

Switch Function:

Slide Switch: A - D / D - D Function selection

Bi-directional Mode:

Slide switch select A -D
a. Analog input convert to Digital output:
 Analog input connect to input RCA L / R
 Digital could be output Coaxial and TOSLINK simultaneously.
b. Digital input convert to Analog output:
 Coaxial and TOSLINK connect simultaneously; TOSLINK will be priority to output.
c. Above A & B could be operating at same time.
