IN SETTING 1: THE DETECTOR PERFORMS AS A BASIC MAGNETIC LOCATOR.
Signal from ferrous metal objects including
NOTE: No

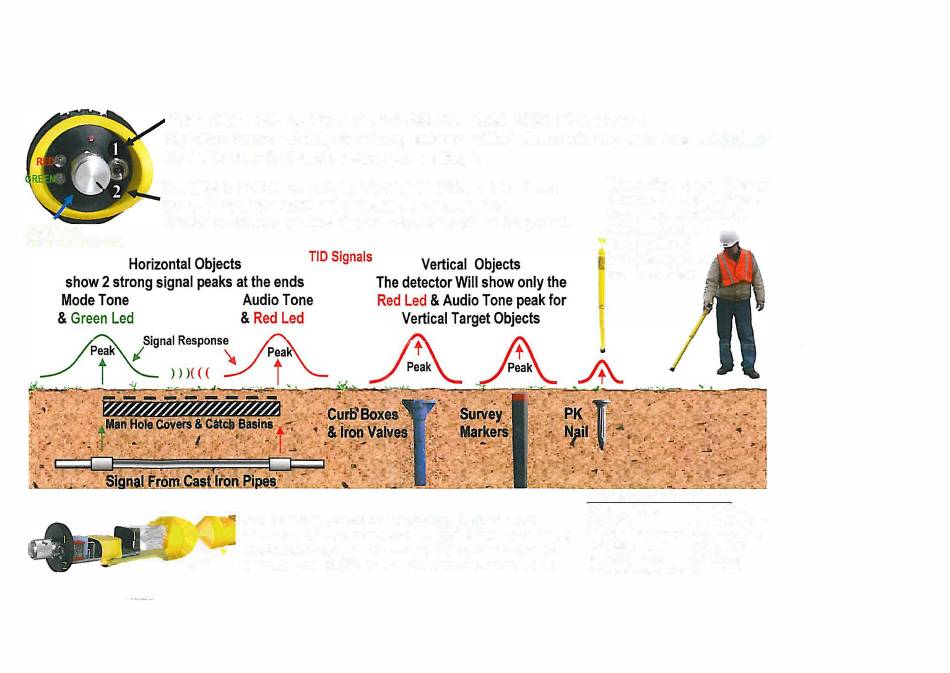

SETTING 2: PATENTED (TIO) TARGET IDENTIFICATION SYSTEM.

WE RECOMMEND USING (TIO) FUNCTION AT ALL TIMES.
This feature will save you time digging unnecessary holes in the ground.
ON/OFF AND
SENSITIVITY CONTROL
_ __ __ Q:
TestEquipmentDepot.com
Green Led will show when used in setting
A PULSATING TONE INDICATES LOW
STILL USE THE LOCATOR FOR SOME TIME BEFORE REPLACING.
LOOSEN SCREW TURNS & PUSH ALONG SLOT TO EXPOSE
2
THE BATTERY. NOTE: DO NOT PULL ON SENSITIVITY KNOB
horizontal
will be indicated with only
1.

LOCATING DEPTHS UP TO IN FEET

9 ft Survey Markers
BATTERY. YOU CAN
1 ft PK Nail
10 ft Valve & Curb Boxes Up to15 ft Oil Tank
10 ft Manhole Covers
8 ft Cast-Iron Pipes
4 ft Septic Tank Handles Fire Hydrants
Audio Tone Red Led
and
Turn sensitivity approx 1/2 way up.
When searching, hold tip close to
ground move forward swinging
detector left and right.
iTo pinpoint target
hold detector vertical
over target object.
17 ft Well Casing
Up to12 ft Steel Drum
Road Culverts
Catch Basins
