Summary of Contents for Superlux MA500 Series
- Page 1 MA500 PERSONAL VOICE ENHANCER Contact Marketing and sales Goang-Fann Co., Ltd. +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...

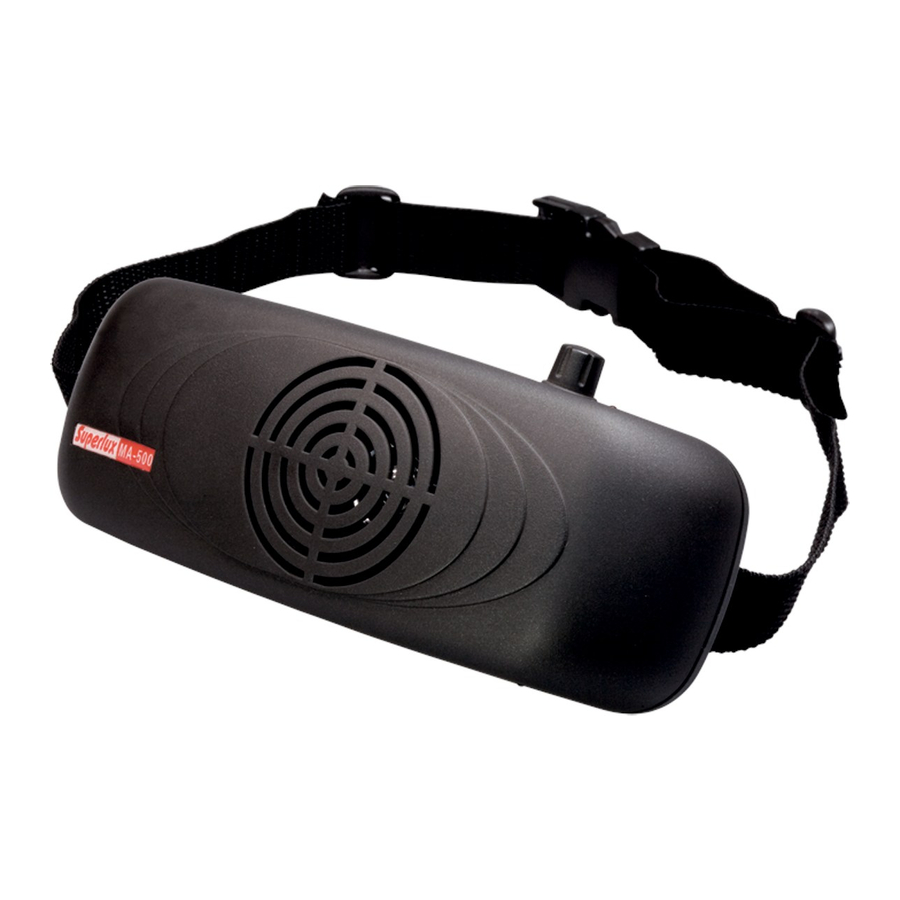

- Page 2 MA500 PERSONAL VOICE ENHANCER GENERAL DESCRIPTION • Powered by six AA alkaline batteries （not included）that provide up to 8 MA500 is a light weight personal voice hours of operation enhancer and can work with a variety of • Included charging circuitry microphones for convenient speaking •...
- Page 3 SPECIFICATIONS *Note:Specifications are subject to change. Max. Output Power 5W／4Ω Audio Inputs 2 3.5 mm（1/8”）stereo mini jack, one for microphone and the other for line source Power Requirements 6 1.5V AA alkaline batteries Recharging Circuitry MA500 can be used as a charger, the rechargeable battery should be Ni-MH or Ni-CD and its capacity should be lower than 1300 mA.
- Page 4 High-power full-range driven by 5-watt am- plifier DC jack Charger LED indicator Belt strap 6 AA batteries for 8-hour operation 3.5 mm line input Volume and power switch 3.5 mm mic input Power Indicator Headworn Microphone...
- Page 5 Battery microphone input. 3.Put on the headworn microphone, Insert 6 LR6 (AA) rechargeable of alka- wear the MA500 on your waist. Turn- line batteries according to the polarity on the unit by rotate the volume control indication printed in the bottom of the clockwise.
- Page 6 Models MA500/105 MA500/108 Headworn Cardioid Headworn Figure 8 The MA500 is packaged with an The MA500 is packed with an E108 E105 headworn cardioid micro- headworn figure 8 microphone for phone for hands-free operation. It’s hands-free and background noise suited to smaller, quiet spaces with rejection.
- Page 7 In the validity period, if there’s any material, producing quality, or any function unavailable, Superlux will repair or replace the parts. This warranty is only for the product which selling by distribu- tor or agent which authorized by Superlux. However, the situation below is excluded in the warranty :...
