PLUSLITE ARKIWASH-PL018 User Instructions

Wall washer led ip65
Hide thumbs

Advertisement

Quick Links

Download this manual
ARKIWASH-PL018
Wall Washer LED IP65
User Instructions
https://www.piu39av.com/pluslite-lighting/

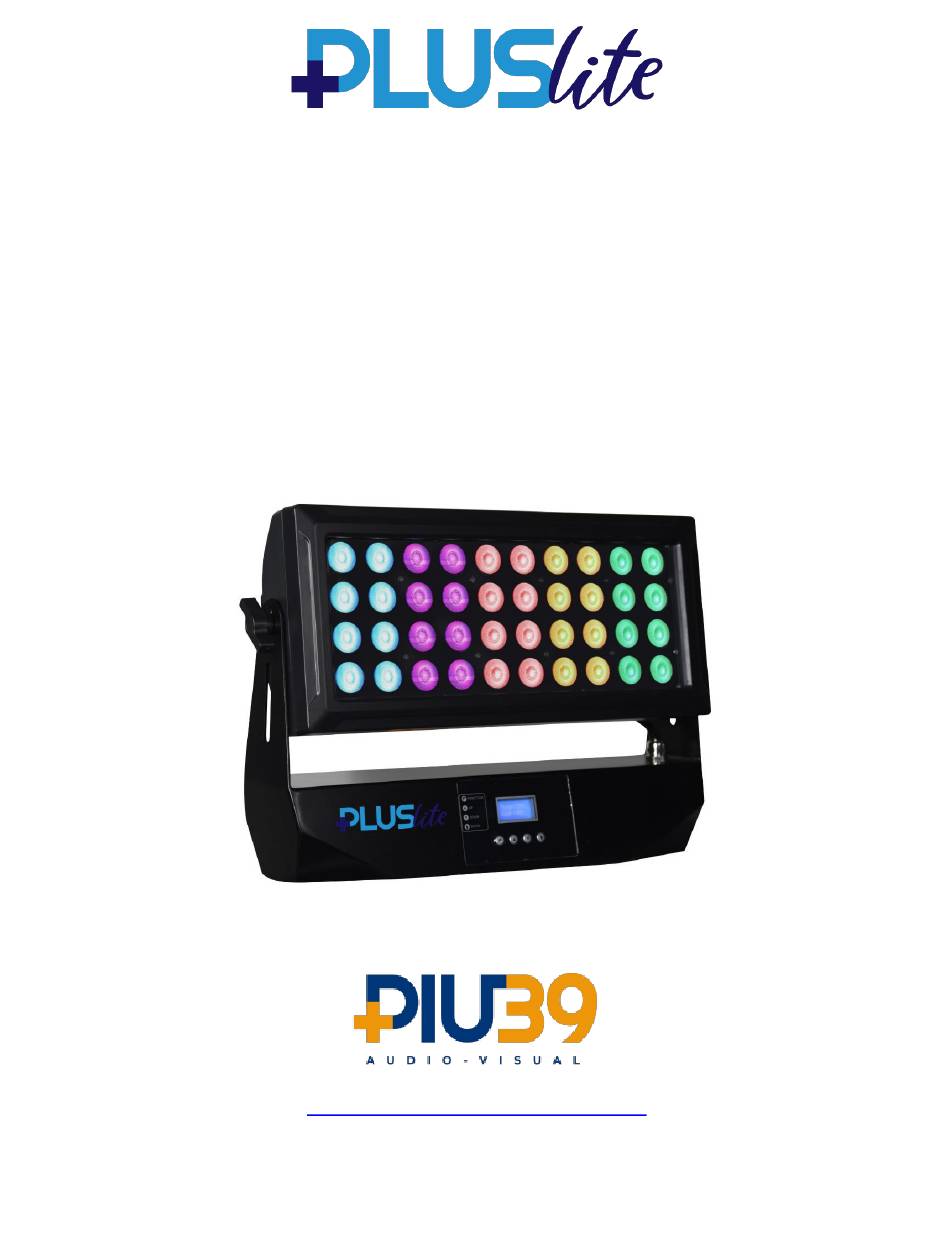

ARKIWASH-PL018 User Manual Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARKIWASH-PL018 and is the answer not in the manual?

Questions and answers

Summary of Contents for PLUSLITE ARKIWASH-PL018

  • Page 1 ARKIWASH-PL018 Wall Washer LED IP65 User Instructions https://www.piu39av.com/pluslite-lighting/ ARKIWASH-PL018 User Manual Page 1...
  • Page 2 Do not return this unit to your dealer without first contacting customer support. Introduction: The ARKIWASH-PL018 is a DMX intelligent, IP rated LED par fixture. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. This par has multiple operating modes: RGBW dimmer mode, Static Color mode, Auto Run mode, Color Macro mode, and DMX control.
  • Page 3 Warranty Registration ARKIWASH-PL018 The ARKIWASH-PL018 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the out- side of the return package.
  • Page 4 B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ARKIWASH-PL018 User Manual Page 4...
  • Page 5 Damages and/or performance issues resulting from installation in a marine and/or coastal environment will void the manufactures warranty and will NOT be subject to any warranty claims and/or repairs. ARKIWASH-PL018 User Manual Page 5...
  • Page 6 ARKIWASH-PL018 Layout LCD Display FUNC button Up button Down button Enter button ARKIWASH-PL018 back figure IP65 Locking Power Connection In/Out IP65 Locking Singal 3P Connector In/Out ARKIWASH-PL018 User Manual Page 6...

  • Page 7: Dmx Set Up

    DMX-512 protocol. The ARKIWASH-PL018 has 4 DMX channel modes. The DMX address is set on the back panel of the ARKIWASH-PL018. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output. We recommend Accu-Cable DMX cables.
  • Page 8 In the case of the ARKIWASH-PL018, when in 8 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 9 (8 + 1), the third unit to 17 (8 + 9), and so on. (See chart below for more details.)
  • Page 9 … … … … Macro 16 240~255 10CH describe parameter Main Dimmer 0~255 Strobe Speed(slow->fast) 0~255 Dimmer Mode 0~10 Auto Mode1 11~20 Auto Mode2 21~30 Auto Mode3 31~40 … … … … Auto Mode24 241~250 ARKIWASH-PL018 User Manual Page 9...
  • Page 10 G1 dimmer 0-100% 0~255 B1 dimmer 0-100% 0~255 W1 dimmer 0-100% 0~255 R2 dimmer 0-100% 0~255 G2 dimmer 0-100% 0~255 … … … … … … CH39 B10 dimmer 0-100% 0~255 CH40 W10 dimmer 0-100% 0~255 ARKIWASH-PL018 User Manual Page 10...
  • Page 11 Note 1: In FAN AUTO mode, when the temperature is above 50°, the fan will automatically start cooling until it drops below 50° Note 2: Press ENTER to save the data and press and hold to see the current lamp board temperature ARKIWASH-PL018 User Manual Page 11...

  • Page 12: Master/Slave Configuration

    XLR connector is the ouput. The first unit in the chain (master) will use the female XLR connector only. The last unit in the chain will use the male XLR connector only. 2. Connect the first “Slave” unit to the “Master.” ARKIWASH-PL018 User Manual Page 12...
  • Page 13 ARKIWASH-PL018 Pixel Zone Control This fixture features pixel zone control. See the diagram below, which illustrates the specific pixel zone set up Pixel 1 Pixel 1 Pixel 10 ARKIWASH-PL018 User Manual Page 13...
  • Page 14 Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 ARKIWASH-PL018 Dimmer Curve Chart ARKIWASH-PL018 User Manual Page 14...
  • Page 15 ARKIWASH-PL018 Dimensional Drawing *NOT TO SCALE ARKIWASH-PL018 User Manual Page 15...

  • Page 16: Troubleshooting

    The maximum that can be connected is 8 fixtures @ 120V and 15 fixtures @ 240V. After the maximum connected fixtures you will need to use a new power outlet. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE ARKIWASH-PL018 AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY!
  • Page 17 4 DMX Modes,6 Channel Mode, 8 DMX Modes,40 Channel Mode Warranty: 2 Years Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice https://www.piu39av.com/pluslite-lighting/ ARKIWASH-PL018 User Manual Page 17...
