Traxon Allegro Washer AC Accessories Mounting Manual

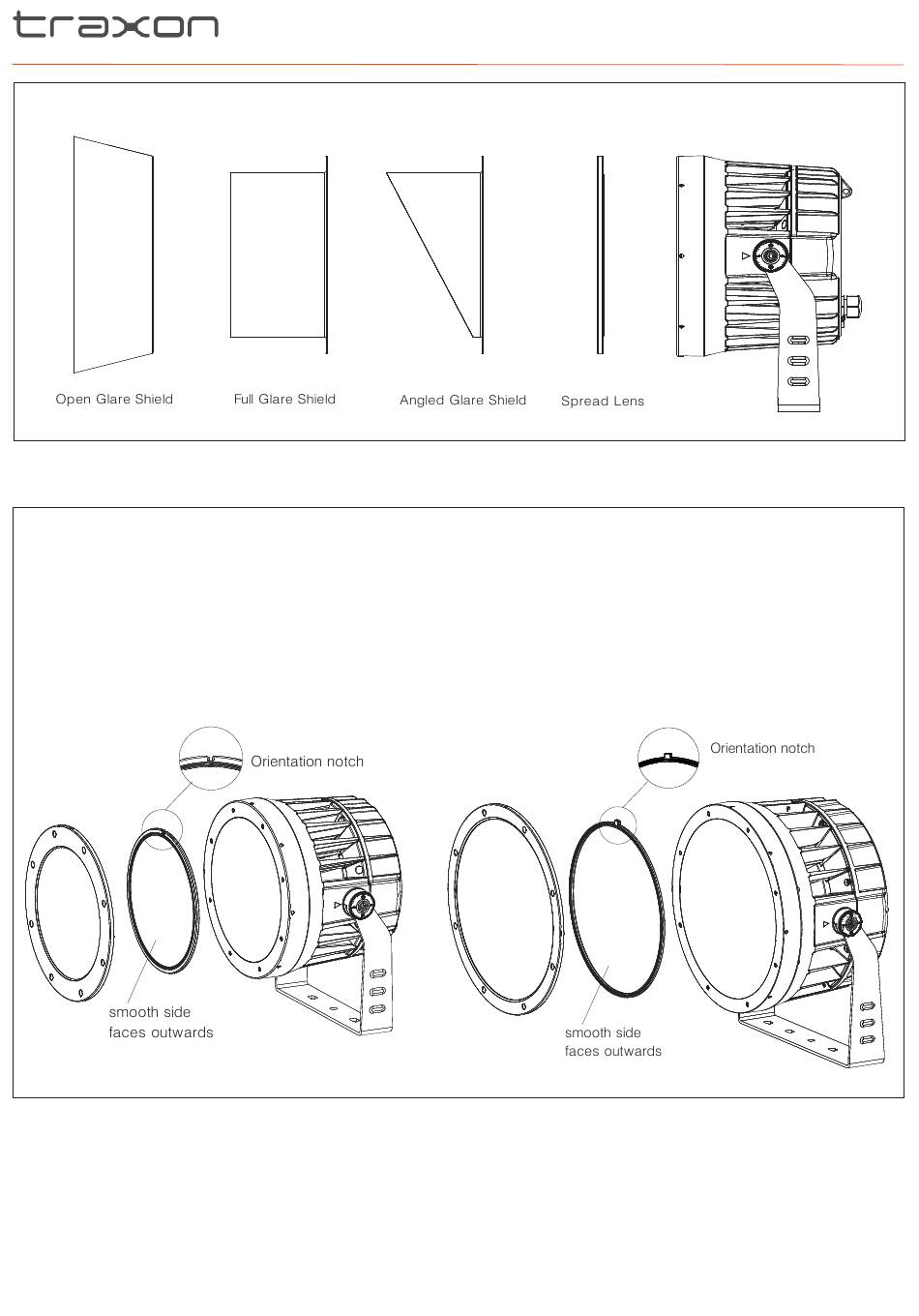

Accessories Structure

Spread Lens

One side of the spread lens has a smooth surface, the other side has a rough surface. The smooth side must face the outside.
On the smooth side, it is also printed the angle of the spread lens.
The spread lens has a notch for rotational orientation. The notch is at 0
spread lens.
50W/100W
www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Mounting Guide
A cc es s o ri es M o u n ti n g Gu i de
o
(top center). There are two types of notch on the
150W/200W
MG0105EN V1.0 03/20
A l l eg r o Wa s he r A C
1 of 4
