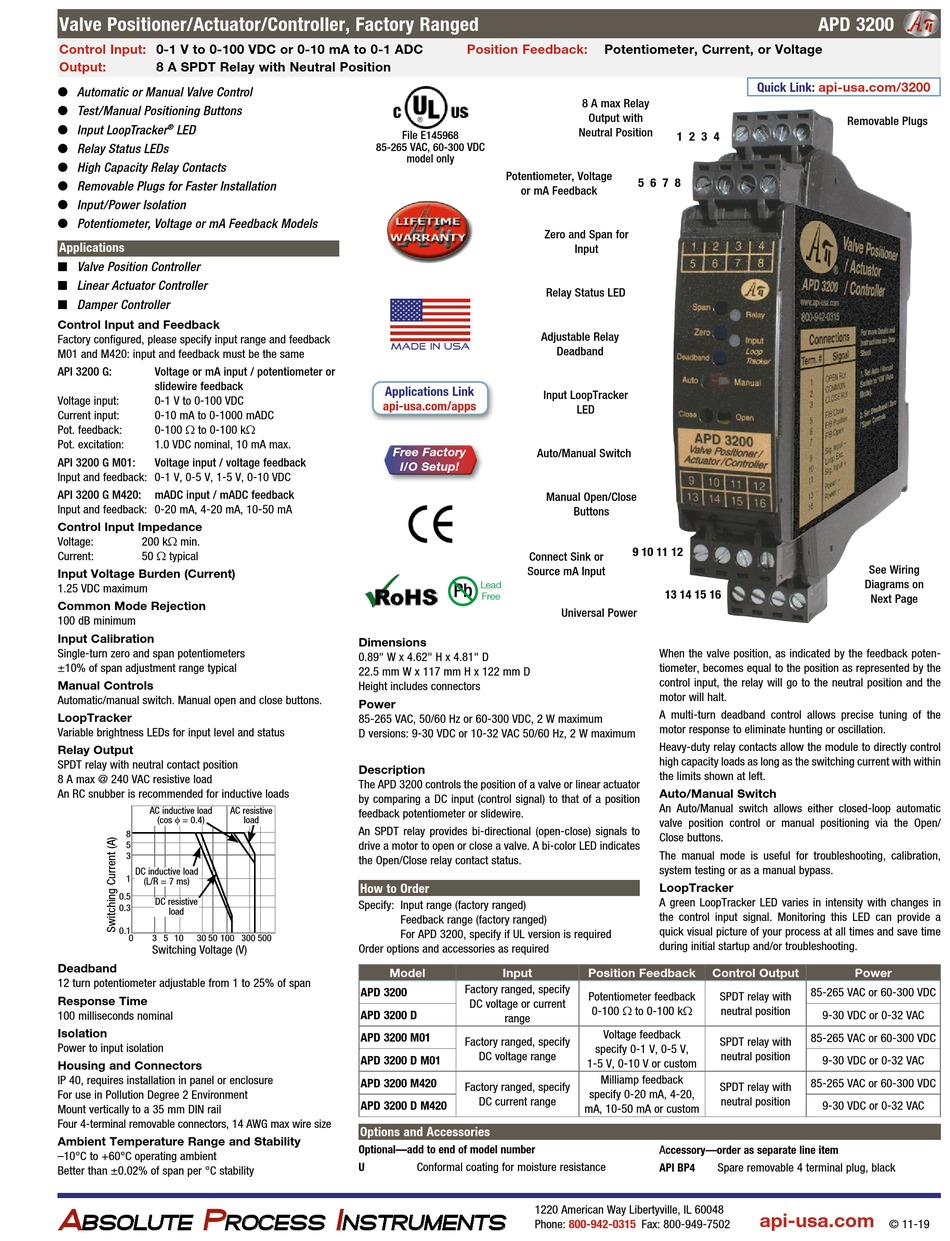

API APD 3200 Series Quick Start Manual

Valve Positioner/Actuator/Controller, Factory Ranged
Control Input: 0-1 V to 0-100 VDC or 0-10 mA to 0-1 ADC
Output: 8 A SPDT Relay with Neutral Position
O Automatic or Manual Valve Control
O Test/Manual Positioning Buttons
O Input LoopTracker ® LED
O Relay Status LEDs
O High Capacity Relay Contacts
O Removable Plugs for Faster Installation
O Input/Power Isolation
O Potentiometer, Voltage or mA Feedback Models
Applications
Q Valve Position Controller
Q Linear Actuator Controller
Q Damper Controller
Control Input and Feedback
Factory configured, please specify input range and feedback
M01 and M420: input and feedback must be the same
API 3200 G: Voltage or mA input / potentiometer or
slidewire feedback
Voltage input: 0-1 V to 0-100 VDC
Current input: 0-10 mA to 0-1000 mADC
0-100 Ω to 0-100 kΩ
Pot. feedback:
Pot. excitation: 1.0 VDC nominal, 10 mA max.
API 3200 G M01: Voltage input / voltage feedback
Input and feedback: 0-1 V, 0-5 V, 1-5 V, 0-10 VDC
API 3200 G M420: mADC input / mADC feedback
Input and feedback: 0-20 mA, 4-20 mA, 10-50 mA
Control Input Impedance
Voltage: 200 kΩ min.
Current: 50 Ω typical
Input Voltage Burden (Current)
1.25 VDC maximum
Common Mode Rejection
100 dB minimum
Input Calibration
Single-turn zero and span potentiometers
±10% of span adjustment range typical
Manual Controls
Automatic/manual switch. Manual open and close buttons.
LoopTracker
Variable brightness LEDs for input level and status
Relay Output
SPDT relay with neutral contact position
8 A max @ 240 VAC resistive load
An RC snubber is recommended for inductive loads
AC inductive load AC resistive
(cos f = 0.4)
8
5
3
DC inductive load
1
(L/R = 7 ms)
0.5
DC resistive
0.3
load
0.1
0 3 5 10 30 50 100 300 500
Switching Voltage (V)
Deadband
12 turn potentiometer adjustable from 1 to 25% of span
Response Time
100 milliseconds nominal
Isolation
Power to input isolation
Housing and Connectors
IP 40, requires installation in panel or enclosure
For use in Pollution Degree 2 Environment
Mount vertically to a 35 mm DIN rail
Four 4-terminal removable connectors, 14 AWG max wire size
Ambient Temperature Range and Stability
–10°C to +60°C operating ambient
Better than ±0.02% of span per °C stability
A A P P
BSOLUTE BSOLUTE ROCESS ROCESS
File E145968
85-265 VAC, 60-300 VDC
model only
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
Made in USA
Applications Link
api-usa.com/apps
Free Factory
I/O Setup!
Dimensions
0.89" W x 4.62" H x 4.81" D
22.5 mm W x 117 mm H x 122 mm D
Height includes connectors
Power
85-265 VAC, 50/60 Hz or 60-300 VDC, 2 W maximum
D versions: 9-30 VDC or 10-32 VAC 50/60 Hz, 2 W maximum
Description

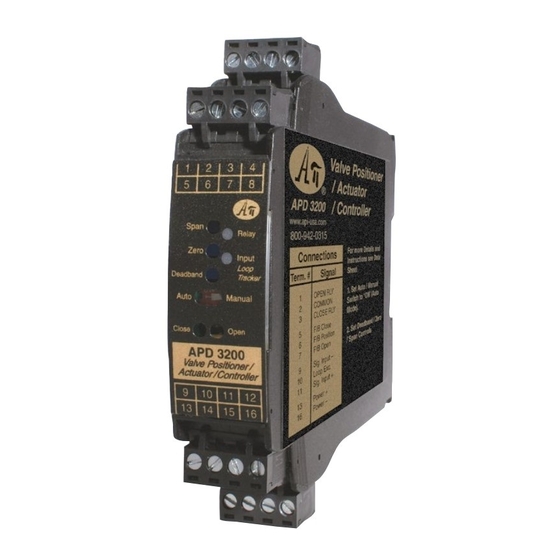

The APD 3200 controls the position of a valve or linear actuator
by comparing a DC input (control signal) to that of a position
feedback potentiometer or slidewire.
load
An SPDT relay provides bi-directional (open-close) signals to
drive a motor to open or close a valve. A bi-color LED indicates
the Open/Close relay contact status.
How to Order
Specify: Input range (factory ranged)
Feedback range (factory ranged)
For APD 3200, specify if UL version is required
Order options and accessories as required
Model
APD 3200
APD 3200 D
APD 3200 M01
APD 3200 D M01
APD 3200 M420
APD 3200 D M420
Options and Accessories
Optional—add to end of model number
U Conformal coating for moisture resistance
I I
NSTRUMENTS NSTRUMENTS
Position Feedback: Potentiometer, Current, or Voltage
8 A max Relay
Output with
Neutral Position
Potentiometer, Voltage
or mA Feedback
Zero and Span for
Input
Relay Status LED
Adjustable Relay
Deadband
Input LoopTracker
LED
Auto/Manual Switch
Manual Open/Close
Buttons
9 10 11 12
Connect Sink or
Source mA Input
Pb Lead
Free
Universal Power
Input Position Feedback
Factory ranged, specify
Potentiometer feedback
DC voltage or current
0-100 Ω to 0-100 kΩ
range
Voltage feedback
Factory ranged, specify
specify 0-1 V, 0-5 V,
DC voltage range
1-5 V, 0-10 V or custom
Milliamp feedback
Factory ranged, specify
specify 0-20 mA, 4-20,
DC current range
mA, 10-50 mA or custom
1220 American Way Libertyville, IL 60048
Phone: 800-942-0315
Quick Link:
1 2 3 4
5 6 7 8
13 14 15 16
When the valve position, as indicated by the feedback poten-
tiometer, becomes equal to the position as represented by the
control input, the relay will go to the neutral position and the
motor will halt.
A multi-turn deadband control allows precise tuning of the
motor response to eliminate hunting or oscillation.
Heavy-duty relay contacts allow the module to directly control
high capacity loads as long as the switching current with within
the limits shown at left.
Auto/Manual Switch
An Auto/Manual switch allows either closed-loop automatic
valve position control or manual positioning via the Open/
Close buttons.
The manual mode is useful for troubleshooting, calibration,
system testing or as a manual bypass.
LoopTracker
A green LoopTracker LED varies in intensity with changes in
the control input signal. Monitoring this LED can provide a
quick visual picture of your process at all times and save time
during initial startup and/or troubleshooting.
Control Output
85-265 VAC or 60-300 VDC
SPDT relay with
neutral position
85-265 VAC or 60-300 VDC
SPDT relay with
neutral position
85-265 VAC or 60-300 VDC
SPDT relay with
neutral position
A ccessory—order as separate line item
API BP4 Spare removable 4 terminal plug, black
api-usa.com
Fax: 800-949-7502
APD 3200
api-usa.com/3200
Removable Plugs
See Wiring
Diagrams on
Next Page
Power
9-30 VDC or 0-32 VAC
9-30 VDC or 0-32 VAC
9-30 VDC or 0-32 VAC
© 11-19
