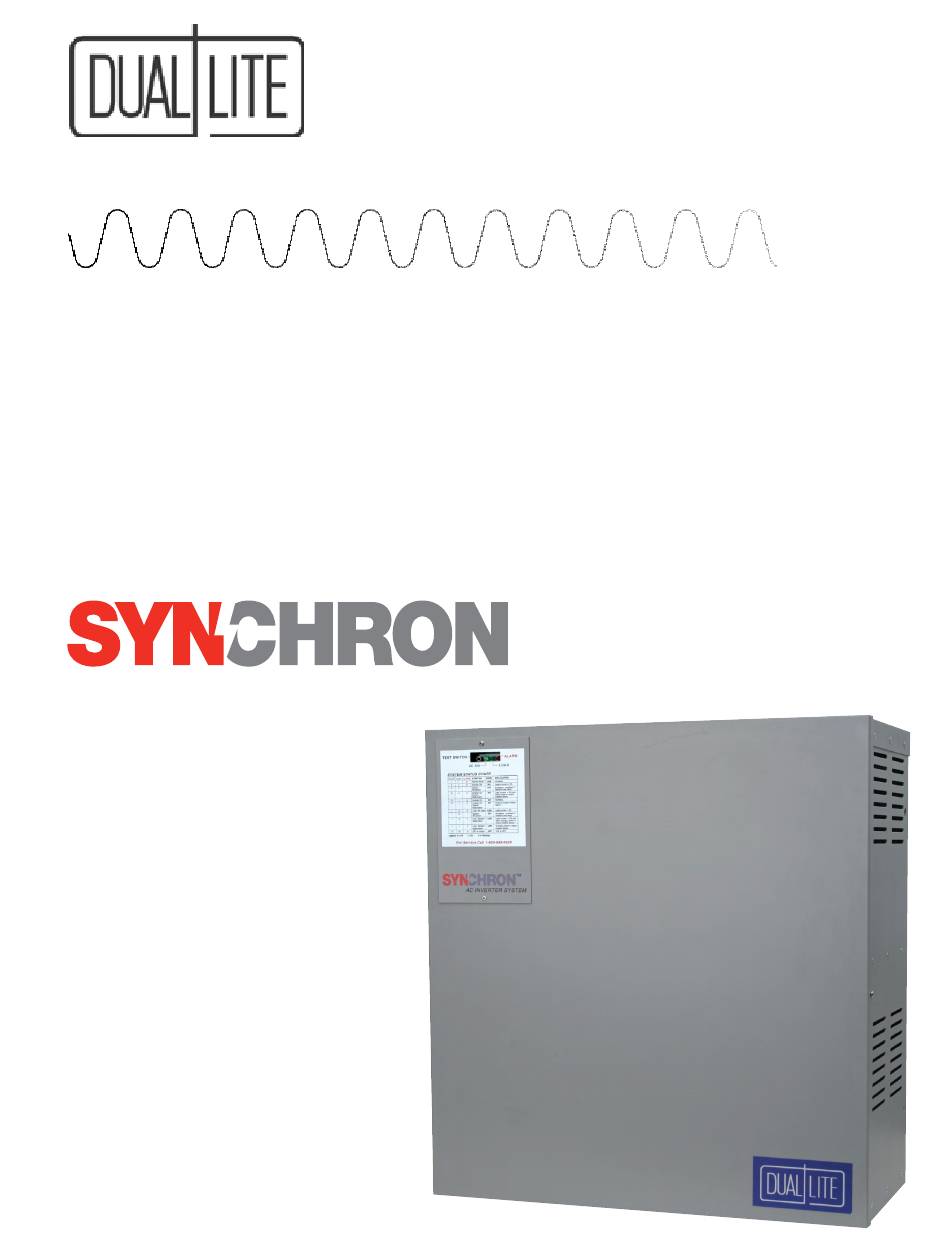

- Page 1 Installation Instructions User Manual Inverter Power Systems 400 to 2100 VA...
- Page 2 1. Read and follow all safety instructions. 2. Do not install the Synchron system outdoors. 3. Do not install near gas or electric heaters or in other high-temperature locations. 4. Use caution when servicing batteries. Battery acid can cause burns to skin and eyes. If acid is spilled on skin or in the eyes, flush with fresh water and contact a...
-
Page 3: Table Of Contents
Table of Contents Section 100 System Installation Instructions Description Page 101. Unit Specifications ............................4 102. Receiving, Moving and Storing Systems and Batteries ................5 102.1 Shipping Damage ........................5 102.2 Moving Units and Batteries ......................5 102.3 Temporary Storage of Units and Batteries .................. 5 103. -
Page 4: Section 100 System Installation Instructions
• Battery voltage: 36, 72 or 96VDC (system dependent) • Runtimes: 90 minutes standard. • Operating temperature: 20°C to 30°C (68°F to 86°F) • Relative humidity: 95% non-condensing Note: Battery performance rated at 25°C (77°F) Table 1. Synchron Sizing Chart VA/Watts 1000 1500 2100 Power Factor Range .75 Lag to .8 Lead... -
Page 5: 102. Receiving, Moving And Storing Systems And Batteries
Store all batteries at 10° to +30° C (50° to +86° F). Batteries will have a longer shelf life if stored at 10° to +30° C (50° to +86° F). The Synchron electronics and battery cabinets may be stored at -20° to +60° C (-4° to +140° F). -
Page 6: 103. Installation Requirements
Synchron inverter Systems are UL Listed for 20° to 30° C (+ 68° to +86° F) operation. The Synchron Inverter System has a designed operating range of 0° to +40° C (+32° to +104° F) at up to 95% relative humidity. Installation in environments at the temperature extremes of the designed operating range may effect unit performance or reduce service life. -
Page 7: 104. Cabinet Mounting (Physical)
104. Cabinet Mounting The Synchron 400 and 525 VA models are supplied with two full length brackets for wall mounting; while the 750 VA and up models are designed for floor mounting. These are also supplied with side mount stabilizing brackets to secure the cabinet to the wall. -
Page 8: 105. Battery Installation And Connection
Keep the cable away from any sharp metal edges. 5. Install the battery cables so they cannot be pinched by the Synchron inverter system cover/door. 6. Where conductors may be exposed to physical damage, protect conductors in accordance with NEC requirements. -
Page 9: 105.2 Installation Considerations
105.2 Installation Considerations This section explains how to install the Synchron system’s batteries, fuses, and cables. A qualified electrician who is familiar with battery installations and applicable building and electrical codes should install the batteries. 105.3 Battery Installation Procedure Battery Voltage: Select which wiring diagram to use from this table:... -
Page 10: 105.4 Electronics Cabinet Voltage Check
B. Before installing, maintaining, or servicing the unit, always remove or shut off all sources of AC and DC power and shut off the Synchron inverter system. Disconnect AC line input at the service panel and turn off the Main DC Switch and the Main AC Switch to make sure the unit will not supply output voltage. -
Page 11: 106.2 Ac Input And Ac Output Connections
DC Switch, all output circuit breakers, and the AC input at the service panel are all off before making AC connections to the Synchron inverter system. 4. If not previously done, remove knockouts for AC Input and AC Output in the top of the Synchron inverter system (See Figure 1 in Section 104.1). -
Page 12: 108. System Start-Up Procedure
Start Up. 1. Make sure the front cover/door is installed and secured shut. 2. Turn on the input circuit breaker in the building service panel serving as the AC disconnect to the Synchron system. 3. Open the front access panel so that the input/output circuit breakers within the Synchron unit are accessible. -
Page 13: 200. Status Indicators
200. STATUS INDICATORS The Synchron system is equipped with 3 LED indicators, and an audible alarm, showing the operating mode of the inverter, and also to alert you of any possible abnormal conditions. Depending on which of the LEDs are On, Off, or Blinking, will indicate a very specific condition. -
Page 14: 300. Maintenance
Simply depress the button and hold to test the inverter at anytime. Once released, the Synchron will revert back to standby operation; this may take a few seconds to allow the unit to synchronize back to... -
Page 15: 300.4 Battery Maintenance And Replacement
4. Align the cables on the battery terminals so that the cable lug will not contact any part of the cabinet even if the battery is moved. Keep the cable away from any sharp metal edges. 5. Install the battery cables so they cannot be pinched by the battery cabinet or the Synchron inverter system cover/doors. - Page 16 Lead-Calcium cells are the most common type of battery used today in standby equipment. By design it is as maintenance free as a battery can be. Coupled with the diagnostic and self-testing capabilities of the Synchron system, these batteries provide one of the most reliable and carefree inverter systems available today. It is recommended, however, that some simple steps be taken to increase system life and maximize reliability: •...
-
Page 17: 301. Warranty Information
During or after installation, Dual-Lite’s Systems Technical Support Center is available to provide expert assistance. Our service representatives are available to answer customers’ questions or solve their problems. Toll-Free Number 1-800-848-6439. A toll-free phone has been set up for Synchron technical assistance. The number is: Service representatives are available during normal working hours (EST). - Page 18 Notes...
- Page 19 Notes...
- Page 20 A Hubbell Lighting, Inc. brand with representatives' offices in principal cities throughout North America. Copyright © Dual-Lite. All Rights Reserved. Content subject to change without notice. Printed in U.S.A. 0602139 Rev E 4/20...
