PE0601300

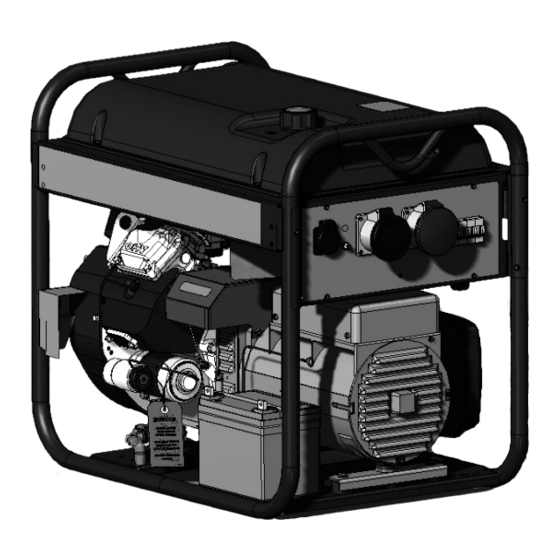

Electric Generator
Insert
Thank you for selecting a Powermate® Generator. The
Powermate® generator has been made to supply reliable,
portable electrical power when utility power is not
available. We hope you will enjoy your new generator.
Welcome to our worldwide family of Powermate®
generator users.
IMPORTANT – Please make certain that persons who
are to use this equipment thoroughly read and
understand these instructions and any additional
instructions provided prior to operation.
Pramac America, LLC
1-800-445-1805
4970 Airport Road
P. O. Box 6001
www.powermate.com
Kearney, NE 68848
© 2009 Pramac America, LLC. All rights reserved.
Powermate ® is a registered trademark of Pramac America, LLC.
www.powermate.com
01/09 0066909
Advertisement
Table of Contents
Related Manuals for Powermate PE0601300
Summary of Contents for Powermate PE0601300
- Page 1 Pramac America, LLC 1-800-445-1805 4970 Airport Road P. O. Box 6001 www.powermate.com Kearney, NE 68848 © 2009 Pramac America, LLC. All rights reserved. Powermate ® is a registered trademark of Pramac America, LLC. www.powermate.com 01/09 0066909...
- Page 2 MAJOR GENERATOR FEATURES * 25 HP Subaru OHV engine * Cast-iron cylinder sleeve * Low oil sensor * Receptacles on control panel * Electric Start * 8 gallon plastic fuel tank CONTROL PANEL RECEPTACLES TYPE CONFIGURATION DESCRIPTION SCHUKO 10/16A 250VAC IP54 WITH PROTECTED RECEPTACLES SINGLE PHASE 230V 2P + T 32A 230VAC IP44...
- Page 3 ELECTRIC START WIRING WARNING: Batteries contain sulfuric acid (when filled). May contain explosive The generator is equipped with electric start. An “Off-On- gasses. Always abide by safety warnings Start” rotary key switch is provided on the recoil end panel. All provided with the battery.
- Page 4 GENERAL TERMS OF WARRANTY The Manufacturing Company warrants the products put on the market with the brands of its own property and/or subsidiary companies', in compliance with terms and conditions provided for by the law in force. In particular, the warranty has a 12-month validity as from the date of the product purchase by the user-customer, and such date is that specified on the purchase tax record.
- Page 5 PARTS DRAWING English...
- Page 6 PARTS LIST REF. PART DESCRIPTION 0066901 Carrier, assembly, full 0066904 Panel, wired complete Note C Fuel tank Assembly Note A Engine, 25hp Subaru 0057254 Nut, hex flg 5/16-18 0056231 Cap Fuel w/Gauge 6” 0064607 Assy, deflector 0056427 Assy, Stator bracket 0055620 Washer, flat .42 x 1.5 0062503...
- Page 7 Note B: These are standard parts available at your local hardware store. Note C: Contact your nearest Powermate ® Service Center for replacement fuel tanks. WARNING: To avoid possible personal injury or equipment damage, a registered electrician or an authorized service representative should perform installation and all service.
