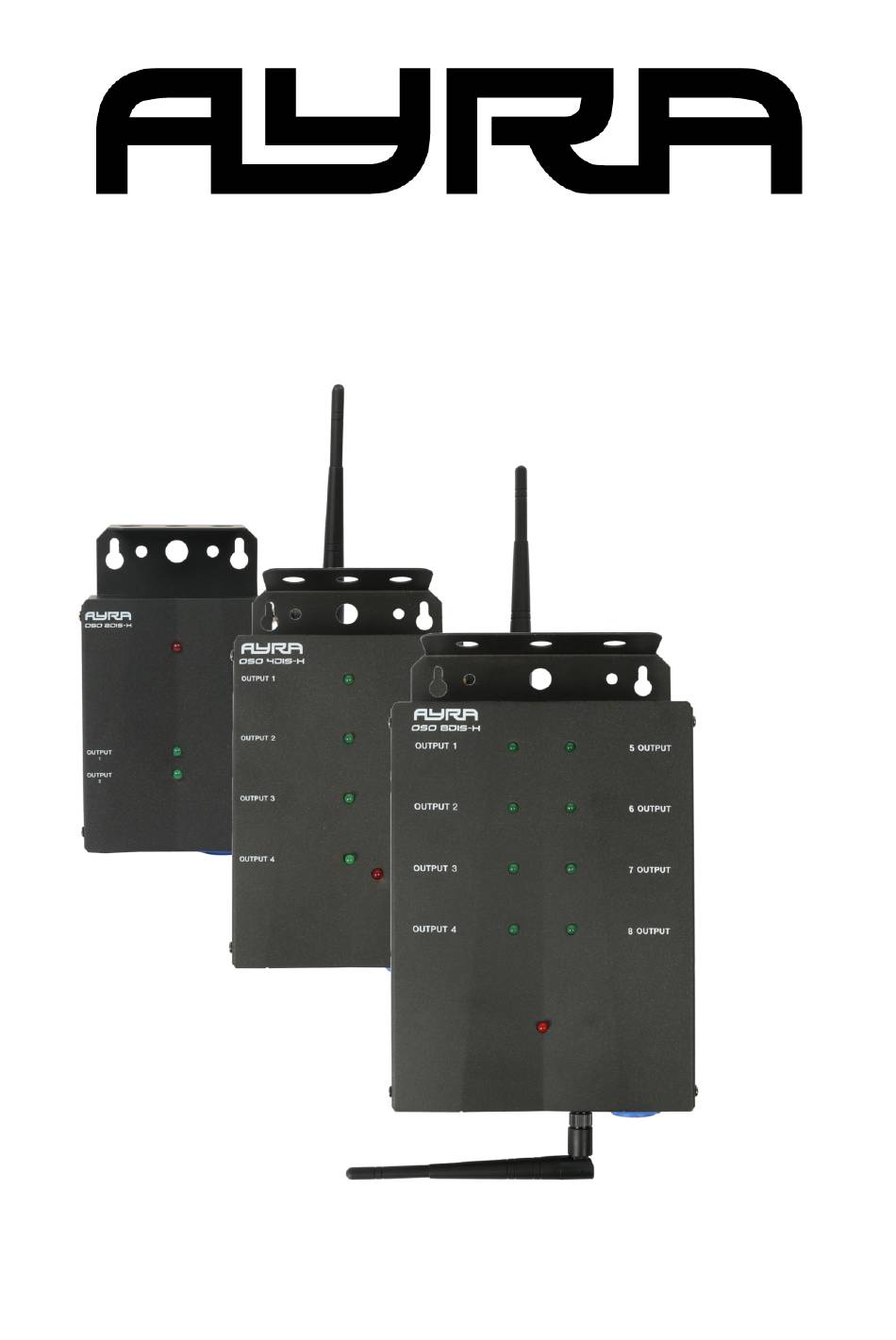

- Page 1 OSO DIS-H wireless DMX splitters (OSO 2DIS-H, OSO 4DIS-H, OSO 8DIS-H) User manual The information and illustrations shown in this user manual are subject to change without notice. User manual version: 2.0 Creation date + author initials: 27-01-2016 RV Revision date + author initials: 23-07-2016...
- Page 2 If you encounter any problems during unpacking, installation or use, contact your local dealer for assistance. The products in the OSO DIS-H series work together with the OSO W-D setup. This way, upon arrival of the wireless signals, the signal can be split into several isolated outputs. This gives users the flexibility to make multiple DMX groups without having to route cables to and from every fixture.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from damp or wet conditions! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC current. Connecting this device to power outlets with other voltages may result in permanent damage and/or hazardous situations, like fires or electric shocks! WARNING! Be careful with the operation of this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in ways other than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
- Page 5 Indoor use only: This device is designed to only be used indoors. The maximum ambient temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit) Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address. If you wish to return a product for a refund or repair, please contact your local dealer for an RMA (Return Material Authorisation) The information and illustrations shown in this user manual are subject to change without notice.
-
Page 6: Box Contents
Box contents Box contents 1x wireless DMX splitter (OSO 2DIS-H, OSO 4DIS-H or OSO 8DIS-H) 1x Powercon to Schuko cable 1x antenna Unit and accessory inspection - If the unit is not going to be used for a longer period of time, disconnect it from the power supply and store it in a dust-free environment. -
Page 7: Device Overview

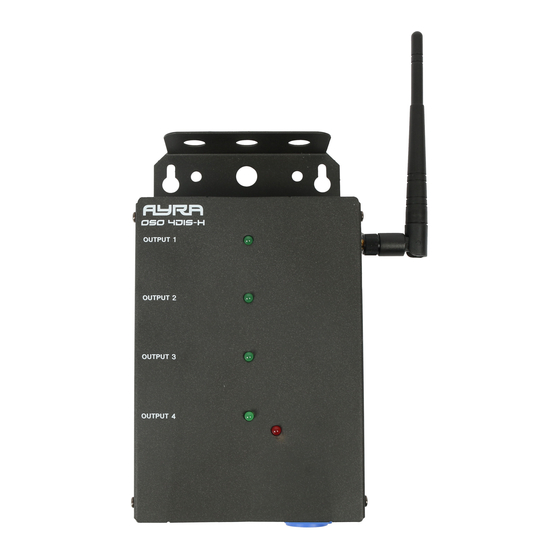

Device overview Please note that the images below may differ from your actual product. The OSO 2DIS-H is shown below and is equipped with the same connections as the 4DIS-H and 8DIS-H, apart from the extra isolated DMX outputs. It is possible that the other models have certain characteristics positioned somewhere else on the device. - Page 8 Setting up and using the OSO DIS-H OSO DIS-H antenna Please unpack the unit and all accessories before mounting the included antenna. Mount the antenna on the antenna connector by turning it clockwise. The antenna can be bent for better positioning once it has been mounted.
- Page 9 As every user has a different situation and application, Ayra cannot ensure problem-free operation, because any number of unpredictable influences could alter the reliability.
- Page 10 fixture frequently by using the following check list: - All screws must be mounted tightly. - Check all screws and metal parts for corrosion. No visible corrosion should be present. - The exterior of your fixture must be in optimal condition. Check your fixture for dents, cracks or missing parts.
- Page 11 This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions. The troubleshooting section applies to the Ayra OSO wireless DMX products. It is possible that not all the described problems, causes and solutions apply to your situation as details may vary from product to product.
- Page 12 people and/or objects are not blocking the signal path. Decrease the distance between the transmitter and receiver DMX stability problem Apply a DMX terminator (connector with 110-ohm resistor between pins 2 and 3) on the DMX output of the last connected lighting fixture DMX wired signal strength Apply a DMX booster or splitter...
-
Page 13: Technical Specifications
(e.g. in theatre environments). Ayra chooses to inform the user about the theoretical max. operating distance as a reference, but please be aware that similar ideal circumstances will usually never be present during actual and expected use of the product without signal drops.
