Bioland T 103 Quick Start Manual

FAST DIGITAL THERMOMETER
Model T 103

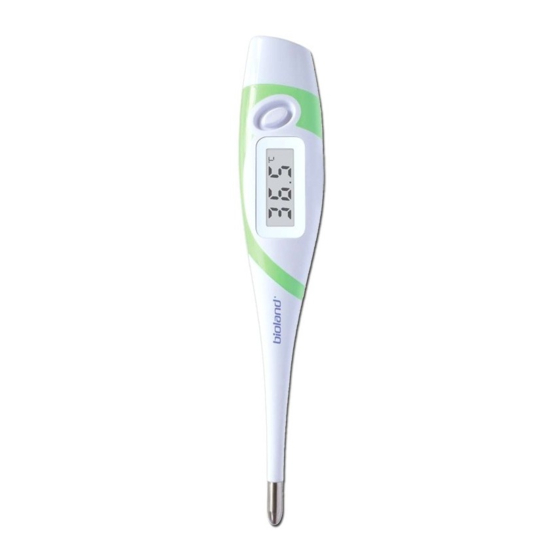

DESCRIPTION OF THIS PRODUCT
Measuring sensor
We congratulate you on your purchase of this thermometer. To correctly utilize all
the advantages of this product, you should familiarize yourself with these operating
instructions before using the thermometer the first time. Then keep these
instructions in a safe place for future reference.
SPECIAL FEATURES
Maximum thermometer: In each case the highest measured temperature is
•
displayed until the appliance switches off.
Acoustic signal:
indicates appliance ready for use and
• 《
measurement completed .
《 》
Automatic self-test: guarantees a specified measuring accuracy for each
•
temperature reading! ERR error is immediately indicated if any deviation
《 》 ﹙ ﹚
is registered.
Temperature measurement: up to 10 seconds fast measurement of the body
•
temperature reading.
Digital display: for temperature changes as minor as 0.1 .
•
Memory: automatic storage of last measured temperature.
•
Automatic switchoff: after approx.10 minutes-for longer battery life.
•
100% waterproof: can be completely immersed for cleaning.
•
Flexible tip: can be bent up to 45 .
• °
Battery: 1.5/1.55V
•
IMPORTANT SAFETY INSTRUCTIONS
The thermometer is suitable exclusively for measurement of the body
•
temperature!
The minimum measurement time until the signaling tone [beep] must be
•
maintained without exception!
The thermometer contains small parts (battery, etc.) that can be swallowed by
•
children. Therefore never leave the thermometer unattended to children.
Protect the thermometer from hitting and striking!
•
Avoid bending the tip more than 45 !
• °
Avoid ambient temperatures above 60 .NEVER boil the thermometer
• ℃
• Use only the commercial disinfectants listed in the section cleaning
disinfecting to clean the thermometer. The thermometer must be intact when
》
immersed in liquid disinfectant.
Warning﹕The thermometer contains a long-life battery. For disposal, please
comply with local regulations for special waste.
• The manufacturer recommends to verify the accuracy by an authorized
laboratory every 2 years.
ON/OFF button
Display field
》
℃
﹗
and
《
TURNING ON THE THERMOMETER
To turn on the thermometer, push the button over the display window; a short
signaling tone [beep] signals thermometer ON. A display test is performed by
《
tuning on all symbols for about 1 second, then display last measurement memory
(only valid to an successful last measurement),
appear at the upper right of the display. The thermometer is now ready for use.
FUNCTION TEST
Proper functioning of the thermometer is tested automatically each time it is turned
on. If a malfunction is detected(measurement inaccuracy), this is indicated by
ERR on the display, and a measurement becomes impossible. In this case, the
《 》
thermometer must be replaced.
BATTERY REPLACEMENT
When the symbol appears in the lower right of the display, the battery is
《 》
exhausted and needs replacing. For the battery replacement please remove the
compartment lid of the thermometer. Replace the exhausted battery by positioning
the + at the top. Make sure a battery of the same type is on hand. Batteries can be
purchased at any electrical goods shops. For battery disposal please refer to
safety instructions .
《 》
USING THE THERMOMETER
During a measurement, the current temperature is displayed continuously. The
symbol flashes during this period of time. If the signaling tone sounds(beep-
《 ℃ 》
beep-beep-beep 10 times) and the is no longer flashing, this means that the
《 ℃ 》
measured temperture already reached to a stable level, completed measurement,
thermometer is ready for reading. To prolong the life of the battery, turn it off after
use by pressing the operating button briefly, otherwise the thermometer will
automatically turn off after about 10 minutes.
STORAGE OF MEASURED VALUES
This device stores the last reading automatically. When you turn on the device, it
displays the last reading automatically right after the display check.
MEASURING METHODS
In the mouth (oral)
Position the thermometer in one of the two pockets under the tongue, to the left or
right of the root of the tongue, The measuring sensor must be in good contact with
the tissue. Close your mouth and breath evenly through the nose to prevent the
measurement from being influenced by inhaled/exhaled air.
Approx. measuring time: 20 seconds.
In the anus (rectal)
This is the most reliable measuring method, and is especially appropriate for
infants and small children. Carefully insert the tip of the thermometer 2 to 3 cm
into the anal aperture.
Approx. measuring time: 10 seconds.
In the armpit (axillary) .
From a medical viewpoint, this method will always provide inaccurate readings,
and should not be used if precise measurements are required.
Approx. measuring time: 30 seconds.
》
an Lo and a flashing
《 》 《 ℃ 》
