Summary of Contents for City Theatrical RadioScan 5988

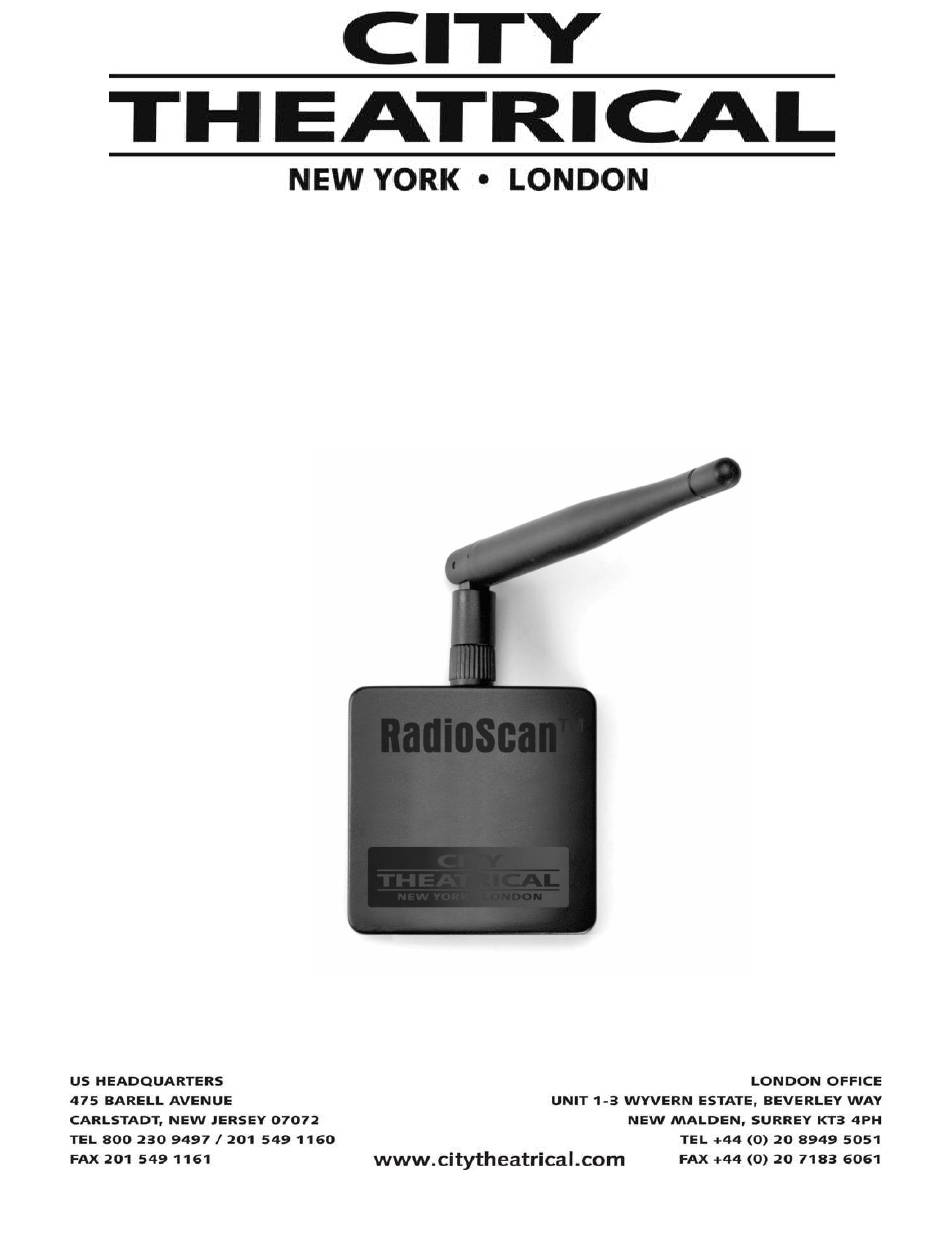

- Page 1 RadioScan™ Spectrum Analyzer P/N 5988 User’s Manual Rev 1.0 © 2020 City Theatrical, Inc. Made in USA...
-
Page 2: Table Of Contents
5988 RadioScan Spectrum Analyzer Table of Contents Foreword ......................3 Compliance Requirements ...................3 Introduction ......................4 Specifications ....................... 7 Using RadioScan ....................7 Troubleshooting ....................16 Customer Service ....................16 List of Tables Table 1: Part Number ....................5 Table 2: Physical Characteristics ................7 Table 3: LED Indicator Light Colors................ -
Page 3: Foreword
5988 RadioScan Spectrum Analyzer 1 Foreword 1.1 Safety Notice This product is designed for use in dry locations only. Exposure to rain or moisture may cause damage. 2 Compliance Requirements The 5988 is compliant to the following standards: CE: EMC Directive of EU 2014/30/EU Low Voltage Directive of EU 2014/35/EU FCC: CFR 47 Part 15 Subpart B, Class B ICES-003 (Issue 6), Class B... -
Page 4: Introduction
RadioScan can help IT departments setup, maintain, and troubleshoot their wireless installations. ® For users of City Theatrical Multiverse wireless DMX/RDM products, RadioScan will guide you in creating the optimum broadcast plan for your production by helping choose the best SHoW ID based on the number of universes being broadcast and the best area of the spectrum on which to broacast. -
Page 5: List Of Tables Table 1: Part Number
5988 RadioScan Spectrum Analyzer 3.2 Part Number Table 1: Part Number Part # Description 5988 RadioScan™ Spectrum Analyzer... -
Page 6: List Of Figures Figure 1: Product Top, Bottom And Side
5988 RadioScan Spectrum Analyzer 3.3 Product Detail Top/bottom diagram shown to scale. 4.5" (114.3mm) 1.187" (30.15mm) 2.0" (50mm) 2.0" (50mm) USB-C Port Indicator Light 0.5" *Product side view shown (12.7mm) smaller than actual size. Figure 1: Product Top, Bottom and Side... -
Page 7: Specifications
Display resolution 800x600 Wi-Fi Radio Internal or USB Wi-Fi adaptor USB Port 1.1 or higher Product Information Configuration City Theatrical RadioScan software program Use Environment Indoor Warranty One year Compliance FCC / IC / CE / RoHS 5 Using RadioScan 5.1 Download RadioScan Software... -
Page 8: Table 3: Led Indicator Light Colors
5988 RadioScan Spectrum Analyzer 5.4 RadioScan Dongle Indicator Lights The RadioScan dongle has one multicolor LED indicator light that can inform you of various functions, as follows. Table 3: LED Indicator Light Colors Powered, no connection to computer Green Powered, connected to computer Blue Powered, connected, and application is connected Flashing Blue... - Page 9 Help -User Manual Provides a link to the 5988 RadioScan product manual -City Theatrical website Provides a link to the CTI website -Update Firmware Updates the firmware in the RadioScan dongle. Note: The latest RadioScan software application can be found on the Downloads tab of the RadioScan webpage on the City Theatrical website.
- Page 10 5988 RadioScan Spectrum Analyzer Wi-Fi Chan./Zigbee Chan. Toggles the X axis at the top of the screen between Wi-Fi channels and Zigbee channels. Multiverse SHoW IDs Opens a table that shows the relationship of Multiverse SHoW IDs to the spectrum, and helps to choose the optimum area of the band on which to broadcast.
- Page 11 5988 RadioScan Spectrum Analyzer 5.7 Spectrogram View The default view of the RadioScan program is the Spectrogram view. The Y axis represents the amplitude of the radio energy on any frequency across the X axis. The cross hair cursor shows information as you move it around the screen. The crosshairs of the cursor show the frequency across the X axis, the amplitude of the point where the cursor is on the Y axis, the density of that frequency, the current amplitude reading of that frequency, and the average, and maximum amplitudes over the previous two minutes,...
- Page 12 5988 RadioScan Spectrum Analyzer Notes can be added in Spectrogram view. Place your cursor at the spot you want to add a note (anywhere on the screen) and left click your mouse. Enter a note of unlimited length. Click OK and the note will be pinned to the screen starting at the point of your mouse click.
- Page 13 5988 RadioScan Spectrum Analyzer 5.9 Multiverse IDs The Multiverse IDs feature is for users of City Theatrical Multiverse wireless DMX, and will describe the SHoW IDs that may be selected for various areas of the band (either 2.4GHz or 900MHz).
- Page 14 5988 RadioScan Spectrum Analyzer Begin your thought process of creating a broadcast plan by deciding how many universes need to be transmitted. SHoW IDs that carry fewer universes travel longer distances and often have more perfect fidelity than SHoW IDs that carry more universes. A good rule of thumb is to choose SHoW IDs with lower universe capacity whenever possible, and spread out your broadcast over more than one radio when possible, such as splitting your broadcast between the 2.4GHz and 900MHz radios on a 5910 Multiverse Transmitter.
-
Page 15: Figure 2: Multiverse Show Id
Figure 2: Multiverse SHoW ID 5.10 Software Updates City Theatrical issues software updates occasionally to add features or to fix bugs. The software version in use on your RadioScan dongle is found on the Help/About section of the RadioScan software program. Software updates are found on the CTI website on the 5988... -
Page 16: Troubleshooting
No Wi-Fi access points Make sure your computer has Wi-Fi hardware and it is turned on. are show 7 Customer Service City Theatrical, Inc. City Theatrical Ltd. Office 31, Units 1-3, Wyvern Estate, Beverley 475 Barell Avenue Carlstadt, NJ 07072...
