Panasonic SDR-SW20P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Camcorder
  5. SDR-SW20P
  6. Service manual

Panasonic SDR-SW20P Service Manual

Sd video camera
Hide thumbs Also See for SDR-SW20P:
Table of Contents

Advertisement

Quick Links

Download this manual
SDR-SW20P
Model No.
SDR-SW20PC
SDR-SW20PL
SDR-SW20E
SDR-SW20EB
SDR-SW20EE
SDR-SW20EF
SDR-SW20EG
SDR-SW20EP
SDR-SW20GC
SDR-SW20GN
SDR-SW28GK
Vol. 2
Colour
(S)...........Silver Type
(R)...........Red Type
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.

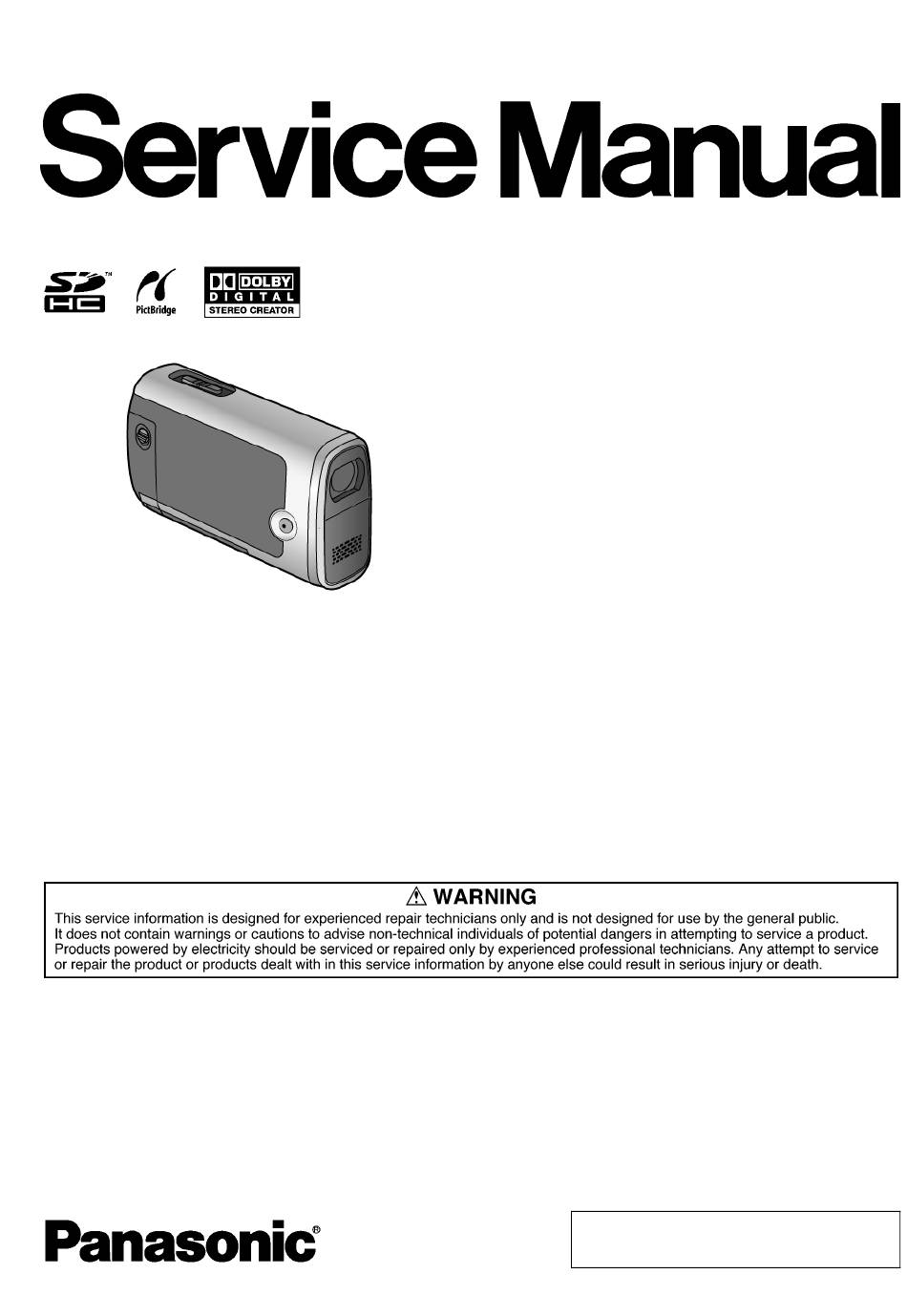

ORDER NO. VM0801004CE
SD Video Camera
B27

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SDR-SW20P

Summary of Contents for Panasonic SDR-SW20P

  • Page 1 ORDER NO. VM0801004CE SD Video Camera SDR-SW20P Model No. SDR-SW20PC SDR-SW20PL SDR-SW20E SDR-SW20EB SDR-SW20EE SDR-SW20EF SDR-SW20EG SDR-SW20EP SDR-SW20GC SDR-SW20GN SDR-SW28GK Vol. 2 Colour (S)...Silver Type (R)...Red Type © 2008 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu-...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precaution -------------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4 2.2.

  • Page 3: Safety Precaution

    1 Safety Precaution 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure 1.) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 5: Caution For Ac Cord(For Eb

    2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 6: How To Replace The Lithium Battery

    2.4. How to Replace the Lithium Battery 2.4.1. Replacement Procedure 1. Remove the FRONT PCB. (Refer to Disassembly Procedures.) 2. Remove the Lithium battery (Ref. No. “B6801” at component side of FRONT PCB) and then replace it into new one. NOTE: This Lithium battery is a critical component.

  • Page 7: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 8: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.3. How to Define the Model Suffix (NTSC or PAL model) There are six kinds of SDR-SW20/SW28. • a) SDR-SW20P • b) SDR-SW20PC • c) SDR-SW20E/EB/EF/EG/EP • d) SDR-SW20EE • e) SDR-SW20GN • f) SDR-SW20PL/GC, SDR-SW28GK What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mounted on Main PCB.

  • Page 9: Specifications

    4 Specifications For P/PC/PL areas For other areas...

  • Page 11: Service Fixture & Tools

    5 Service Fixture & Tools 5.1. When Replacing the Main PCB After replacing the MAIN PCB, be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-PAVC” web-site in “TSN system”, together with Maintenance software. 5.2.
  • Page 12 3.The voltage being indicated on the schematic diagram is measured in "Standard-Playback" mode when there is no specify mode is mentioned. Model No. SDR-SW20P SDR-SW20EF 4.Although the voltage and waveform available on here is measured with standard frame, it may be differ from actual measurement due to modification of circuit and so on.

  • Page 13: S2.1. Main P.c.b

    S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1.

  • Page 14: S3. Block Diagram

    S3. Block Diagram S3.1. System Control Block Diagram IC6001 PW CPU VDD (SYSTEM CONTROL) IC6004 JK4001 TELE HI (MULTI JACK) (EEPROM/32K-bit) REGD3V (2.9V) CL2501 CL2502 PJ3/TCOIN REMOCON REGD3V CL6039 TELE LOW CL6038 (1.93V) CL2503 CL2504 PG1/RXD1 CL6034 P70/ANA0 WIDE LOW PG0/TXD2 Q6501 (0.97V)

  • Page 15: S3.2. Video/Audio Signal Process Block Diagram

    S3.2. Video/Audio Signal Process Block Diagram IC3401 (SDRAM/512M-bit) IC601 (LCD CONTROLLER) 512MBit BANK0 BANK2 (4Mx32bitx4pcs) CKV1 STV1 BANK1 BANK3 COLUMN DECODER DECODER Y DECODERS I/O BUFFER & GATE ADDRESS BUFFER & REGISTER TIMING & MODE REGISTER PCG1 CKH2 DATA ADDRESS CTL SIG CLKIN CKH1...

  • Page 16: S3.3. Sensor Block Diagram

    S3.3. Sensor Block Diagram IC291 (CCD IMAGE SENSOR) IC302 (TG/AFE) FP6931 PW CCD-6R5V FP6931 PW CCD12V Q291 ADC IN VOUT 10bit USER CCD IN To VIDEO FP6931 LOGIC 10bit (BUS9 ADIN0~9) CLAMP SCAN SP1,SP2,ADCK MAS/SLV To SYSCON REGD3V (CG RST) FP6931 OBP,PBLK PW AF5V...

  • Page 17: S3.4. Lens Drive Block Diagram

    S3.4. Lens Drive Block Diagram IC6001 (SYSTEM CONTROL) QR6002 K4 P52/A2 FP6971 ZLED CONT P50/A0 ZENC P51/A1 FLED CONT FENC ZOOM ENC FOCUS ENC PD7/TB15OUT FILTER CL701 H19 P71/ANA1 IC701 (LENS DRIVE) REFI EXT1 P54/A4 REFO EXT2 P55/A5 FP6971 HOLEOUT- HOLEIN+ EIR+ W18 PD6/TB14OUT...

  • Page 18: S3.5. Power Block Diagram

    S3.5. Power Block Diagram PW NOREG CL1011 RL1211 PW REGA5V CL1501 PW AF5V RL1001 PW VB5V JK6352 IP6351 Q1412 PW LCDBL5V JACK To SYSCON Q1413 (LCD BL ON H) CL1031 PW REGD3R2V CL1511 D1 D1 D2 D2 Q1521 PW SD3R2V IP1511 IC1001 S1 G1 S2 G2...

  • Page 19: S4. Schematic Diagram

    S4. Schematic Diagram S4.1. Interconnection Diagram FP6001 JACK PCB LCD UNIT (FOIL SIDE) FP8102 MONITOR PCB REAR OPERATION (FOIL SIDE) SPEAKER UNIT BATTERY FP8101 LENS -6R5V UNIT P6901 FP6961 PS6901 FP6905 UINT PW ADP+ D GND PW ADP+ D GND PW ADP+ ADP- PW ADP+...

  • Page 21: S4.2. Power Schematic Diagram

    S4.2. Power Schematic Diagram SDR-SW20 Series Power Section (Main P.C.B. (1/12)) Schematic Diagram RL1001 PW_+B D_GND D1221 B0JCMD000022 D1222 B0JCMD000022 C1013 C1001 10u[28] R1015 C1014 R1002 CL1002 R1001 D1JBR102A006 D1JB1R26A005 PW_NOREG R1212 L1021 G1C100MA0203 PW_3V_OUT C1023 R1003 D1JBR135A006 R1105 18K[D] TO VIDEO F1G0J1050007 R1025...
  • Page 22 SDR-SW20 Series Power Section (Main P.C.B. (1/12)) Schematic Diagram PW_VB5V R1211 CL1011 RL1211 PW_REGA5V L1211 $[G1C4R7MA0072] B0JCMD000022 PW_AF5V Q1412 2SB0970X0L R1012 PW_LCDBL5V D1BA2703A007 Q1411 C1013 R1413 B1ADGD000005 R1013 PW_LCD5V 12K[D] R1411 R1414 C1412 R1415 R1412 R1015 6800 R1014 Q1413 2SC584600L LCD_BL_ON_H 56K[D] C1014...
  • Page 23 18K[D] TO VIDEO F1G0J1050007 R1025 PW_POW_VREF C1107 C1103 F1G0J1050007 C1025 C1101 R1106 C1105 10u[28] 0.01 68K[D] INV7 INV2 [36]NON5 [25]INV4 F1G0J1050007 INV7I INV1 [37]INV6 [24]INV3 C1011 HS7H PGND1 IC1001 HS7L C1ZBZ0003630 R1011 OUT7 D1JBR036A006 L1041 PGND567 G1C100MA0024 LX21 L1011 HS6L PGND2 G1C4R7MA0024 CL1102...
  • Page 24 IC1321 IC1322 C0DBGFD00018 C0CBCAC00373 Q1421 2SB0970X0L R1025 PW_LCD3V R1024 R1421 56K[D] C1421 C1025 R1422 1500 CL1041 L1041 G1C100MA0024 PW_REGD1R2V R1042 100K[D] C1043 R1043 R1045 R1044 D1BA2003A007 C1044 L1051 D1051 Q1351 CL1251 G1C330MA0203 B0JCMD000022 L1251 $[G1C4R7MA0076] R1356 B1ADGD000005 R1251 PW_CAM12V R1052 R1355 PW_CAM-6R5V D1BA7503A007...

  • Page 25: S4.3. Video Schematic Diagram

    S4.3. Video Schematic Diagram SDR-SW20 Series Video Section (Main P.C.B. (2/12)) Schematic Diagram TO POWER PW_REGD1R8V PW_REGD3V PW_1R2V2P PW_REGD1R2V LB3402 C3401 PW_REGD3R2V LB3401 J0JYC0000059 J0JHC0000078 10u[28] PW_A3V D_GND TO LCD S_CLK_LCD S_LCD_CS S_DAT_LCD PW_1R8V2P VBUS_CURDE_L FL3401 1u[FL][18] PW_3R2VATR USB_HOST_INT C3402 VBUS_ON_H C3462 10u[28]...
  • Page 26 SDR-SW20 Series Video Section (Main P.C.B. (2/12)) Schematic Diagram LB3405 J0JHC0000078 C3463 10u[28] IC3401 C3ABSJ000003 C3471 0.0 1 BUS48_DR_D0 BUS48_DR_D15 DQ15 CLK30_RTCK VDDQ VSSQ BUS48_DR_D1 BUS48_DR_D14 DQ14 BUS15_DBGA BUS48_DR_D2 BUS48_DR_D13 DQ13 BUS15_DBGR VSSQ VDDQ BUS48_DR_D3 BUS48_DR_D12 C3405 DQ12 0.01 BUS48_DR_D4 BUS48_DR_D11 BUS15_EXTRGO DQ11...
  • Page 27 XDREQ1 R3418 CH3410 CH3412 G_ATARES XSOF D1H447320001 BUS8_ATCS3 VSSIO3 RX3402 BUS8_ATCS1 VDDIO4 G_ATARES BUS8_ATDA2 XATARESET/P17 BUS8_ATCS3 BUS8_ATDA1 XATACS3/P16 BUS8_ATCS1 BUS8_ATDA0 XATACS1/P15 BUS8_ATDA2 BUS8_ATARD ATADA[2]/P14 BUS8_ATDA1 BUS8_ATAWR ATADA[1]/P13 BUS8_ATDA0 BUS8_ATDRQ ATADA[0]/P12 CH3413 BUS8_ATARD CLK8_ATADMA XATARD/P11 CH3414 IC3400 BUS8_ATAWR BUS8_ATD15 XATAWR/P10 MN2WS0056SP1 BUS8_ATDRQ BUS8_ATD14 ATADMARQ/P43...
  • Page 28 VSSIO8 BUS15_PIP2 AMD4 ADM[4] BUS15_TCK AMD5 ADM[5] BUS15_TRST AMD6 ADM[6] BUS15_TMS AMD7 ADM[7] BUS15_TDO AMD8 ADM[8] BUS15_TDI AMD9 ADM[9] S_AMMP_RXD AMD10 ADM[10] S_AMMP_TXD AMD11 ADM[11] AMD12 ADM[12] TO SYSCON AMD13 ADM[13] AMD0 IC3400 AMD14 ADM[14] AMD1 MN2WS0056SP1 AMD15 ADM[15] AMD2 [AMMP] C3446 VDDIO8...

  • Page 29: S4.4. Sd Holder Schematic Diagram

    S4.4. SD Holder Schematic Diagram R3921 CARD_PRO TO VIDEO R3922 CARD_DET CARD_PRO CLK24_SDCARD CARD_DET PW_SD3R2VRCA PW_SD3R2VRCA CLK24_SDCARD R3920 BUS12_SDDAT1 R3919 RX3901 BUS12_SDDAT0 C3910 R3917 D1H81034A024 F3F0J476A032 15[18] CLK12_SDCMD Q3901 BUS12_SDDAT3 R3918 2SB0970X0L C3913 BUS12_SDDAT2 BUS12_SDAT1C R3902 F1G0J1050007 BUS12_SDDAT1 R3903 BUS12_SDAT0C BUS12_SDDAT0 CLK12_SDCMDC R3904...

  • Page 30: S4.5. Avio Schematic Diagram

    S4.5. AVIO Schematic Diagram TO MIC/IR G_INT_MIC_R1 G_INT_MIC_L1 R3320 L3305 G1C100KA0055 PW_IC3301AVD R3312 R3317 TO JACK TO VIDEO G_AUDIO_L 41 40 LRCK G_AUDIO_R CLK12_MCK C3308 0.22 F1G0J1050007 BCLK MUTET LRCK INTL1 R3316 C3327 SDTI MCLK LOUT R3315 C3318 F1G0J1050007 SDO0 SDTO0 ROUT C3313...

  • Page 31: S4.6. Charge Schematic Diagram

    S4.6. Charge Schematic Diagram C1521 F1H1A105A028 CL1501 TO MAIN_CN TO POWER D1521 PW_ADP_+ B0ECKP000002 PW_ADP_+ PW_+B TO MAIN_CN PW_+B_CH1 B0JCMC000006 D1522 PW_BATT_+_IN ADP_-_GND C1522 CL1502 F1H1A105A028 R1527 D_GND FRAME R1523 R1525 R1526 R1524 4700 4700 TO SYSCON ADP_DET R1551 330K ADP_V ADP_SW R1553...

  • Page 32: S4.7. Lcd Schematic Diagram

    S4.7. LCD Schematic Diagram TO POWER TO MONITOR PW_LCD5V PW_LCD3V LCD_VST D_GND LCD_VCK LCD_EN LCD_HST CLK3_L_CK1_1 R605 CLK3_LCDHCK1 R606 CLK3_L_CK2_1 CLK3_LCDHCK2 LCD_PCG C611 C610 PW_LCD3V LCD_RL LCD_UD BL_CONT LCD_COM LCD_PSIG CKV1 G_LCD_B STV2 G_LCD_R STV1 [64]CKV2 [48]CKH3 G_LCD_G [47]CKH4 TO VIDEO VDD1(2.85V) S_LCD_CS BLCONT1...

  • Page 33: S4.8. Main Cn Schematic Diagram

    S4.8. Main CN Schematic Diagram SDR-SW20 Series Main CN Section (Main P.C.B. (7/12)) Schematic Diagram TG/AFE TO TG_AFE NTSC_PAL_SEL SYSCON NTSC_PAL_SEL S_CAM_AFE_CS BUS9_CAMVD S_CAM_AFE_CS TO CHARGE D_GND S_CAM_CG_CS S_CAM_AFE_CS S_CAM_CG_CS CHG_SW S_CGAFE_DTO S_CAM_CG_CS S_CGAFE_DTO CHG_CNT3 S_CGAFE_CLK TO OPE S_CGAFE_DTO S_CGAFE_CLK CHG_CNT2 BUS9_ADIN0 AD_KEY_1...
  • Page 34 SDR-SW20 Series Main CN Section (Main P.C.B. (7/12)) Schematic Diagram TO TG_AFE NTSC_PAL_SEL SYSCON TO SOFT DBG BUS9_CAMVD TO CHARGE PW_CPU_3V S_CAM_AFE_CS TO CHARGE CHG_SW S_CAM_CG_CS CHG_CNT3 ADP_V S_CGAFE_DTO CHG_CNT2 BAT_SW S_CGAFE_CLK CHG_CNT1 CHG_I CG_RST BAT_V For SMT-Checker TO OPE CAM_D3OFF TO SOFT DBG Cam UART-DO[FromPC]...
  • Page 35 BUS9_ADIN1 AMD9 HOLE OUT- G_UNI_COUT HOLE_IN- BUS9_ADIN2 AMD10 HOLE IN- G_UNI_YOUT HOLE_OUT+ BUS9_ADIN3 AMD11 HOLE OUT+ TO VIDEO VIDEO_ADJ HOLE_IN+ BUS9_ADIN4 AMD12 HOLE IN+ S_SDA_AVIO ALC_MAIN- BUS9_ADIN5 AMD13 ALC MAIN- S_AVIO_CS ALC_MAIN+ ALC MAIN+ BUS9_ADIN6 AMD14 S_CLK_AVIO ZENC TO POWER BUS9_ADIN7 AMD15 ZENC...
  • Page 36 BUS9_ADIN1 AMD9 USB_D- USB_D- BUS9_ADIN2 AMD10 PW_NOREG USB_D+ TO AVIO USB_D+ R6914 BUS9_ADIN3 AMD11 PW_SPK3V ADP- BUS9_ADIN4 AMD12 2200 TO LENS DRIVE G_AUDIO_L AUDIO_L BUS9_ADIN5 AMD13 TO VIDEO/SYSCON/FRONT G_AUDIO_R PW_AF3V AUDIO_R BUS9_ADIN6 AMD14 PLUGIN_L PW_REGD3V PW_VB5V PLUGIN_L BUS9_ADIN7 AMD15 G_VIDEO_OUT VIDEO_OUT BUS9_ADIN8 TO LENS DRIVE/TG_AFE/LENS FPC...

  • Page 37: S4.9. Tg Afe Schematic Diagram

    S4.9. TG AFE Schematic Diagram TO CCD R301 G_CCD_IN C310 16V0.1 G_CCDOUT C335 G_CCD_RESET G_H2 PW_IC302AVDD G_H1 TO SYSCON S_CAM_AFE_CS S_CAM_CG_CS S_CGAFE_DTO S_CGAFE_CLK CH305 PW_IC302DVDD CH304 CH302 CH303 M014 CH301 [64]CS C320 16V0.1 [49]CCD_GND DVSS12 TO VIDEO DVSS1 C329 16V0.1 BUS9_ADIN0 DVDD1 IC302...

  • Page 38: S4.10. Lens Drive Schematic Diagram

    S4.10. Lens Drive Schematic Diagram R721 180K TO LENS HOLE_OUT- C718 HOLE_IN+ F1G0J1050007 C733 TO POWER R753 D_GND R713 TO VIDEO ALCPWM R729 4700 TO SYSCON CLK45_2PO CLK45_2PO HOLE_GAIN TO SYSCON LENS_TST1 LENS_DRV_RST R731 330K HOLE_BIAS PWM_BIAS R727 R752 330K R730 C724 C714...

  • Page 39: S4.11. Syscon Schematic Diagram

    S4.11. Syscon Schematic Diagram SDR-SW20 Series Syscon Section (Main P.C.B. (10/12)) Schematic Diagram Q6001 TO POWER 2SB0970X0L PW_CPU_3V PW_REGD3V TO POWER PW_REGD1R5V PW_REGD1R5V (TMP19A63CDXBG0-0102) (TMP19A63F10XBG) IC6001 C2DBLJ000160 TO RTC R6050 1500 S_RTC_DT S_RTC_DO S_RTC_SCK RTC_CS P_OFF MICOM_RST TO POWER D_GND RX6006 D1H81034A024 TO LENS DRIVE...
  • Page 40 SDR-SW20 Series Syscon Section (Main P.C.B. (10/12)) Schematic Diagram D6001 MA3S132E0L BAT_V TO MAIN_CN LCD_RVS LCD_RVS2 ADP_V R6008 10K[D] MICOM_T IC6001 TO POWER C2DBLJ000160 D6003 MA2J11100L CHG_I (TMP19A63CDXBG0-0102) CCD_ON_H (TMP19A63F10XBG) CTL4_ON_H PW_POW_VREF TO RTC MICOM_T LCD_RVS BAT_V TO CHARGE LCD_RVS2 ADP_V BAT_V MICOM_T...
  • Page 41 TO OPERATION POWER_LED1 STANDBYLED1 R6024 TO LENS FENC ZENC R6001 220[18] Z-LED-CONT R6002 220[18] R6016 RX6004 R6025 F-LED-CONT D1H84724A024 RESISTER B_SIDE CL6034 (TMP19A63CDXBG0-0102) CL6035 (TMP19A63F10XBG) CL6036 S_EEPROM_SCK IC6001 S_EEPROM_DO C2DBLJ000160 CL6037 S_EEPROM_DI CL6038 CL6039 CL6040 A_SIDE TO TG/AFE CG_RST BUS9_CAMVD S_CAM_AFE_CS S_CAM_CG_CS S_CGAFE_CLK...
  • Page 42 XREADY UNI_CS HOST_REQ ARM_REQ XRST_ARM CAM_IRQ UPDATE CAM_WAKEUP S_EEPROM_DI CH6005 CH6004 TO RTC LENS DEBUG PW_RTC3R2V Modify Category Variation Type UNIT NO. SDR-SW20P,PC SDR-SW20EG,E,EF SDR-SW20GC SDR-SW20EE SDR-SW28GK VJB03H40 SDR-SW20EP SDR-SW20 SDR-SW20PL SDR-SW20EB SDR-SW20GN NV-S25 SDR-S7P,PC SDR-S7EG,E,EF SDR-S7GC SDR-S7EE SDR-S7GK VJB03H52...

  • Page 43: S4.12. Rtc Schematic Diagram

    S4.12. RTC Schematic Diagram POW_RST TO SYSCON QR2301 S_RTC_DT UNR31A300L S_RTC_SCK IC2301 RTC_CS C0JBAR000432 MICOM_RST MICOM_T P_OFF D2301 MA2SD3200L TO CHARGE VOUT CH2305 CH2304 BATT_T QR2309 UNR31AT00L CTRL PW_RTC3R2V IC2304 C1ZBZ0003465 CH2301 CH2302 MICOM_T (S1T54110F0E000F) F1H1A105A028 TO POWER C2306 P_ON_H /RST [31]ACA_V(IN5) ADP_DET...

  • Page 44: S4.13. Usb Host Schematic Diagram

    S4.13. USB Host Schematic Diagram TO VIDEO VBUS_CURDE_L VBUS_ON_H R3604 R3613 Q3601 TO POWER 0[22] 1R0[22] 2SB0970X0L PW_REGA5V L3601 G1C100KA0124 PW_R3R2V_UH1 PW_REGD3R2V LB3601 PW_R1R8V_UH2 PW_REGD1R8V TO JACK J0JHC0000078 VBUS TO POWER C3608 D_GND F1G0J1050007 R3633 C3609 X3601 C3618 H0J120500042 F1G0J1050007 C3620 BUS8_ATDA2 BUS8_ATDA1...

  • Page 45: S5. Print Circuit Board

    S5. Print Circuit Board S5.1. Main P.C.B. S5.1.1. Main P.C.B. (Component Side) R6906 C6907 R6901 C6906 R1532 R3633 R1535 R1533 C3610 C3317 C3316 L3305 C1532 P6901 C6901 C3611 R1531 C1552 R1512 C3312 R3320 R6900 IP1511 R3316 R3312 C3327 R3631 R6914 R1076 C1511 R1553...

  • Page 46: S5.1.2. Main P.c.b. (Foil Side

    S5.1.2. Main P.C.B. (Foil Side) CL6914 R3413 RX3411 RX3409 CH3414 CH3412 CL1501 R3411 FP6961 FP6905 R3410 R3601 CL6901 RX3412 RX3410 CH3413 C3606 R3409 R1504 R3408 QR3600 CH3411 LB3404 CL1511 CL6913 CH3410 LB3402 CL1071 LB3631 R3412 R3608 VZ6906 RX3402 LB3630 R3609 C3414 R3402 CH3415...

  • Page 47: S5.1.3. Main P.c.b. Address Information

    S5.1.3. Main P.C.B. Address Information Main P.C.B. Integrated Circuit QR3403 Diode Filter C723 C2303 C3481 R320 R1211 R3317 R3616 RX3405 IC301 QR3405 D301 FL301 C724 C2306 C3486 R321 R1212 E-10 R3320 R3628 RX3409 IC302 QR3600 D302 FL3401 C733 C2307 C3487 R322 R1251 R3321...

  • Page 48: S6. Replacement Parts List

    S6. Replacement Parts List Note: 1.* Be sure to make your orders of replacement parts according to this list. 2. IMPORTANT SAFETY NOTICE Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. 3.
  • Page 49 SDR-SW20P-S/R,PC-S/R,PL-S/R,EG-S/R,E-S/R,EB-S/R,EF-S/R,EP-S/R,GC-S/R,GN-S/R,EE-S/R, SDR-SW28GK-S/R vol.2 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks C1071 F1G0J1050007 C.CAPACITOR CH 6.3V 1U VEP03H40A MAIN P.C.B. E.S.D.(RTL) P,PC C1072 F1J1A475A023 C.CAPACITOR CH 10V 4.7U VEP03H40H MAIN P.C.B. E.S.D.(RTL) PL C1073 ECJ0EB1E472K C.CAPACITOR CH 25V 4700P...
  • Page 50 SDR-SW20P-S/R,PC-S/R,PL-S/R,EG-S/R,E-S/R,EB-S/R,EF-S/R,EP-S/R,GC-S/R,GN-S/R,EE-S/R, SDR-SW28GK-S/R vol.2 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks C3429 F1G1C104A080 C.CAPACITOR CH 16V 0.1U C6909 F1G1C104A080 C.CAPACITOR CH 16V 0.1U C3434 F1G1C104A080 C.CAPACITOR CH 16V 0.1U C3435 ECJ0EB1C103K C.CAPACITOR CH 16V 0.01U CX6001 F1L1E103A065 C.CAPACITOR CH 25V 0.01U...
  • Page 51 SDR-SW20P-S/R,PC-S/R,PL-S/R,EG-S/R,E-S/R,EB-S/R,EF-S/R,EP-S/R,GC-S/R,GN-S/R,EE-S/R, SDR-SW28GK-S/R vol.2 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks L1312 G1C4R7MA0073 COIL 4.7UH R321 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K L3302 G1C330MA0111 CHIP INDUCTOR 33UH R322 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K...
  • Page 52 SDR-SW20P-S/R,PC-S/R,PL-S/R,EG-S/R,E-S/R,EB-S/R,EF-S/R,EP-S/R,GC-S/R,GN-S/R,EE-S/R, SDR-SW28GK-S/R vol.2 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks R1422 ERJ2GEJ152 M.RESISTOR CH 1/16W 1.5K R3448 D0YAR0000007 M.RESISTOR CH 1/16W R1481 ERJ2GEJ333 M.RESISTOR CH 1/16W 33K R3451 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K...
  • Page 53 SDR-SW20P-S/R,PC-S/R,PL-S/R,EG-S/R,E-S/R,EB-S/R,EF-S/R,EP-S/R,GC-S/R,GN-S/R,EE-S/R, SDR-SW28GK-S/R vol.2 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks R6050 ERJ2GEJ152 M.RESISTOR CH 1/16W 1.5K R6900 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K R6901 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 R6902 ERJ2GEJ102X M.RESISTOR CH 1/16W 1K...
