Page 1

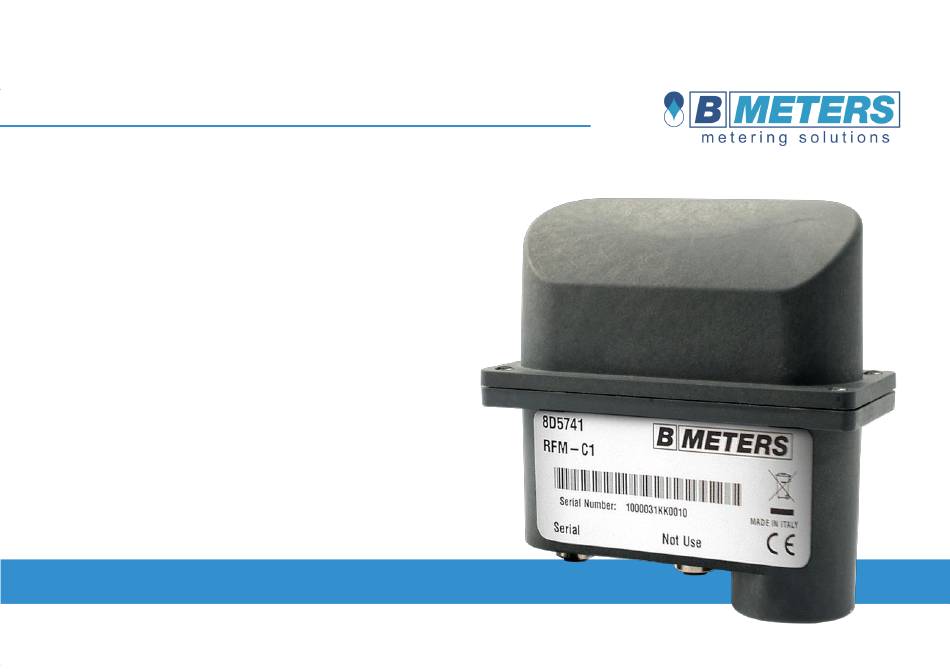

WMBUS\GPRS Concentrator - Device Manual Concentratore WMBUS\GPRS - Manuale del prodotto RFM-C1...
Page 2
RFM-C1- WMBUS\GPRS Concentrator – Concentratore WMBUS\GPRS Device Manual – Manuale del prodotto Indice Introduction - Introduzione ........................................... 3 Features description –Descrizione delle caratteristiche ..............................4 Operations – Messa in funzione ......................................6 2.1 Inserting the SIM – Inserimento della SIM ..................................6 2.2 Connecting to the PC for first configuration –...
Page 3
Device Manual – Manuale del prodotto Introduction - Introduzione The RFM-C1 is a Wireless MBUS concentrator designed to collect data from up to L’RFM-C1 è un concentratore Wireless MBUS progettato per collezionare le letture 300 WMBUS devices. The device is designed to be compatible with every WMBUS di un numero massimo di 300 dispositivi WMBUS.
Page 4
RFM-C1- WMBUS\GPRS Concentrator – Concentratore WMBUS\GPRS Device Manual – Manuale del prodotto 1. Features description –Descrizione delle caratteristiche Technical data Dati tecnici Power Supply – 3.6 Lithium Battery replaceable Alimentazione – Batteria al Litio 3.6V Wireless MBUS protocol – EN13757-4 Protocollo Wireless MBUS –...
Page 5
RFM-C1- WMBUS\GPRS Concentrator – Concentratore WMBUS\GPRS Device Manual – Manuale del prodotto pag. 5...
Page 6
RFM-C1- WMBUS\GPRS Concentrator – Concentratore WMBUS\GPRS Device Manual – Manuale del prodotto 2. Operations – Messa in funzione 2.1 Inserting the SIM – Inserimento della SIM Remove the enclosure screws (it’s necessary a TORX screwdriver) Rimuovere le viti di chiusura del contenitore di alloggiamento (necessario ...
Page 7
For use it and configure the device refer to software configurazione. Per l’utilizzo del software e la configurazione del concentratore manual provide within the software RFM-C1 Configurator. fare riferimento al manuale distribuito con il software RFM-C1 Configurator pag. 7...
