RECREUS EXTRUDER V3 Manual

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
RECREUS
EXTRUDER V3

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXTRUDER V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RECREUS EXTRUDER V3

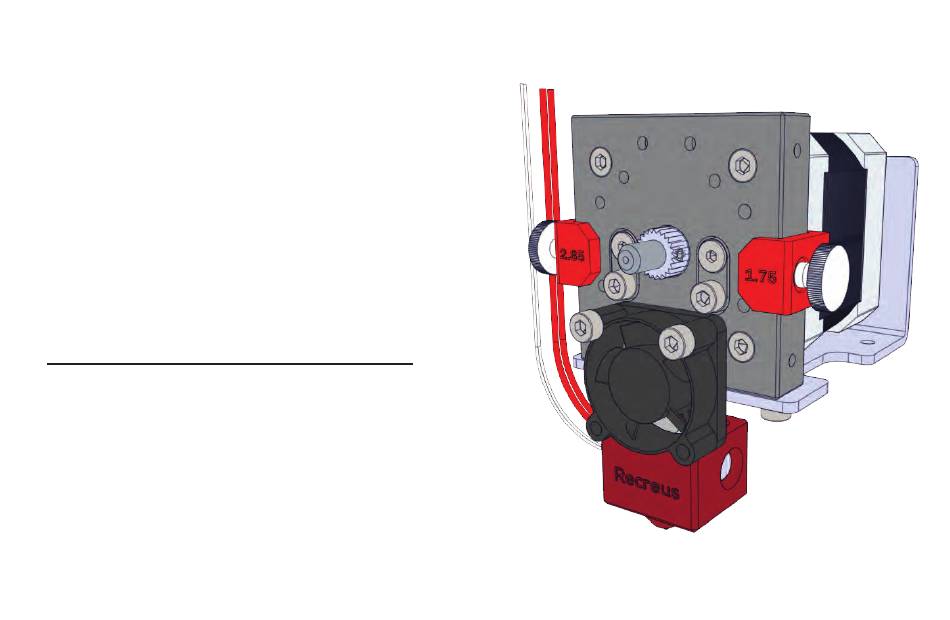

  • Page 1 RECREUS EXTRUDER V3...

  • Page 2: Packing List

    PACKING LIST...
  • Page 3 STEP 1: MOUNT IDLER ARM STEP 2: INSERT BEARINGS AND MOTOR STEP 3: STEP 4: ASSEMBLE EXTRUDER INSERT AND TIGHTEN DRIVE GEAR. BLOCK TO STEPPER MOTOR. STEP 5: STEP 6: INSERT AND TIGHTEN 100k THERMISTOR. INSERT AND TIGHTEN HEATER CARTRIDGE STEP 7 STEP 8: INSERT AND TIGHTEN HOTEND.
  • Page 4 STEP 9: TIGHTEN THUMB SCREW WITH RUBBER REGULATOR MOUNTING OPTIONS PROVIDED UNIVERSAL EXTRUDER MOUNT, THAT ALLOWS TO INSTALL IN ALMOST ANY 3D PRINTER WITHOUT TOO MUCH MODIFICATIONS PRUSA STYLE PRINTERS TOP STYLE EXTRUDER PRINTERS...
  • Page 5 CONFIGURATION STEPS/REV, Set up the following steps per revolution in your firmware (marlin, repetier, sailfish etc) E0 (EXTRUDER) -137 steps/rev (1.8º- 16 Microstepping) -274 step/rev (0.9º-16 Microstepping) -274 steps/rev (1.8º 32 Microstepping) -548 steps/rev (0.9º 32 Microstepping) THERMISTOR TYPE Set up the following thermistor type in your firmware (marlin, repetier, sailfish etc) -Type 0: EPCOS 100K Thermistor...
