?HC 2210 Manual

1 0 A 1 2 0 V A C LO G I C C O N T R O L LE D P O WE R MO D U LE
PAGE 4
One Year Limited Warranty
Hollywood Controls Inc ("the Company")
warrants this HC2210 10A Power Mod-
ule against defects in material or work-
manship for one year from date of origi-
nal purchase. The Company, at it's op-
tion, will repair or replace the compo-
nents and return them to you free of
charge.
This warranty is extended only to the
original purchaser on record with the
Company.
Your remedy is limited to this warranty
policy. This warranty only covers prod-
uct failure that occurs due to defects in
material and workmanship occurring
during the normal expected use of the
product. It does not cover damage
caused by accident, misuse, abuse, lack
of reasonable care, alterations or im-
proper installation.
There are no expressed warranties ex-
cept as described above.
THE COMPANY SHALL NOT BE LI-
ABLE FOR INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES RE-
SULTING FROM THE USE OF THIS
PRODUCT OR ARISING OUR OF ANY
BREACH OF THIS WARRANTY. ALL
IMPLIED WARRANTIES, IF ANY, IN-
CLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DU-
RATION OF THIS EXPRESS WAR-
RANTY. Some states do not allow the
exclusion or limitation of incidental or
consequential damages, or limitations on
how long an implied warranty lasts, so
the above exclusions or limitations may
not apply to you.
No other warranty, written or verbal, is
authorized by the Company. This war-
ranty gives you specific legal rights and
you may also have other rights which vary
from state to state.
For service during the warrantee period
you must first contact the Company for
an Return Merchandise Number (RMA)
number. The Company will help you deter-
mine which part requires service and ask
that you return that component ONLY.
The Company, at it's option, will repair or
replace the components and return them
to you free of charge. All returned com-
ponents must be accompanied by a RMA
number issued by the Company and be
returned by insured prepaid freight.
Products returned without a Company
issued RMA will not be accepted. The
Company is not responsible for merchan-
dise damaged in transit. Evident or con-
cealed damage made in transit should be
reported at once to the delivery carrier
and a claim filed with them.
The Company reserves the right to
change or modify the operation, design,
components and description of this sys-
tem without notice.
H O L L Y W O O D C O N T R O L S I N C .
Toll-free: 888-318-2380
sales@hollywoodcontrols.com
© 2009 Hollywood Controls Inc 04/10 R4
H o l l y w o o d C o n t r o l s I n c .

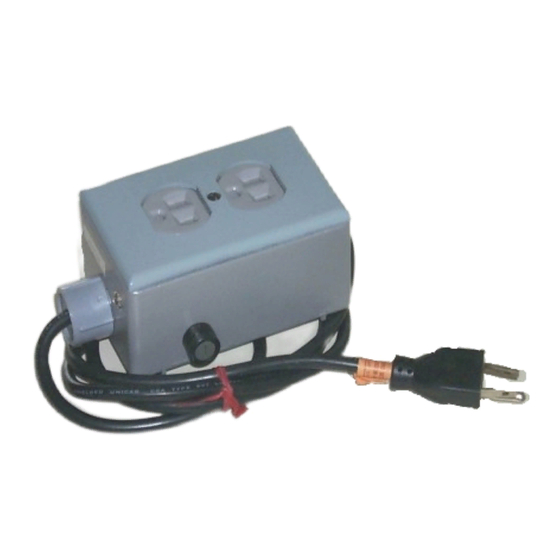

10A 120VAC Logic Controlled
Power Module
Model: HC2210
10A AC Relay Power Module w/Isolated Control
Features:
• 10A AC Relay
• Lightweight Case
• Negative Trigger (contact closure)
Isolated Control
• Fused
• Selectable NO/NC Action on
Upper Outlet
Index:
Safety Precautions 1
General Description 1
Product Description 2
Operation & Use 2
Servicing 3
Warranty 4
Safety Precautions
•
DO NOT alter or remove labels.
•
Keep dry, the Module is not water-
proof.
•
Always remove power from systems
before servicing Module or con-
trolled devices.
•
NEVER DEPEND on logic control to
deactivate controlled system during
setup, maintenance, or repair. Sud-
den power activation could cause
serious personal injury or electrocu-
tion.
General Description
The HC2210 10A 120VAC Power Mod-
ule offers easy control of many AC
appliances, including motors, lighting
and electronics. The unit has a 10A
250V replaceable fuse in the side.
On/off control is provided through a
standard RCA phono-jack. Activation
is asserted simply shorting RCA cen-
ter pin to outer shield. The control
circuit is fully separated from the
controlled AC circuit by low voltage
magnetic isolation.
Components for this System
1. HC2210 Power Module
