Cistermiser sensazone SZ/IF Installation Manual

sensazone
installation guide
1 System requirements

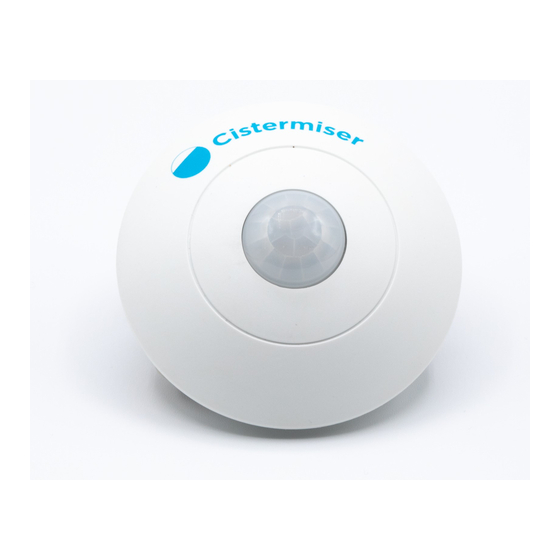

sensazone is an intelligent PIR sensor operated system which controls
the water supply and the light and fan functions in washrooms.
The system features can be used in the following scenarios
Scenario Required control
To control the water supply to one zone, room or area
1
of a washroom (with a single/common entrance).
To control the water supply and lights and fans to
2
one zone, room or area of a washroom (with a single/
common entrance).
To control the water supply to multiple areas of a
washroom simultaneously. Examples include, a
3
washroom divided into different areas and a washroom
with two or more entrances.
To control the water supply, lights and fans to multiple
areas of a washroom (with two or more entrances).
4
0118 969 1611 | sales@cistermiser.co.uk | www.cistermiser.co.uk
Required products
sensazone core product
sensazone core product
A sensazone Interface Module
A sensazone Light and Fan Control
sensazone core product
A sensazone Interface Module
Additional Sensor Kits
Additional Valve Kits
(where applicable, to a maximum of 3 valves per system)
sensazone core product
A sensazone Interface Module
A sensazone Light and Fan Control
Additional Sensor Kits
Additional Valve Kits
(where applicable, to a maximum of 3 valves per system)
1
