Summary of Contents for Sol-Expert group Escape Robot Kit

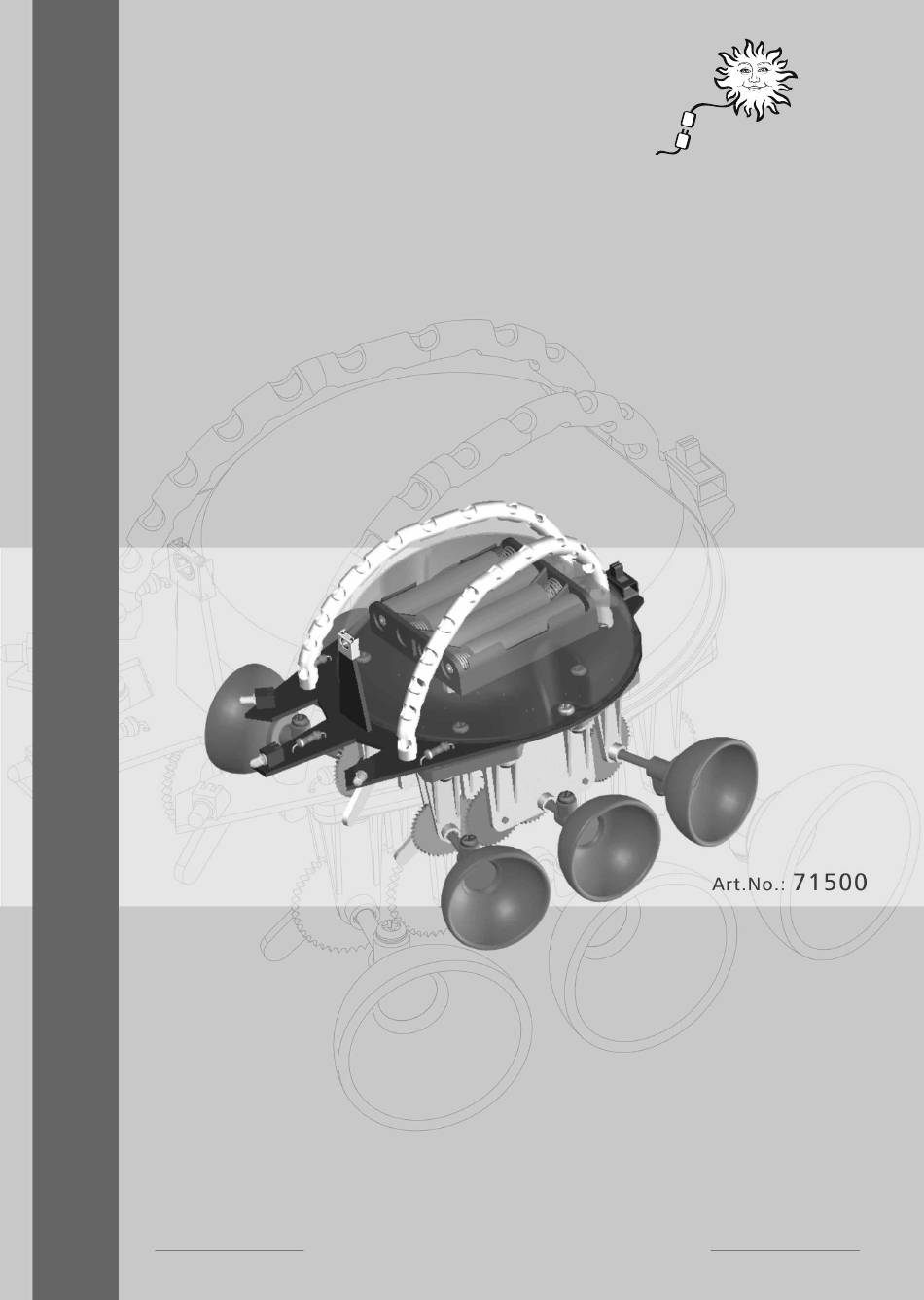

- Page 1 (EN) INSTRUCTION SOL-EXPERT group group Escape Robot www.sol-expert-group.de www.sol-expert-group.de...

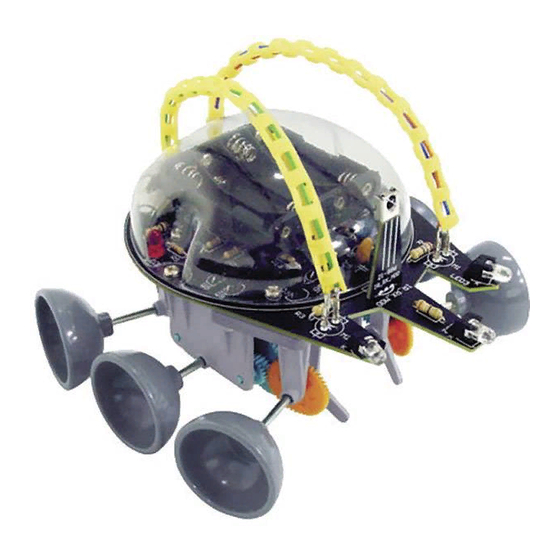

- Page 2 The Escape Robot Kit works just like an A.I. robot. It never fails to find its way out of a maze. The Escape Robot makes use of three infrared emitting diodes and one infrared receiving module to send and receive signals and detect obstacles.
- Page 3 Pins Infrared Receiving Module Slide Switch 4 pcs 1 pc Battery Holder Printed Circuit Board 1 pc C2 C3 LED3 Connector With Wire XTAL 1 pc Yellow LED4 1 pc Green 1 pc Blue LED1 Orange 1 pc Mechanical Part List: Body Screw Hex Post...
- Page 4 Part I.D. Description 1 pc Zener Diode 3.9V Step 2: Mount and soldering the components such as Ceramic capacitor, Electrolytic capacitor, Transistor, Oscillator. Description Part I.D. Ceramic Capacitor 30 2 pcs C2,C3 Ceramic Capacitor 103 1 pc 1 pc Ceramic Capacitor 104 Ceramic Capacitor 224 1 pc Description...
- Page 5 Step 5: Mount and soldering Infrared Receiving Module. Description Part I.D. 1 pc Infrared Receiving Module IR_RX_MOD Remark: Bottom Layer - 8 8 I R _ IR_RX_MOD -8 8 IR _ Mechanical Assembly: Assemble the gearbox first before go ahead for this section. (Refer to the gearbox instruction manual.) Battery Holder Assembly Toward the shaft of motor to the same way as...
-
Page 6: Wiring Assembly
PCB & Gearbox Assembly Orange P5 x4 Green Blue Orange Blue Yellow Yellow Green Note： The yellow and green wires must be at front (toward the same way as infrared emitting diodes). Body & Hosepipe Assembly P14 x2 P18 x2 Yellow Green Orange... -
Page 7: How It Works
How it works: Switch power to "ON". The LED 1 will light up and the unit will emit 3 beeps as it starts running. When the unit starts running, the emitting diodes LED2, LED3 and LED4 will send out signals sequentially to detect obstacles along its path. - Page 8 SIX-LEG WALKING TYPE GEARBOX SOL-EXPERT group group Product Introduction: This gearbox works with 2 types of feet. ● Try the different feet and enjoy the fun they will bring you This set contains 2 motors,gears,and all necessary parts ● Output speed: 170 RPM ●...
- Page 9 Mechanical Assembly: P5 x2 P1 x2 "F" must be set in "G" vertically. P9 x2 P3 x4 P2 x2 P4 x4 - 20 -...
- Page 10 P5 x4 A x2 P6 x2 B x2 P5 x4 P5 x4 P6 x4 Keep the two ears of the shaft (P7) to be horizontal to the base. - 21 -...
- Page 11 Keep the two ears of the shaft (P8) to be horizontal to the base. P8 x4 P5 x4 11-1 11-2 Finished Product - 22 -...
