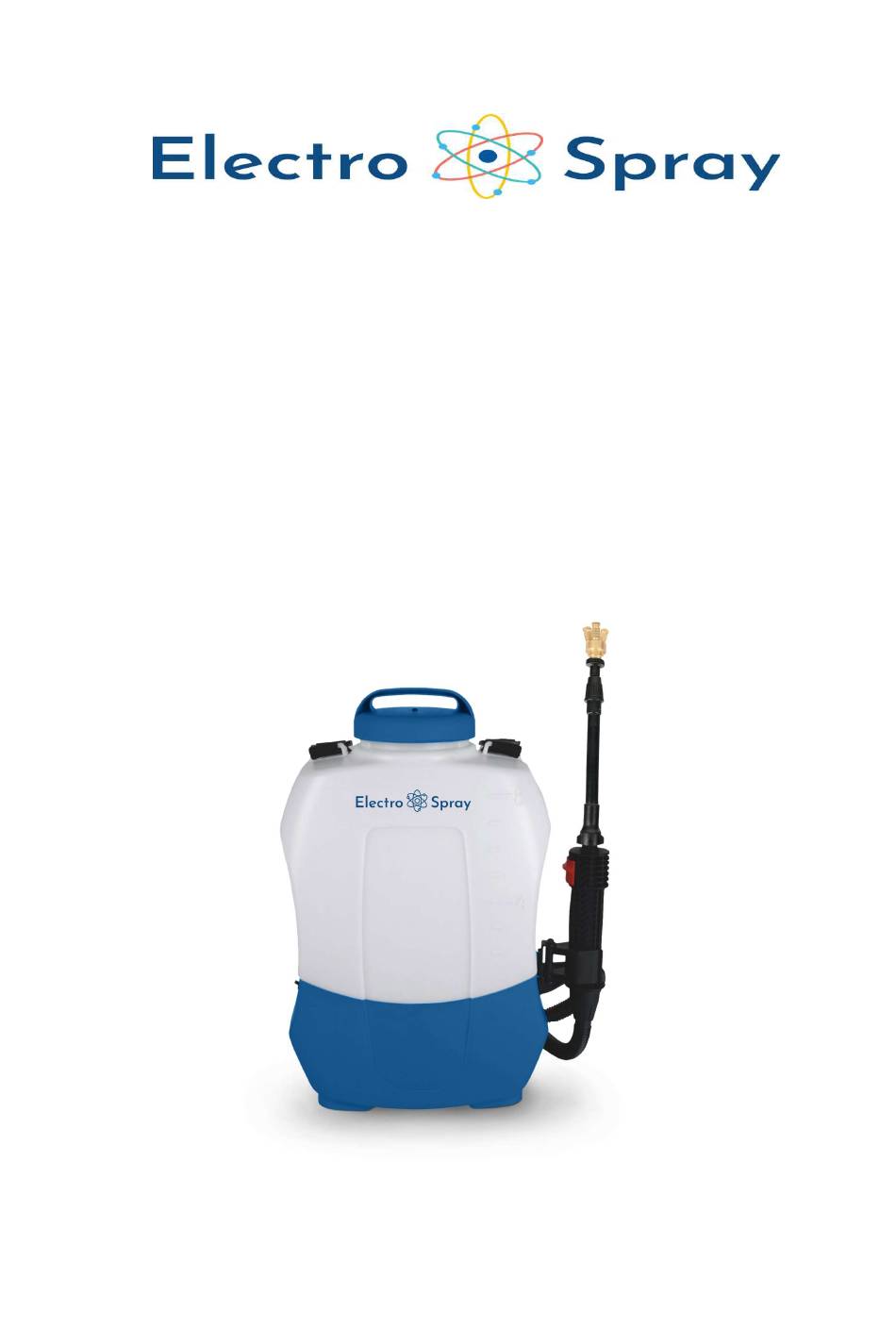

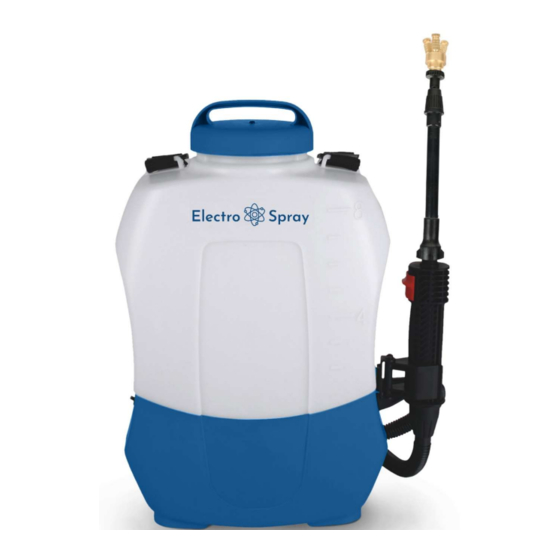

- Page 1 3WBJ-8M11 Electrostatic Sprayer Backpack Operating Instructions Please read the instruction and warning labels carefully...
- Page 2 Thank you for choosing our 3WBJ-8M11 Electrostatic Sprayer Backpack. Please follow all instructions and warnings for the safe operation of this sprayer. If you have any questions, please contact the supplier or manufacturer. Using this electrostatic sprayer incorrectly may be dangerous.
- Page 3 DO NOT USE THIS CORDLESS SPRAYER TO APPLY FLAMMABLE LIQUIDS. • Do not use oil base liquids or liquids containing metals• Only use water based formulations with this sprayer. • Store formulation in its original labeled container. • Ensure that formulation is applied only in strict compliance with the formulation label as well as local, state, and federal regulations.
- Page 4 Safety label image, meaning and location Warning Image Meaning Label position Toxic liquid, be cautious Tank cap Please wear Notice: Tank safety device carefully read instruction before using The operator must wear safety personal protective equipment including goggles, gloves, face masks as required by the formulation label of the product being applied.
- Page 5 Turn off the handle control switch, on-off power button and electrostatic switch immediately if the sprayer is leaking. Professional maintenance is required when necessary. Parts of this electrostatic sprayer such as spray wand and barrel are made of ABS and plastic. Corrosive liquid should not be used. This electrostatic sprayer should not be exposed to the environment where the gas, liquid or solid corrodes the plastic and metal parts.
- Page 6 1. Technical Parameters Name Unit Number of Description Remarks Nozzle type Cone atomization Structure type Backpack Rated capacity Liter 2.2 Gallons Pressure 0.15-0.4 Applicable air volume Applicable °c 0-40 temperature 32-104 F Electrostatic 15-30 voltage Lithium Power 12V4Ah Net weight 3.4kg 7.5 lb Dimensions...
- Page 7 Components...
- Page 8 Name Name 2 Head Nozzle Strap hook 22-40” Wand Dual-control power button Handle control Charger socket switch Handle Back of tank bottom(Side B) Grounding Lithium battery electrode Corrugated pipe Battery cover fixation cap Corrugated pipe M4*14 big flat head tapping screws Tank cap Suction filter...
- Page 9 3. Operating Steps: Charge the battery before first use. The battery charger plugs into the side of the sprayer. Connect the spray rod to the handle, and put in an O-ring to assure a tight seal. The wand length can be adjusted according to the actual need.
- Page 10 After turning on the main power switch, turn on the handle control switch to start normal operation. If you want to pause the spray while using, just turn off the handle control switch and then spray again just by turning on the handle control switch.
- Page 11 5. Drip Guard After turning off the power, a small amount of liquid that was under pressure in the wand may drip from the nozzle. For certain applications with frequent on/off use a drip guard is provided. Install and use the provided drip guard to collect drips. ...
- Page 12 6. Maintenance and Cleaning: After each operation, the remaining liquid should be drained. Do not use cleaning liquid which can corrode plastic and metal. To clean the sprayer use soap, water and a damp cloth to wipe clean. To clean internal components run water through the sprayer for 3 minutes.
-
Page 13: Troubleshooting
7. Trouble Shooting: Common faults Causes Suggested Respnse 1. The small filter at the 1. Clean the small filter; The nozzle is not bottom of the barrel is 2. Pass the inlet valve with a spraying liquid, or blocked; thin steel wire; the flow rate of 2. -
Page 14: Six Month Limited Warranty
Six Month Limited Warranty WH Distribution Ltd will, with proof of purchase, repair or replace, without charge, any defects due to faulty materials or workmanship for six months from the date of purchase for the original owner. This warranty does not cover part failure due to normal wear or tool abuse. -
Page 15: Packing List
PACKING LIST Name Unit Electrostatic Sprayer Charger Operating Instruction 3 head Brass Nozzle Double Nozzle Wand 22 inch Wand 8 inch Seal gasket Drip Guard Battery Battery Adapter Wand Holster Distributor WH Distribution Ltd 7655 W. 108 Ave., Unit 400 Westminster, CO 80021 info@whdistribution.com... - Page 16 QUICK START GUIDE 1. Remove battery cover on back of unit and plug in battery 2. Fully charge battery by plugging in charger to side of backpack. You can charge the battery outside the unit with the included battery adapter. 3.
