Summary of Contents for StretchSense Fabric Sensor

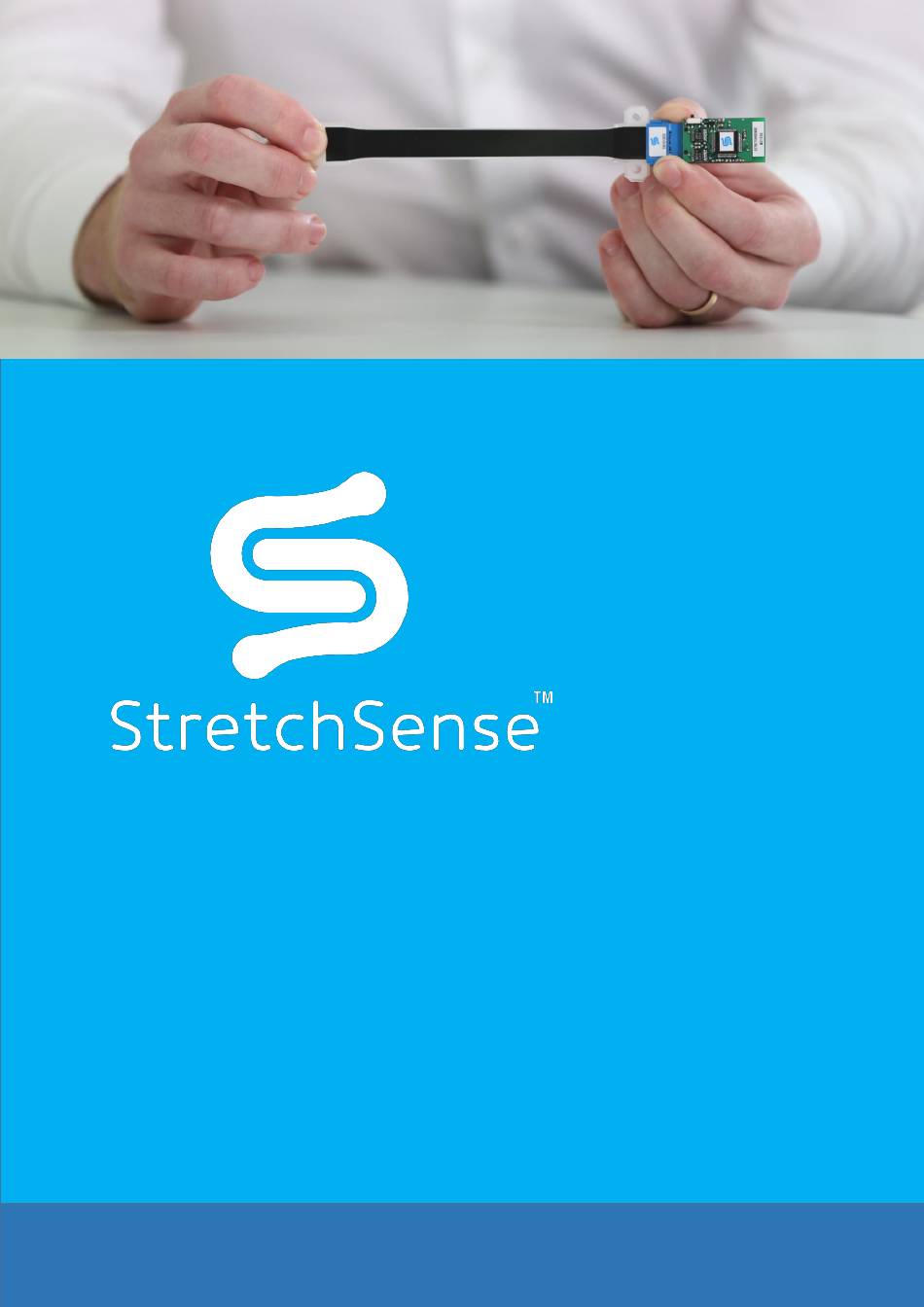

- Page 1 Fabric Sensor Evaluation Kit Information Sheet May 2015 Smart, soft, stretchable sensors Fabric Sensor Evaluation Kit Information Sheet StretchSense Limited © 2012–2015 StretchSense Limited. support@stretchsense.com +64 9 634 1927 All rights reserved www.stretchsense.com...
-
Page 2: Fabric Sensor Evaluation Kit
The fabric sensor kit is designed for customers who are prototyping sensing technology in sports, wearables and garment applications. The kit contains a fabric sensor connected to a BTLE circuit protected in a casing. -
Page 3: Table Of Contents
Unboxing ............................. 4 Getting Started ..........................4 Using the Android App ........................4 Recording Data ............................ 5 Battery..............................5 Fabric Sensor Evaluation Kit Datasheet ....................6 Sensor Dimensions ..........................6 Sensor Characteristics ........................6 Safety ..............................7 Terms and Conditions ..........................9 Limited Warranty Policy .......................... -
Page 4: Quick Start Guide
+ Free StretchSense Android data capture App Getting Started Insert the lithium coin cell battery into the fabric sensor by removing the back cover of the casing and slipping the coin cell into the battery holder. Using the Android App Download the StretchSense Fabric App from the Google Play Store The StretchSense fabric sensor works with an App on your Android device. -
Page 5: Recording Data
Capacitance (in picoFarads), and Timestamp (in milliseconds). Battery The fabric sensor runs on a 3V CR1620 Lithium Metal coin cell battery. The battery life of the sensor is approximately 12 hours during operation. When the battery nears the end of its useful life, a green light will begin to show through the top of the sensor case. -
Page 6: Fabric Sensor Evaluation Kit Datasheet
Fabric Sensor Evaluation Kit Information Sheet May 2015 Fabric Sensor Evaluation Kit Datasheet Sensor Dimensions The sensor has an active sensing zone of 90mm x 10mm surrounded by a 2mm sewable area. Piercing or sewing through the active sensing zone will result in damage to the sensor. -
Page 7: Safety
StretchSense does not assume any liability for failures to comply with these warnings and safety guidelines. By purchasing this battery, the buyer assumes all risks associated with lithium batteries. If you do not agree with these conditions, return the battery immediately before use. - Page 8 Fabric Sensor Evaluation Kit Information Sheet May 2015 Do not allow batteries to overheat at any time. Batteries which reach greater than 60 degrees C (140 F) will usually become damaged and will catch fire. Do not allow batteries on or near combustible materials including paper, plastic, carpets, vinyl, leather, and wood.
-
Page 9: Terms And Conditions
StretchSense’s sole responsibility is, at StretchSense’s option, to provide replacement parts at no cost to the Purchaser, to repair the Goods at StretchSense’s facilities, or to refund the cost of the Goods to the Purchaser upon the return of the defective Goods. -
Page 10: Contact
Fabric Sensor Evaluation Kit Information Sheet May 2015 Contact Address: StretchSense Limited 5/69 Captain Springs Road Onehunga Auckland 1061 New Zealand US DDI: +1 415 800 1003 NZ DDI: +64 9 634 1927 Email: support@stretchsense.com sales@stretchsense.com Web: www.stretchsense.com StretchSense Limited ©...
