Summary of Contents for SIPOS AKTORIK SEVEN 2SL78 Series

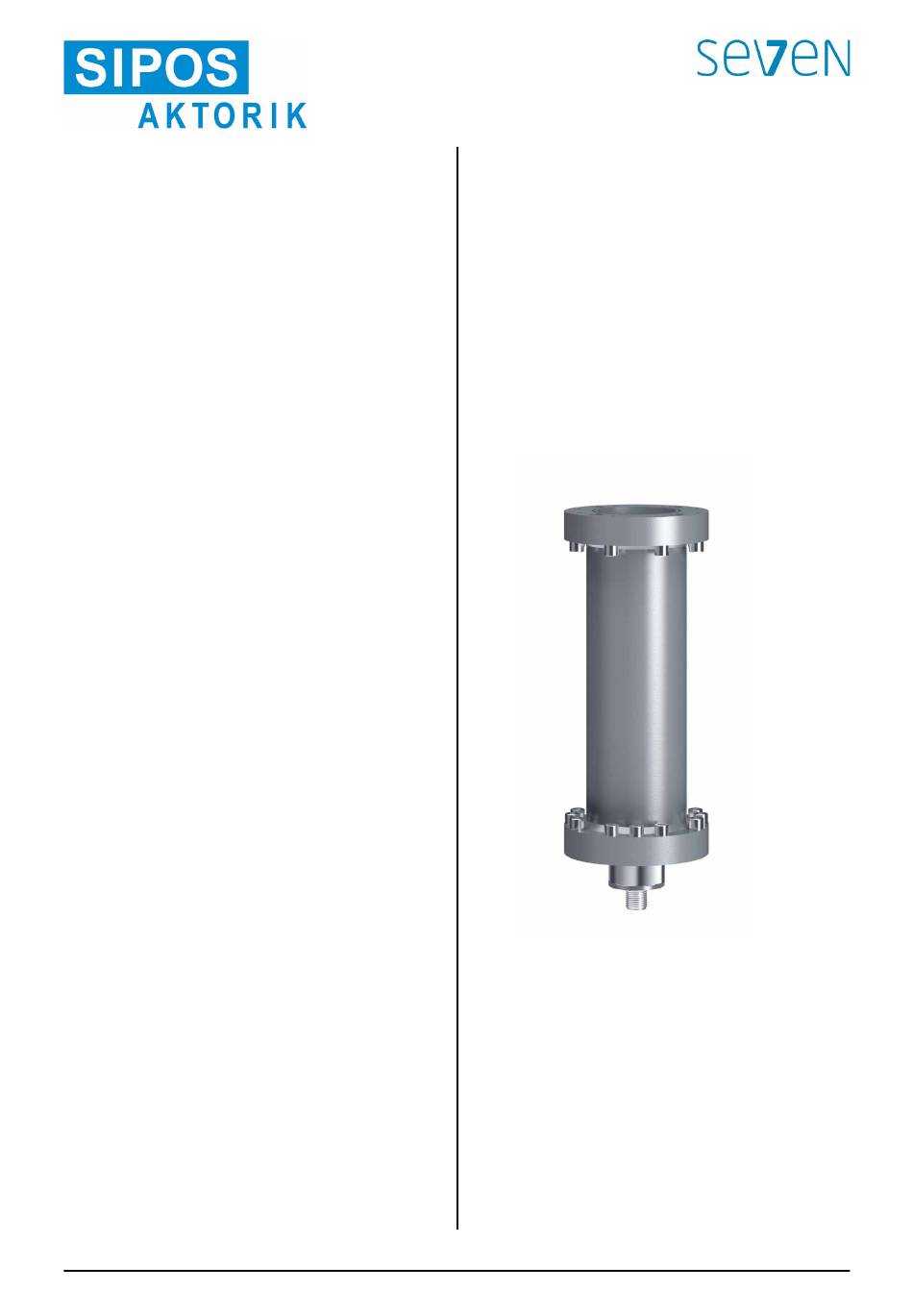

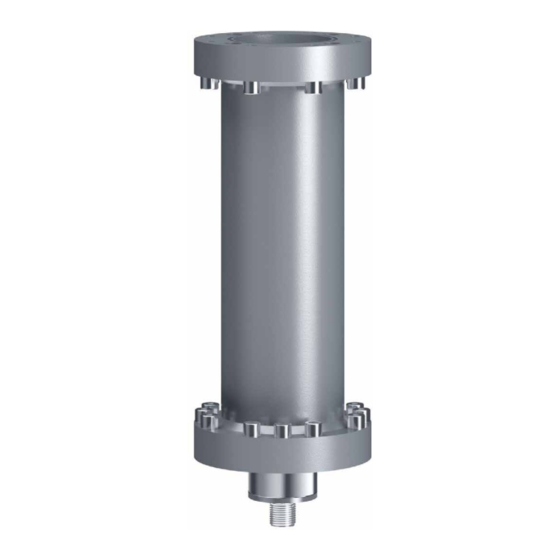

- Page 1 2SL78 linear thrust unit Supplement to operation instructions SEVEN HiMod Issue 07.20 Y070.518/EN Subject to changes without notice!
- Page 2 Contents Supplement to operation instructions SIPOS SEVEN 2SL78 linear thrust unit Contents General ������������������������������������������������ 3 References to operation instructions ..3 Safety instructions: Used symbols and their meaning ........3 Mounting linear thrust unit ���������������� 4 Mounting linear thrust unit to valve ..4 Mounting actuator to linear thrust unit ..
- Page 3 Supplement to operation instructions SIPOS SEVEN 1 General 2SL78 linear thrust unit General 1�1 References to operation instructions This supplement to operation instructions describes assembly of linear thrust unit and is only complete in combination with the respective main operation instructions of SEVEN actuators PROFITRON or HiMod.
- Page 4 2 Mounting linear thrust unit Supplement to operation instructions SIPOS SEVEN 2.1 Mounting to valve 2SL78 linear thrust unit Mounting linear thrust unit ■ Subsequent tasks may only be performed by qualified and trained personnel! ■ Mounting of linear thrust unit is possible in any position. ■...
- Page 5 Supplement to operation instructions SIPOS SEVEN 2 Mounting linear thrust unit 2SL78 linear thrust unit 2�2 Mounting to actuator 2�2 Mounting actuator to linear thrust unit How to proceed 1. Clean contact surfaces of actuator and linear thrust unit. 2. Assembly may differ depending on the actuator: For 2SL781/2 actuator: a) Place actuator on linear thrust unit and slightly tighten using the provided screw with...
- Page 6 Stroke 300 mm 2SL781, 2SL782 0.3 l 0.6 l 2SL783 075 l 1.35 l 2SL784, 2SL785 1,1 Liter 2.0 l Issue 07.20 © SIPOS Aktorik GmbH Y070.518/EN Subject to changes without notice! Im Erlet 2 • 90518 Altdorf/Germany Page 6 Y070.518/EN www.sipos.de...
