EUROGUARD
50394
Item
Qty.
Code
1
1 Pza.
50394
2
1Jgo.
503940DA
1 Pza.
BRK-50394
3
1Jgo.
5029400
4
1Jgo.
503944BA
5
1Jgo.
503944CA
6
1Jgo.
5029444
7
2 Pza.
373812
8
2 Pza.
5029401
9
2 Pza.
5029486
1 Pza.
KTE-50394
10
2 Pza.
-
11
2 Pza.
-
12
2 Pza.
-
13
2 Pza.
-
14
4 Pza.
-
15
1 Pza.
-
16
4 Pza.
-
17
2 Pza.
-
18
2 Pza.
-
19
2 Pza.
-
20
2 Pza.
-
21
2 Pza.
-
22
4 Pza.
-
23
6 Pza.
-
24
4 Pza.
-
25
2 Pza.
-
26
2 Pza.
-

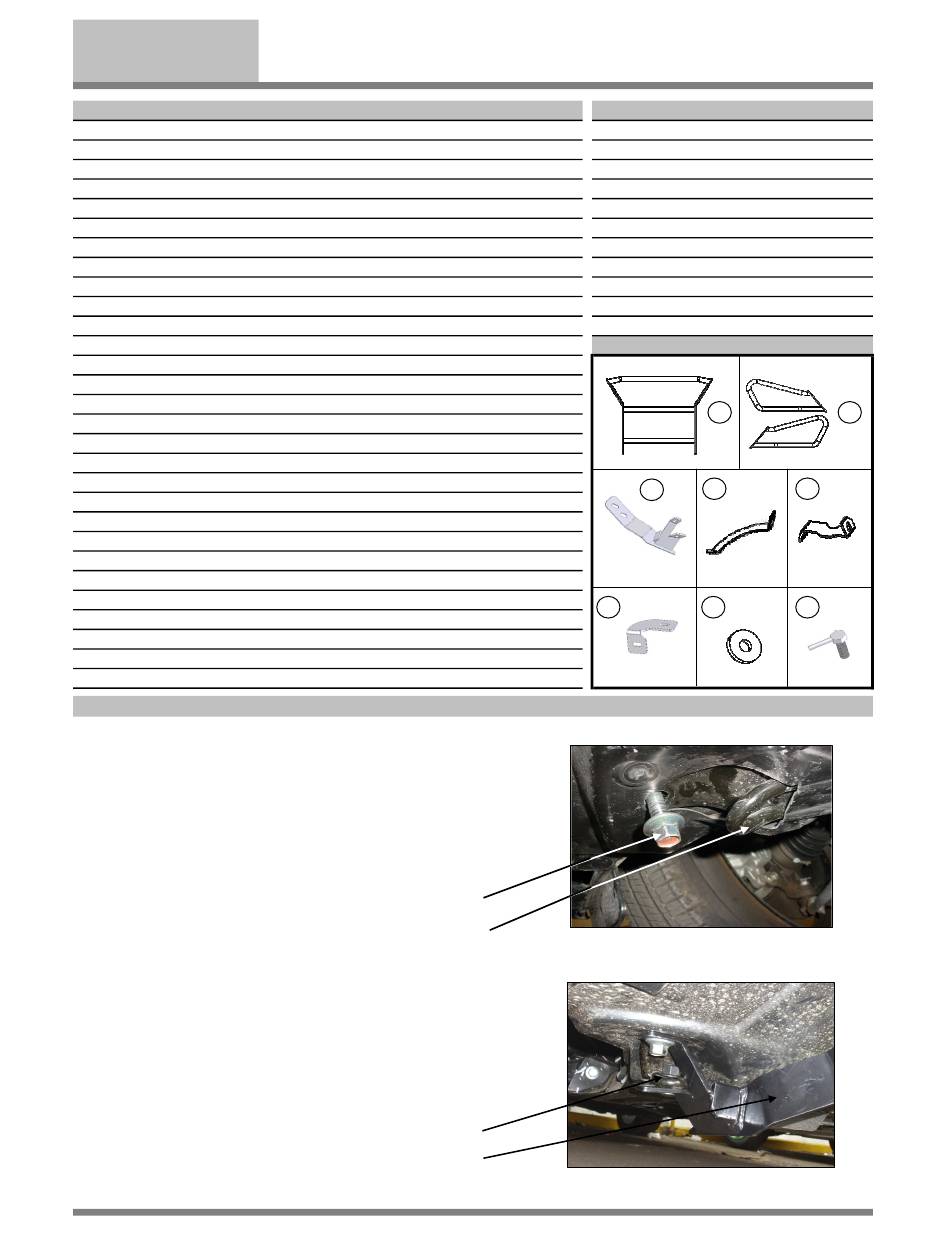

1.
Before beginning installation, read the instructions thoroughly and
completely. If any of the items listed above are missing, please do not
proceed with the installation. Call your distributor immediately to obtain the
necessary items.
2. Locate the tow hook and remove the factory bolt in the lower front part
of the vehicle. PHOTO 1.
3. Attach the longer leg of the lower bracket using the tow hook bolt
removed in Step 2. Attach the shorter leg to the tow hook loop using a
1/2" hex head bolt, 1/2" flat washer, lock washer and nut. Leave loose.
DESING
QUALITY
INSTALLATION INSTRUCTIONS
HONDA CRV 2010 ( LX - EX - EXL )
Parts List
Description
Euroguard
Brush guard
Hardware brackets kit including:
Lower bracket
Upper bracket A
Upper bracket B
Support to upper bracket
Spacer
Rod bolt
Tube spacer
Hardware bolt kit including:
5/16" Flat washer
5/16" Lock washer
5/16" hex nut
1/4 x 3/4" Hex head bolt
1/4" Flat washer
1/4" Bolt guide
1/4" hex nut
3/8" Carriage head bolt
3/8" Flat washer
3/8" Lock washer
3/8" Hex nut
1/2 x 1 1/2" Hex head bolt
1/2" Carriage head bolt
1/2" Flat washer
1/2" Lock nut
1/2" Lock washer
1/2" Hex nut
Instructions
Remove this bolt.
Tow hook
Spacer
Lower Bracket
Driver side Bracket installed
FODI7.003.E
Required Tools (Not included)
Max. Torque
Qty.
-
1
Ratchet
-
1
Flat screw driver
1
Cuther
-
1
Socket / Wrench 7/16" - 3/4" - 9/16"
-
1
Socket / Wrench 16mm
-
1
Extension to ratchet
-
-
-
-
-
-
18 Lb.ft
9 Lb.ft
-
-
9 Lb.ft
31Lb.ft
-
-
31Lb.ft
Driver
75 Lb.ft
75 Lb.ft
6
-
75 Lb.ft
-
Driver
75 Lb.ft
DATE OF REVISION: Date]
Description
Brackets
Passenger
1
Driver
4
5
3
Driver
7
8
PHOTO 1
PHOTO 2
Page: 1 / 3
2
Driver
Advertisement
Table of Contents
Summary of Contents for EUROGUARD 50394
- Page 1 INSTALLATION INSTRUCTIONS EUROGUARD HONDA CRV 2010 ( LX - EX - EXL ) 50394 Parts List Required Tools (Not included) Item Qty. Code Description Max. Torque Qty. Description 1 Pza. 50394 Euroguard Ratchet 1Jgo. 503940DA Brush guard Flat screw driver 1 Pza.
- Page 2 EUROGUARD HONDA CRV 2010 ( LX - EX - EXL ) 50394 4. Open the hood and remove the radiator cover pushing out the plastic fasteners. Insert the 5/16" Special bolt in to the slot of the radiator support front. in the special bolt insert the spacer tube, then place the upper bracket support and upper bracket, to place the upper bracket you must introduce it from outside in a grille hole.
- Page 3 6. Install the upper bracket B in the upper bracket A and attach with: ( 1 ) 3/8 x 1 1/4" carriage head bolt, ( 1 ) 3/8" flat and lock washer, ( 1 ) 3/8" hex nut. Leave loose. Repeat for the opposite side. Mount the Euroguard to lower brackets fix with: ( 2 ) 1/2 x 1 1/4" carriage head bolt, ( 2 ) 1/2"...
