  • Page 1 JOOBY Avenue Smart Cover USER MANUAL...

  • Page 2: General Information

    This user manual contains information about the JOOBY “ASC” (Avenue Smart Cover) control device (hereinafter referred to as "device") and sets the rules of exploitation and storage of the device. 1 GENERAL INFORMATION 1.1 “ASC” control device is part of the JOOBY AVENUE luminaire and meet not onl y the requirements set for luminaires, but also ETS I EN 300 220-1 V3.1.1, ETSI...

  • Page 3: About Product

    2.1 The device is intended for expansion of functional possibilities of JOOBY AVENUE luminaires according to chapter 3. 2.2 The devices is meant to be set on the JOOBY AVENUE luminaire by the manufacturer or by user for re-equipment of previously bought luminaires.

  • Page 4: Technical Specification

    4 TECHNICAL SPECIFICATION 4.1 Technical characteristics are driven to table 4.1 Table 4.1 120 – 280 V Incoming voltage Rated voltage frequency 50 Hz Maximum load 500 W Rated power, not more then Rated power in standby mode, not more than 0,5 W Ingress protection degree IP66 (when installed)

  • Page 5: Delivery Set

    Continuation of table 4.1 Positioning accuracy (CEP) 2,5 m Positioning speed 32 s, 30 s, <1 s (cold, warm, hot start) Receiver sensitivity -148 dBm (cold start) Compliance ETSI EN 300 220-1 V3.1.1 (2017-02) ETSI EN 300 220-2 V3.2.1 (2018-06) ETSI EN 300 328 V2.1.1 (2016-11) ETSI EN 301 489-1 V2.2.0 (2017-03) ETSI EN 301 489-3 V2.1.1 (2017-03)

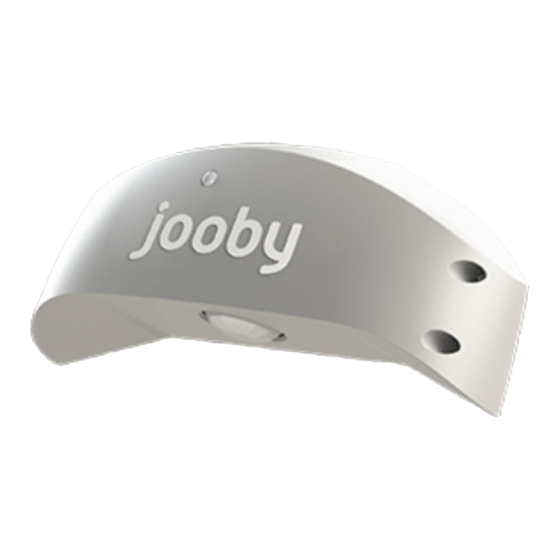

  • Page 6 7 DESCRIPTION 7.1 Common description The device is designed as a JOOBY AVENUE front cover (picture 7.1), for a JOOBY AVENUE luminaire, with an inbuilt control board and, depending on the embodiment, may contain a motion sensor, lighting sensor and a GPS receiver.

  • Page 7: Pre-Starting Procedure

     install and tighten fastening screws. The device is ready for work. – To set the device on suspended JOOBY AVENUE luminaire (Avenue S1 … – Avenue S5 … options) Note replace the front cover on the section opposite to the cable input.

  • Page 8: Maintenance

    9 MAINTENANCE 9.1 Devices require periodical preventive examination (along with the host luminaire). 9.2 Devices require cleaning to remove dirt and dust from lighting and motion sensors (along with the host luminaire). Do not use aggressive solutions and hard brushes that can damage the housing paint or the surface of sensors.
  • Page 9 12 ACCEPTATION CERTIFICATE manufactured and accepted with obligatory observance of state standards, existing technical documentary, and claimed suitable for usage Supervisor of Technological Control Department L.S. Signature Surname and initials Date 13 MANUFACTURER WARRANTY 13.1 Manufacturer guarantees the quality of the product during specified warranty period for component parts, provided that the consumer fulfills all the requirements for storage, transportation and operation of the product during specified period of time.
