Bellman BE1010 Manual

The Bellman Ringer
Art. no. BE1010

Function

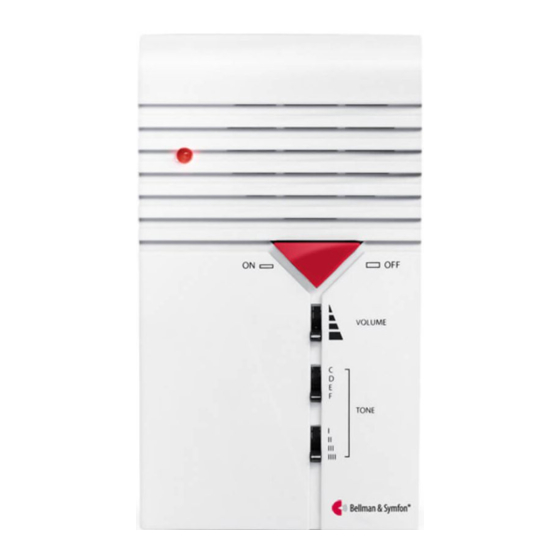

The BE1010 Bellman Ringer is an indoor alerting system that helps the user to identify when an
analogue telephone/text phone/fax machine is ringing. The Bellman Ringer draws the user's
attention by emitting an extra loud and adjustable sound signal from the built-in loudspeaker and via
a light signal from an LED fitted in the front of the unit. The Bellman Outdoor Telephone ringer
BE9003 is an optional extra that is connected by a cable into the Bellman Ringer and emits an extra
loud and adjustable ring tone for external or industrial use.
The Bellman Ringer is connected in the usual manner by an adapter plug into the telephone socket
or can be connected to other sources, such as certain door signals. This is carried out by a special
connection via the built-in telephone input (9).

Installation and connection

The Bellman ringer is generally installed on a wall, however the product can also be placed
horizontally, e.g. on a desk.
The Bellman Ringer can be connected in the following ways:
● Directly from an analogue telephone socket with the supplied telephone cord/adapter
plug into the telephone input (9).
● Via pins 1 and 6 of the telephone input (9). See Technical Specifications for further
details.

Testing

1. Fit the batteries and connect the Bellman Ringer to an analogue telephone socket.
2. Set the Bellman Ringer to the 'on' position and increase the volume by using the slide
switch on the front of the unit.
3. Ring the telephone number from a mobile phone or other telephone.
4. The Bellman Ringer will now emit a sound signal according to the settings on the front
of the unit and the LED (1) will blink with a red light.

Indicators

Ring signal indicator
