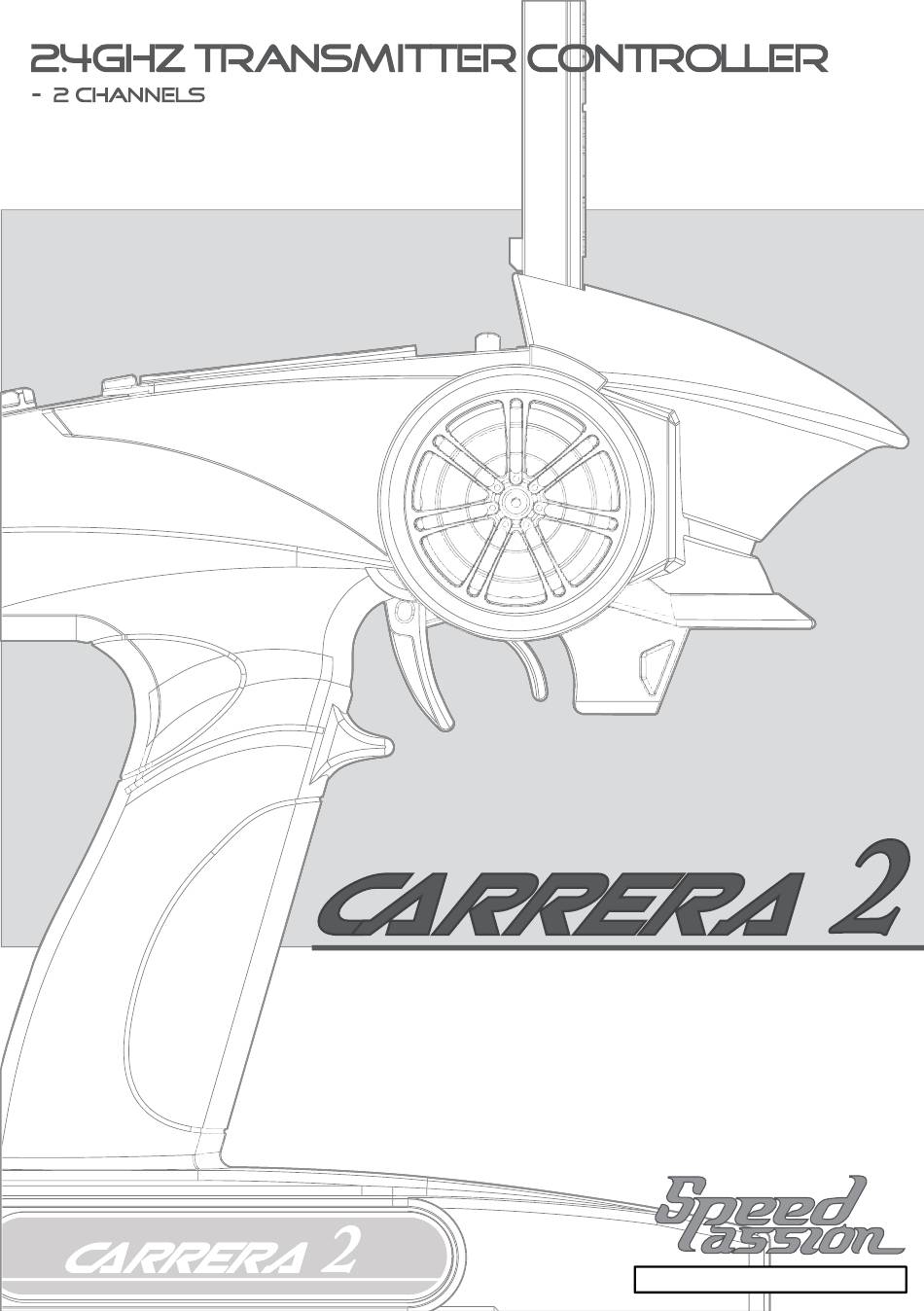

- Page 1 Instruction Manual item no. : SPR0113...
- Page 2 1. Introduction ............p.2 2. Safty Guides ............p.3 3. Battery Charging notes ........p.4 4. Transmitter and Receiver parameters..p.5 - p.6 5. Receiver Connectivity ..........p.7 6. 2.4G Operation notes ........p.8 - p.9 7. Transmitter Function notes .......p.10 - p.12 8.
- Page 3 Thank you for choosing our 2.4G digital radio control products, Please read through this manual to familiarize yourself with the operation of the transmitter before use. Keep this manual for future troubleshooting if you have any problems during operation. Once again, thanks for buying our products, This product is warranted against manufacturing defects for a period of one year after purchase.
- Page 4 Please pay attention to the following symbols when they appear in the manual, and please read carefully. Failure to follow these instructions, may lead to serious Danger: injuries or mortal danger. Failure to follow these instructions, may lead to serious Warning: injuries or mortal danger.
- Page 5 Check your transmitter batteries before each use. Low battery power will cause poor range, slow response, inconsistent response and loss of control. If your battery power is low, please charge before use. If you are using a nickel-cadmium, nickel-metal hydride batteries for recharging, please use the supplied charger.
-
Page 6: Specifications
Specifications: - Channels: 2 Channels - Model type: Car/Boat - RF power: less than 20dbm - Modulation: GFSK - Code type: Digital - Sensitivity: 1024 - Low voltage warning: Yes(less than 9W) - DSC port: Yes(3.5mm) - Charger port: Yes - Power: 12vdc(1.5aa*8) - Weight: 357g - ANT length: 26mm... - Page 7 On/Off Switch 2.4G Antenna Steering Wheel Throttle Trigger Battery Box RADIO BIND POWER G:FULL F:LOW ST.TRIM TH.TRIM ST.D/R Charger Jack Power LED Throttle Trim DSC for Simulate Battery Indicator LED Steering Dual Rate Dail Steering Revise Radio Bind Head LED Switch Throttle Revise Steering Trim Head LED...
- Page 8 Switch Servo Motor Battery Receiver Battery Switch (1.5AA X4) Throttle Receiver Steering System Servo Antenna Note: Route the antenna of the receiver straight up, and avoid metal or wires to assure its sensitiv- ity. Receiver...
- Page 9 Our products are bound from the factory, so you do not need to bind them yourself. To bind the receiver with another transmitter, please follow the following steps: A. Install the battery to 2.4G transmitter B. Insert the bind plug to the channel BIND /CH3 port of the receiver. C.
- Page 10 A. Complete installation. B. Turn on transmitter. - 1. Press the antenna untill it press the On/Off switch. - 2. Flip the antenna to vertical position. C. Turn on receiver. D. Receiver LED light should be solid. E. Ready to use. A.
- Page 11 fig.1 fig.2...
- Page 12 fig.3 fig.4...
- Page 13 RADIO BIND POWER G:FULL F:LOW ST.TRIM TH.TRIM ST.D/R LED Button...
- Page 16 www.speedpassion.net Email: sale@king-golden.com Tel: (852) 3586-2398 Fax: (852) 3586-2148 USA Support email: usasupport@king-golden.com USA Toll Free line: 866-369-0636...
