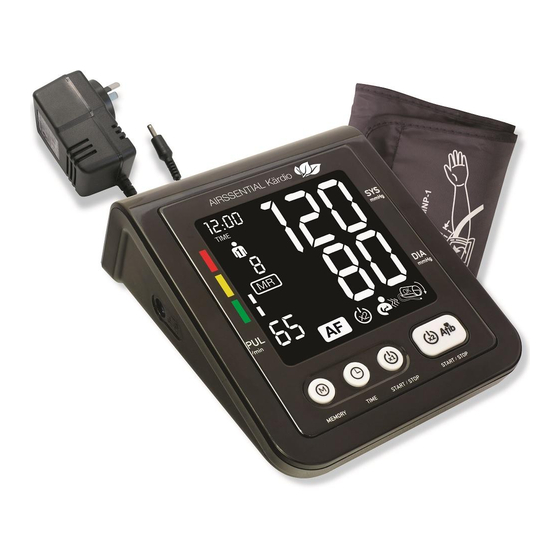

Airssential Home LifeLine Kardio AI-K118A Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

AIRSSENTIAL

LifeLine

Kärdio

Blood Pressure Monitor

Instruction Manual

This manual contains important

information for the correct and safe use

Automatic Upper Arm Style

of the LifeLine

Kärdio Blood pressure

Monitor. Before using, please read through

this instruction manual carefully.

Keep this manual in a safe place for future reference. If you do

not understand any portion of these instructions, contact the

Airssential Customer Care Centre on (02) 9708 5560.

For further questions on Blood pressure and its measurement,

Model: A

-K118A

please contact your doctor.

www.airssential.com.au

Table of Contents

Need help?

Do you have a question about the LifeLine Kardio AI-K118A and is the answer not in the manual?

Questions and answers

Summary of Contents for Airssential Home LifeLine Kardio AI-K118A

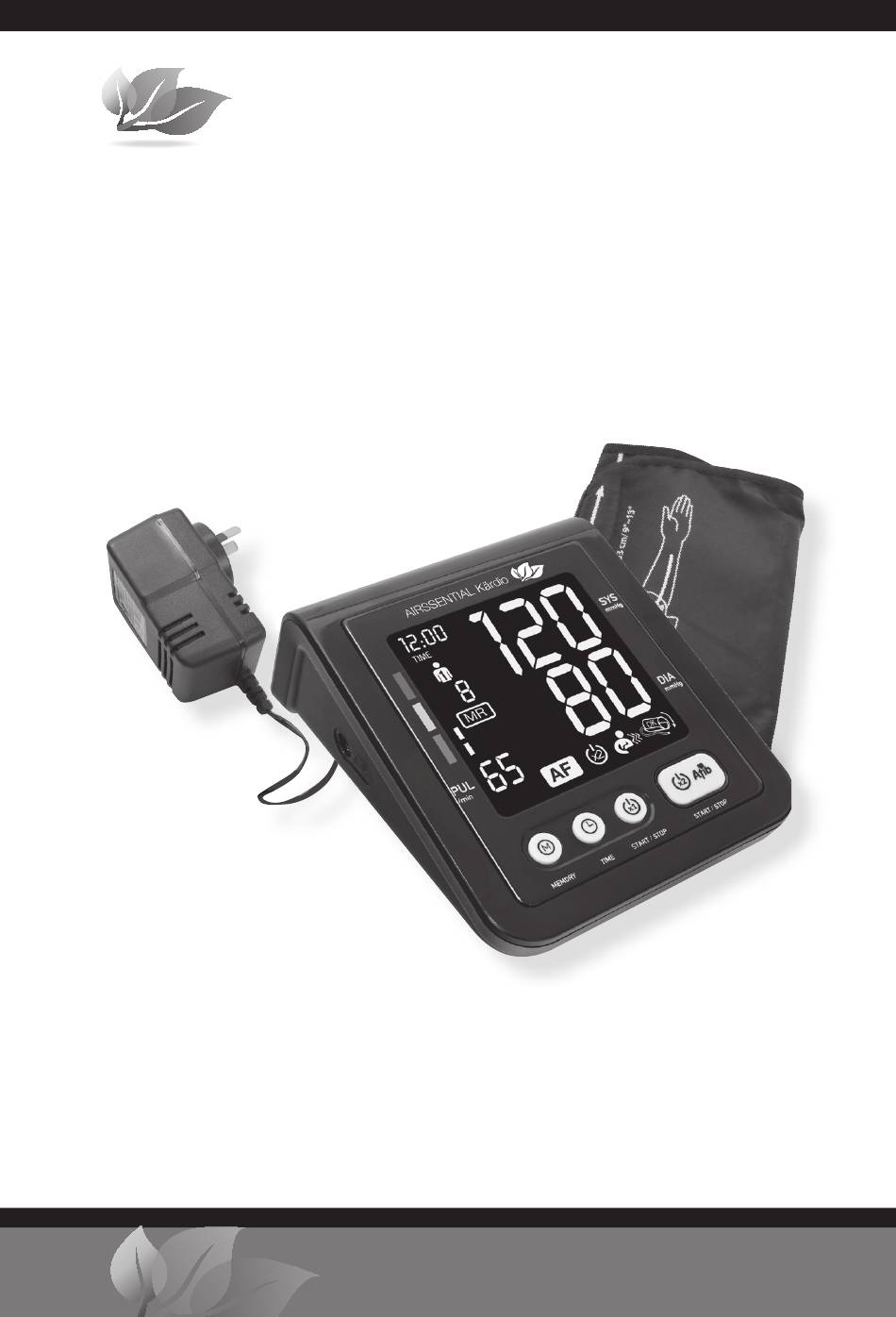

Page 1 AIRSSENTIAL LifeLine Kärdio ® Blood Pressure Monitor Instruction Manual This manual contains important information for the correct and safe use Automatic Upper Arm Style of the LifeLine Kärdio Blood pressure ® Monitor. Before using, please read through this instruction manual carefully. Keep this manual in a safe place for future reference.
Page 2: Table Of Contents
Contents Introduction ..................... 3 Statement of Intended Use ..............3 Important Information about Self-Measurement ....... 4 Electromagnetic Interference ............4 Blood Pressure Measurement ................. 5 How does Blood Pressure Arise? ............5 Normal Blood Pressure Values ............5 Preparing the Blood Pressure Monitor for Use ..........7 Blood Pressure Monitor Parts ............
Page 3: Introduction
Introduction Congratulations on your purchase. The LifeLine Kärdio Blood Pressure Monitor ® AI-K118A is a fully automatic, digital blood pressure measuring device for use on the upper arm. This monitor enables fast and reliable measurement of systolic and diastolic blood pressure and the pulse rate. This device offers clinically tested measurement protocols and very high accuracy.
Page 4: Important Information About Self-Measurement
WARNING Important Information about Self-Measurement • Replacement of original parts with generic components may result in measurement errors. Blood pressure cuffs should only be replaced by compatible LifeLine cuffs. • During measurements, ensure the cuff’s tubing is not kinked to avoid a possible patient injury or measurement inaccuracy. • Very frequent measurements can cause patient injury due to continued blood flow restriction. • Do not apply and inflate the blood pressure cuff: • over a wound as this may exacerbate the injury. • on any limb where intravascular therapy or an arteriovenous (A-V) shunt is present, as the temporary interference with blood flow and may result in patient injury.
Page 5: Blood Pressure Measurement
Blood Pressure Measurement How does Blood Pressure Arise? Blood pressure is determined in a part of the brain, referred to as the circulatory centre which adapts blood pressure to the respective situation via feedback from the nervous system. Blood pressure is subsequently adjusted by the circulatory centre by altering the heart rate (Pulse), its strength and the diameter of circulatory blood vessels by fine muscles in the blood vessel walls.
Page 6 Table 1 classifies blood pressure risk by measured values according to the recommendations of the World Health Organisation (WHO): Systolic Diastolic Risk Category Classification Pressure Pressure Measures Indicator Category (mmHg) (mmHg) Colour Hypotension Lower than 100 Lower than 60 See your doctor Optimum 100 to 120 60 to 80 Self-check Green...
Page 7: Preparing The Blood Pressure Monitor For Use
Preparing the Blood Pressure Monitor for Use LifeLine Kärdio Blood Pressure Monitor Parts ® DC Power Adaptor inlet On/Off Button in AFIB Mode (2-Measurement Blood pressure Mode) cuff air outlet On/Off Button in Standard Mode Time Button Memory Button FIGURE 1. Identification of monitor button functions. 88.
Page 8: Unpacking Your Blood Pressure Monitor
Unpacking Your Blood Pressure Monitor Remove the monitor from the carrying case and check that all the contents are included and undamaged. The contents included with the monitor are: • LifeLine Kärdio Monitor • Standard Arm Cuff (22 - 42 cm) ® • Instruction Manual • Storage Case • AC Power Adaptor • 4 AA Alkaline Batteries Report anything missing or damaged to the point of purchase. Installing Batteries a) Insert four AA-size (1.5V) alkaline batteries into the monitor’s battery compartment.
Page 9: User Selection
User Selection This monitor allows for the independent monitoring and recording of blood pressure readings for 2 individuals in 2 different memory zones. • To select the user or memory zone, ensure the monitor is off. Press and hold the TIME button until the user icon begins to blink. Press the MEMORY button to change the User and then confirm the selection by pressing the START / STOP button. The monitor will then switch off and remain at this selected User.
Page 10: The Measurement Procedure
Further Information Each press of the button (TIME, MEMORY) is one input (e.g. switching from hours to minute mode or altering the value by +1). Switching to the desired value is faster if the respective button is kept depressed. The Measurement Procedure Before Starting Avoid eating, smoking and all forms of exertion or exercise directly before taking a measurement, as all these factors will influence the result. It is important that prior to beginning a measurement, that you sit comfortably in a quiet room and relax for several minutes.
Page 11: Applying The Cuff
Applying the Cuff Insert the cuff’s air connector into air outlet on the side of the monitor as shown in Figure 3. Ensure the air connector is fitted properly fitted to avoid leakage. a) Check the distance between the edge of the cuff and the elbow is approx.
Page 12: Measuring Procedure
Measuring Procedure 1. Measuring in Standard Mode (1 Measurement Mode) Note: Standard mode measurement provides standard arrhythmia detection but not Atrial Fibrillation detection technology. In standard mode, only 1 measurement is taken in succession. Start the measurement as follows after the cuff has been positioned on the arm: a) Press the button, and the pump begins to inflate the cuff.
Page 13 Examples of Measurement Readings Example 1: Systolic 120, Diastolic 80, Pulse 70. Irregular heartbeat detected with the IHB icon appearing. The cuff is correctly fitted. ExAMPLE 1 Example 2: Systolic 120, Diastolic 80, Pulse 70. Irregular heartbeat detected with the IHB icon appearing, The cuff is fitted too loosely. ExAMPLE 2 Example 3: Systolic 120, Diastolic 80, Pulse 70. Movement detected. The cuff is correctly fitted. Measurement results are displayed until the device is turned off.
Page 14 a) Position cuff the arm and press the button. symbol appears on screen cuff inflation begins. b) The lower, left section of the screen shows a 1 or 2 to indicate which FIGURE 6A: 1st AFIB FIGURE 6B: 2nd AFIB of the measurements is measurement measurement...
Page 15: Discontinuing A Measurement
Example 2: Systolic 128, Diastolic 86, Pulse 68, irregular heart beat detected with IHB icon appearing, but no AFIB is detected. Arm movement detected, and the cuff is fitted correctly. See Figure 9 Discontinuing a Measurement FIGURE 9: Example 2 If it is necessary to interrupt a measurement, for any reason, press either power button and the monitor will immediately stop the measurement and release the pressure.
Page 16: Memory- Deletion Of Measurements
Memory– Deletion of Measurements Before deleting the data stored in the memory, be sure there is no further need to refer to it in the future. To delete all stored readings, be sure the monitor is off. Press the MEMORY button for 5 seconds. Release the button when the «CL»...
Page 17: Error Messages And Possible Malfunctions
When blood pressure measurements are performed using the Kärdio Monitor, Atrial Fibrillation and Irregular Beat (AFIB) detection technology, once activated, can screen and distinguish between various irregular heartbeats. If an irregular heartbeat is detected, accessed by the software, to be of possible concern the icon will display.
Page 18: Possible Malfunctions And Their Remedy
Possible Malfunctions and their Remedy Malfunction Remedy The display remains 1. Check batteries polarity is correctly located and empty when the if necessary insert correctly. instrument is switched 2. If the screen display is unusual, the batteries on although the should be re-inserted or replaced.
Page 19: Device Certification
Disposal Waste electrical products should not be disposed of with household waste. If this device is no longer required or it is no longer serviceable, dispose of the device and its accessories to a recycling collection point. Check with your local Council for recycling information. The expected service life of this monitor, under normal use and conditions, is 5 years.
Page 20: Symbols Used In This Manual
Symbols Used in This Manual Table 4 provides a summary of the meanings of symbols used in this manual. Waste electrical products should not Attention consult be disposed of with accompanying documents household waste. Read the Instructions Manufacturer before use Inapplicable for babies Type B equipment less than 3 years of age...
Page 21: Technical Specifications
To obtain warranty service return this blood pressure Monitor, together with proof of purchase and a cheque or money order made out to “Boian Surgical” for $9.90 to cover return shipping and insurance, to Airssential Customer Care Service Centre, 122 Gow Street, Padstow NSW 2211. Please include your name, address and a contact telephone number with your request.
Page 22: Manufacturer's Declaration
Manufacturer’s Declaration The monitor is intended for use in the electromagnetic environment specified below. Electromagnetic Emissions: (IEC60601-1-2) Emission Test Compliance Electromagnetic Environment RF emission Group 1 The BP118A AFIB uses RF energy only for CISPR 11 internal functions. Therefore, this RF emission is extremely weak and there is little chance of it creating any kind of interference whatsoever with nearby electronic equipment.
Page 23 Immunity IEC60601- Compliance Electromagnetic Environment - Test 1-2 Test Level Guidance Level Voltage <5 % UT 95% Mains power quality should be that of a dips, short dip in UT for applicable typical commercial or hospital environment. interruptions 0.5 cycle If the user of the upper arm style requires and voltage 40 % UT 60% continued operation during power mains...
Page 24 Immunity IEC60601- Compliance Electromagnetic Environment - Test 1-2 Test Level Guidance Level Note1: At 80 MHz and 800 MHz, the higher frequency range applies. Note2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
Page 25: Bibliography
recommended separation distance d minimetres (m) can be determined using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. Note: At 80MHz and 800MHz, the separation distance for the higher frequency range applies Note: These guidelines may not apply in all situations.
Page 26: Blood Pressure Diary
Blood Pressure Diary Visit our website at www.airssential.com.au to download additional copies. BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE MEAL DATE TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL...
Page 27 BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE MEAL DATE TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE DATE MEAL TIME AFTER SYSTOLIC/DIASTOLIC PULSE BEFORE...
Page 28 AIRSSENTIAL Manufactured for: Airssential Health Care 122 Gow Street, Padstow NSW 2211 Phone (02) 9708 5560 Airssential Health Care is a division of Boian Surgical Pty Ltd. ® Airssential and LifeLine are the registered trademarks of Boian Surgical Pty Ltd. ®...
