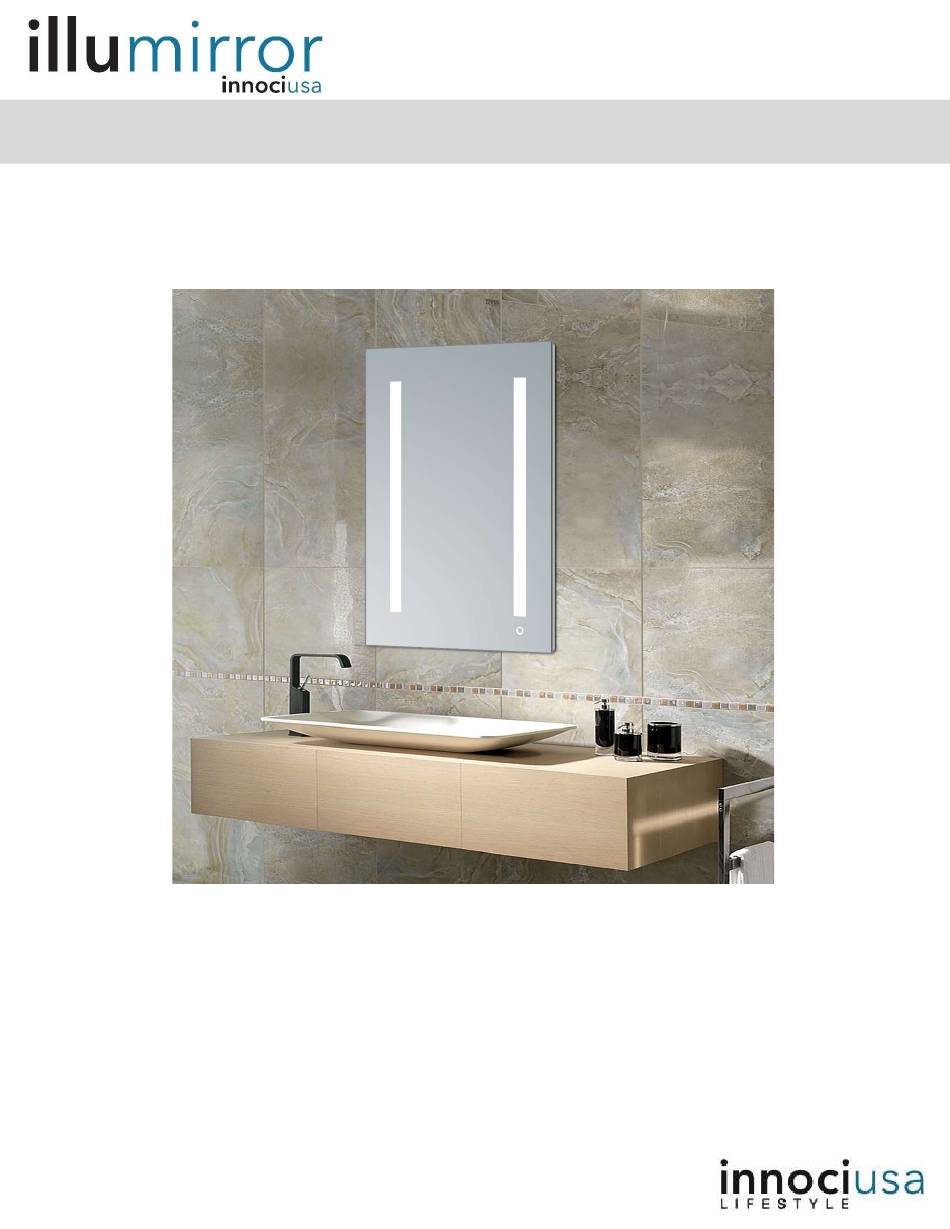

- Page 1 USER GUIDE LED LIGHTED RECESSED MEDICINE CABINET – WITH SURFACE-MOUNT KIT Model: 69252235, 69353035, 69354235...
-
Page 2: Important Safety Information
Side Mirror Bracket Shelf Hole Plug Machine Screw - Side Mirror Bracket Upper Mounting Side Mirror EVA Bracket Foam Block Lower Bracket Wood Screw Drywall Anchor Screw Cap - Inner Screw Cap - Outer Customer Service: (866) 479-8076 or customerservice@innoci-usa.com... -
Page 3: Recessed Mount
(For the built-in outlet receptacle, rating: 20A 125V AC 60Hz, Class 2 Output: 5VDC Max 4.8A) ❷ Electrical wire with constant 110V/60Hz AC or from a wall switch to be connected to the LED lights. Customer Service: (866) 479-8076 or customerservice@innoci-usa.com... - Page 4 Install one bracket to the wall at each end. c. Install the other two brackets to the wall along the grove. NOTE: For drywall application, it is recommended to attach at least one bracket at the wall stud location. Customer Service: (866) 479-8076 or customerservice@innoci-usa.com...
- Page 5 Slide the bracket into the grove at the bottom of the cabinet towards the back. b. Mount the bracket to the wall. For Recessed Mount ONLY Secure the cabinet to the frame Secure the cabinet to the frame as shown above. Customer Service: (866) 479-8076 or customerservice@innoci-usa.com...
- Page 6 LED lights prewired quick connectors (White Cable) in the electrical box. 4. Reinstall the electrical box. For Surface Mount ONLY Attach the Side Mirrors EVA Foam Blocks Attached the side mirrors to the cabinet as shown above. Customer Service: (866) 479-8076 or customerservice@innoci-usa.com...
-
Page 7: Basic Operations
Tap at the center area of the small ring with your finger to control the lighting: on/off or change the color temperatures. NOTE: If it is hooked to a wall switch with on/off function, the lights will go back to the setting prior to being turned off with the wall switch. Customer Service: (866) 479-8076 or customerservice@innoci-usa.com... -
Page 8: Care And Maintenance
How to request an “RA” number: Fill out the “RA” form and email it to Customer Service customerservice@innoci-usa.com. “RA” form can be obtained by emailing Customer Service or from our website www.innoci-usa.com. We will send you a Return Authorization Number (RA) by return by email. Please take necessary precautions when returning merchandise to prevent additional damage. -
Page 9: Exploded View
EXPLODED VIEW Part Description Mirror Door LED Light Connection Box LED Driver Touch Switch 110V Receptacle with USB Outlets Cover Plate Cosmetic Mirror Aluminum Frame Glass Shelf Mirror Back Board Hinge Side Mirror (Sold Separately) Customer Service: (866) 479-8076 or customerservice@innoci-usa.com... - Page 10 Inc. 14530 Best Ave., Santa Fe Springs, CA 90670 www.innoci-usa.com © innoci usa, Inc. All rights reserved. Rev 4.5...
