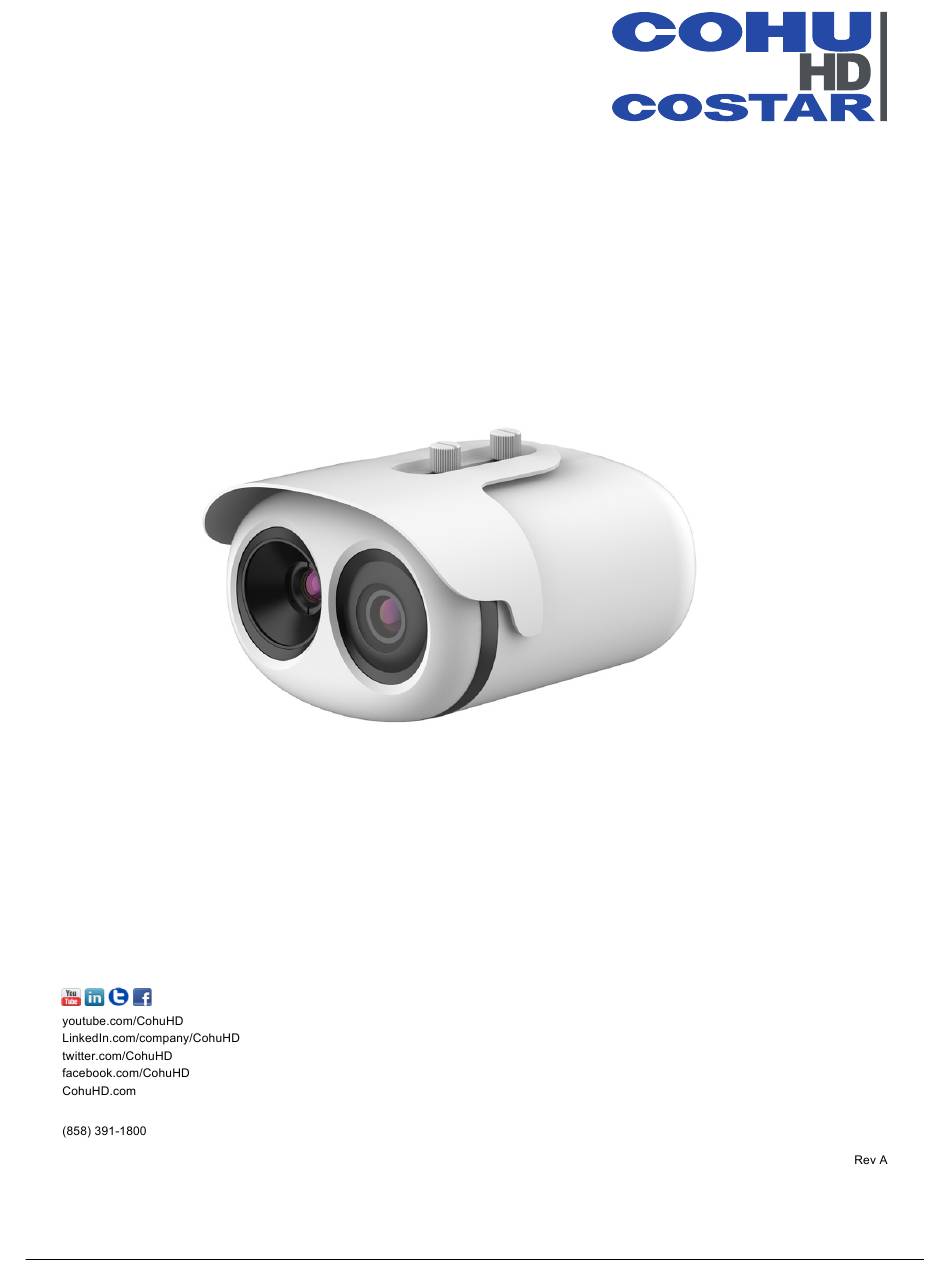

- Page 1 3212-2000 Thermometric System Quick Start Guide © CohuHD Costar, LLC reserves the right to change specifications without notice.
-
Page 2: Table Of Contents
Thermal Mapping ............................. 8 Thermal Calibration ..........................9 Set a Temperature Alarm Trigger ......................11 Connect a Physical Alarm ........................13 Set up an FTP Snapshot Location ......................13 View Live Video ............................15 CohuHD 3212-2000 Thermometric System Quick Start Guide... -
Page 3: Physical Installation Guidelines
Make sure the Thermal Calibration Reference Device is inside the camera’s field of view. Wall Mounted configuration When mounting the camera on a wall, use the same height and distance as the ceiling mounted configuration. See illustration below. CohuHD 3212-2000 Thermometric System Quick Start Guide... -
Page 4: Outdoor Mounted Configuration
It is necessary to perform temperature measurements within a standardized distance, otherwise temperature readings will deviate. The best horizontal distance from the camera to a person’s face is 13 feet (4m), with an acceptable range of 10–16 feet (3–4.8m). CohuHD 3212-2000 Thermometric System Quick Start Guide... -
Page 5: Configure The Camera
(requires 10W) or the supplied 12VDC power supply. It may take several minutes for the camera to start up. Open your web browser and go to 192.168.0.121. 4. Enter admin for both the username and password. You should change the default password after you log in. CohuHD 3212-2000 Thermometric System Quick Start Guide... -
Page 6: Configure Temperature Ranges
Configure Temperature Ranges Aside from the settings listed below, we suggest keeping all other settings as their defaults. 1. Go to the Configuration Tab. 2. Select Human Thermometer » Parameter Configure. 3. Enable Face Detection. CohuHD 3212-2000 Thermometric System Quick Start Guide... - Page 7 10. Set Face Color to display a color pallet showing the hot regions of your targets’ faces. 11. Set Environment Adaptation to On if your camera is outside. Otherwise, leave it set to Off. 12. Set Abnormal Temperature Display to hide temperature readings that are outside your operating parameters. CohuHD 3212-2000 Thermometric System Quick Start Guide...
-
Page 8: Set Up Detection Zones
2. In the camera image, click four corners outlining the area where faces will appear in your scene; after you select the last point, click the first point again to finish drawing the zone. 3. Repeat the above steps to draw more zones. 4. Click Apply to save your settings. CohuHD 3212-2000 Thermometric System Quick Start Guide... -
Page 9: Thermal Mapping
6. Click a point inside the zone in the visible scene. 7. Click the corresponding point inside the zone in the thermal scene. 8. Repeat this process for the remaining two Mapping Points. CohuHD 3212-2000 Thermometric System Quick Start Guide... -
Page 10: Thermal Calibration
3. If you turn on Display Area Info, the Thermal Calibration Reference Device is shown in a rectangle with its current temperature on thermal image. 4. Enter the Distance to the Thermal Calibration Reference Device and the Temperature of the unit. CohuHD 3212-2000 Thermometric System Quick Start Guide... - Page 11 5. In the thermal image, draw an area covering the Thermal Calibration Reference Device. Click the four corners, outlining the Thermal Calibration Reference Device. After you select the last point, click the first point again to finish drawing the zone. 6. Click Apply. CohuHD 3212-2000 Thermometric System Quick Start Guide...
-
Page 12: Set A Temperature Alarm Trigger
4. Set the days and times when you want to detect temperature alarms. 5. Enable your alarm’s outputs: SMTP sends an email notification. Click Network Source » SMTP to configure your SMTP server and recipient email. CohuHD 3212-2000 Thermometric System Quick Start Guide... - Page 13 (purchased separately). If the camera detects a high temperature, the camera sends a high-level signal or pulse signal through the alarm out port. You must Connect a Physical Alarm before you can select output channels. CohuHD 3212-2000 Thermometric System Quick Start Guide...
-
Page 14: Connect A Physical Alarm
1. Select Network Service » FTP. 2. Enable FTP Upload. 3. Enter your FTP Address, Port, account information, and the Path where you want to store snapshots on your FTP server. 4. Click Apply. CohuHD 3212-2000 Thermometric System Quick Start Guide... - Page 15 FTP Upload Whole Image: upload the full image. • OSD Overlay Snapshot: Snapshots with the temperature info. You can find the snapshots in the FTP server path, named by face ID and temperature. CohuHD 3212-2000 Thermometric System Quick Start Guide...
-
Page 16: View Live Video
You can also email us support@cohuhd.com. Note: The information contained in this user guide is subject to change without notice. CohuHD 3212-2000 Thermometric System Quick Start Guide... - Page 17 For more information please visit us at: www.CohuHD.com...
