Summary of Contents for Wessel-Werk TK 286

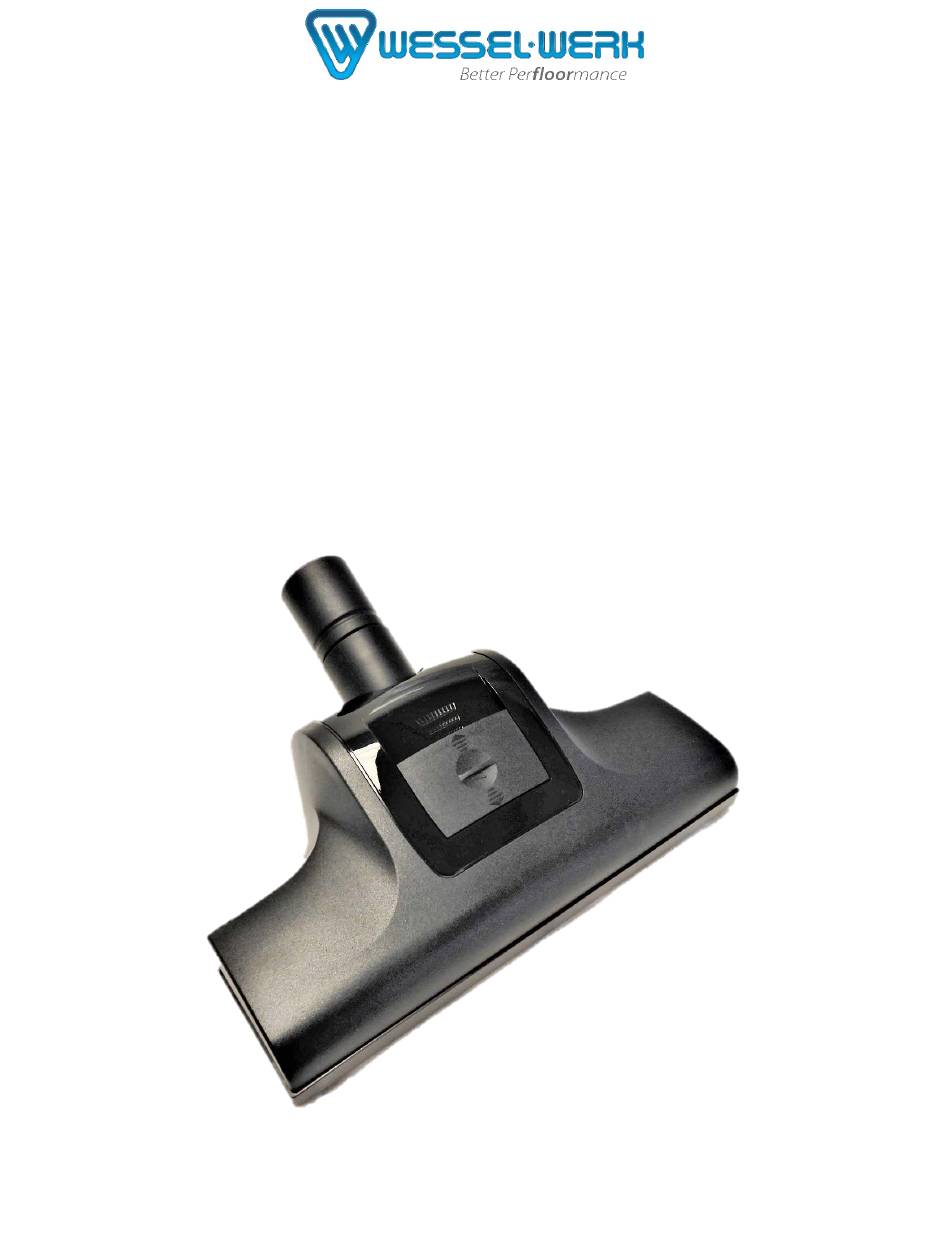

- Page 1 TK 286 Maintenance Guide...

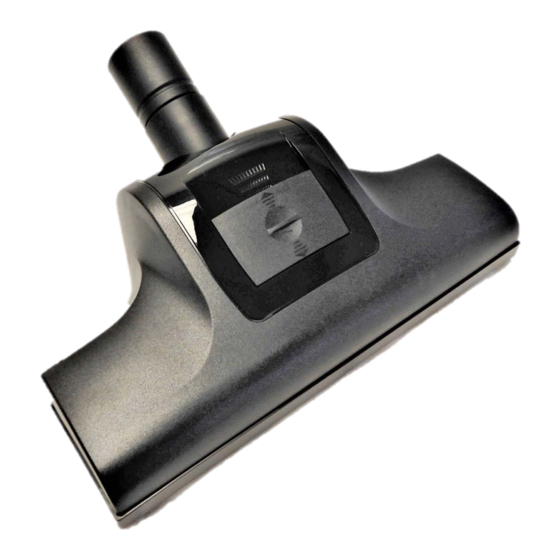

- Page 2 This Service Guide is designed as a reference tool to help pinpoint service needs of the Wessel-Werk TK 286 Turbo Brush. Required Tools o #10 Torx Screw Driver o Medium Flat Head Screw Driver Common Spare Parts o Brush Assembly Complete...
- Page 3 Disassembly Remove the top cover Remove 6 x #10 Torx Screws from the base. Please Note: 4 screws are ‘hidden’ below the wheels. To remove, simply pry- up with a flat screw driver.
- Page 4 Remove the top cover: Please note: More force than expected may be required to remove the cover. Especially in older units.
- Page 5 Remove Turbine/Neck Assembly: Squeeze the roller bushing holder together to release the bushing holder from the base assembly. Remove Belt Enclosure Separate the belt enclosure...
- Page 6 Dismanteling Complete All components of the TK 286 are now accessable • It is recommended that the brushroll and pivot arms are replaced as a set. • Always replace the pivot arms when replacing the brushroll...
- Page 7 Reassembly Notes Press Roller Bushing Holder into place • Note orientation of Bushing assembly in after picture Before After Press wheel/Axel assembly into place • Place Wheel axel into place, place nozzle on hard surface • Press into place by applying pressure to the top of the nozzle(pic 4) Rear Wheel before After...
- Page 8 Troubleshooting It is possible for the TK 286 to become clogged. This usually occurs when oversized debris are vacuumed. There are 3 points where cloging is possible: Intake orifice is blocked. Access area at the bottom of the unit in the brush chamber Turbine is blocked.
- Page 9 Roller Brush Maintenance • It is common for the roller brush to fill with hairs and string • It is vital that the roller brush be cleaned frequently • Failure to free roller brush of debris will affect performance and shorten the life of the nozzle •...
- Page 10 Parts List Description Part Number Top Cover 10.1 638-305 Neck Assembly 31.5mm Black 10.4 206-303 Neck Assembly 34,9mm Black 10.4 206-301 Neck Assembly 39.6mm S-Wand 10.4 206-311 Glossy Decretive Cover-Black 10.1 639-300 Air-Relief Slider black 10.1 641-300 Clean-out Door 10.1 659-300 Belt Enclosure 10.1 636-300 Base Plate...
