CLA-VAL e-Power IP
Turbine
Power: 14 W / Voltage: 12 V and 24 V
 User Manual
 CLA-VAL Europe
www.cla-val.ch
cla-val@cla-val.ch
1 - LIN036UE
- 10/13
© Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-Power IP and is the answer not in the manual?

Questions and answers

Summary of Contents for CLA-VAL e-Power IP

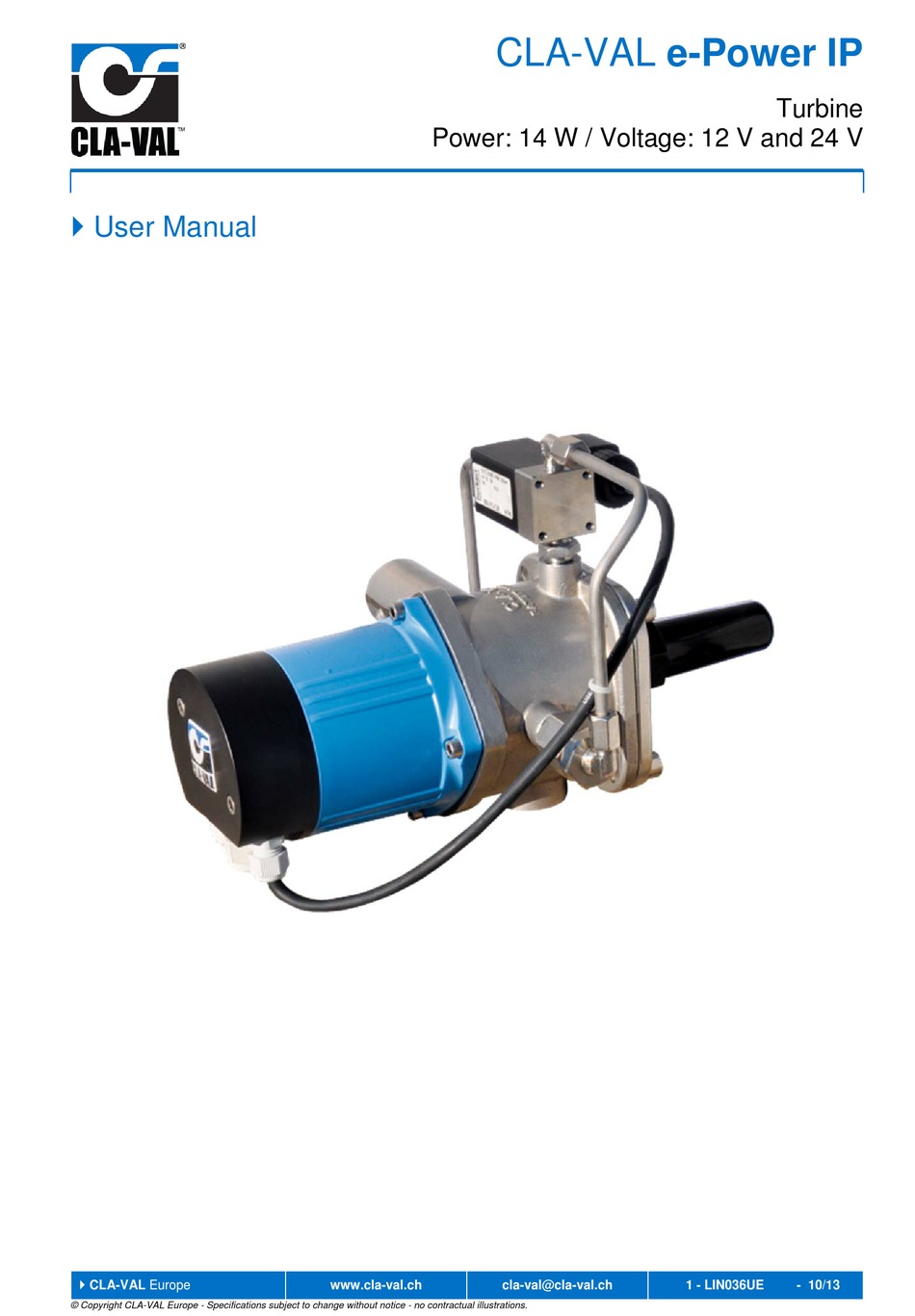

  • Page 1 CLA-VAL e-Power IP Turbine Power: 14 W / Voltage: 12 V and 24 V  User Manual  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 1 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 2: Table Of Contents

    6.1  Repair Kit Use ........................17   Annex ..........................17     7.1  Quick Start Instruction LIN036ST................... 17   CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 2 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 3: Information

     Adjustable wrench (Spanner).  Connection to our internet address to update your e-Power IP with the latest version of the Software and Firmware (chapter 0). 1.2 SAFETY WORK ON ELECTRICAL BOX Before making any wiring connections in the electrical box, ensure that the isolating valve on the bypass is closed so that the turbine cannot be engaged.

  • Page 4: Basic Calculation Rules

    Turbine    Power balance Autonomy    Power balance Autonomy  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 4 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 5: E-Power Ip Properties

    The e-Power IP is typically installed into the bypass of the CLA-VAL valve. The e-Power IP powers various devices located within close proximity of the valve or on the valve itself, e.g. motorized pilots, sensors, telemetry, PLC or HMI interfaces.

  • Page 6: Description

    Output voltage Quick Start Instructions 12 V and 24 V No LIN036ST Battery alarm (dry contact)  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 6 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.
  • Page 7 Connection to the second bistable Connection to the electrical box solenoid bistable solenoid on the turbine  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 7 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 8: Technical Data

    (32 & 64 bit) Protection: IP 68 (excluding solenoid) Strainer: For solenoid, Screen 0.2 mm  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 8 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 9: Pcb

    Input battery 12 V + Batt - Input battery 12 V - Blue *Customer wiring  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 9 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 10: Battery Properties

    : Do not attempt to open the product as this will invalid the warranty! 3.2 QUICK START INSTRUCTION - LIN036ST (SEE ANNEX CHAPTER 7)  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 10 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 11: Software And Firmware

    Visit our web site www.cla-val.ch frequently to download the latest updates and news free of charge.  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 11 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 12: Firmware Update (Internal Software)

    Double click on the e-Power IP icon to start the program. If the connection with the e-Power IP is successful, the e-Power IP appears in the window. Click on the text. Select "Firmware update" in "Parameters", the following window appears : Click "Yes".
  • Page 13 Forced charge 2 Hour (h) Forced charge (available if 17:00 h Default value the system is not charging)  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 13 - LIN036UE - 10/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.

  • Page 14: Changing The Battery Capacity

    Power: 14 W / Voltage: 12 V and 24 V 4.6 CHANGING THE BATTERY CAPACITY To install a new battery for your e-Power IP system, please follow the procedure to change the battery capacity with the help of the software.

  • Page 15: Assistance

    Power: 14 W / Voltage: 12 V and 24 V  ASSISTANCE If you have trouble charging the battery, the battery alarm is active and your electronic device connected to the e-Power IP is not powered because the battery voltage is too low. Please follow the procedure below: Please follow the procedure «...

  • Page 16: Maintenance

    10- Disconnect the battery and reconnect it to check the proper operation of the « Turbine Check Cycle » (see chapter « How do you check if the e-Power IP runs properly? » Annex: Quick Start Instruction LIN036ST). e-Power IP commissioned with the output voltages 12 and 24 V connected ...

  • Page 17: Repair Kit Use

    Turbine Power: 14 W / Voltage: 12 V and 24 V 6.1 REPAIR KIT USE Every 5 years, it is advisable to maintain the e-Power IP with the help of the repair kit *CKEIP-STD-01. * CLAKIT = *CKEIP-STD-01 9* Joint...
  • Page 18 - Easy connection with the removable terminal. - Câblage simplifié à l’aide du bornier débrochable.  CLA-VAL Europe www.cla-val.ch cla-val@cla-val.ch 1 - LIN036ST D 07/13 © Copyright CLA-VAL Europe - Specifications subject to change without notice - no contractual illustrations.
  • Page 19  Fermez le coffret électrique à l’aide des 6 vis.  The e-Power IP is commissioned and ready to be used.  La e-Power IP est mise en service et prête à l’emploi.  How do you check if the e-Power IP run properly ? Comment vérifier le bon fonctionnement de la e-Power IP ?
  • Page 20  What is the differential pressure across the turbine / Quelle est la différentielle de pression à travers la turbine  Close the isolating valve in the bypass to stop the  Fermez le robinet du by-pass pour arrêter la turbine. turbine.
  • Page 21  For optimal functioning of the e-Power IP, the AC voltage  Pour un fonctionnement optimal de la e-Power IP, la of the turbine should be between 185 and 200 VAC. tension alternative de la turbine doit être comprise entre 185 et 200 VAC.
