NOVA

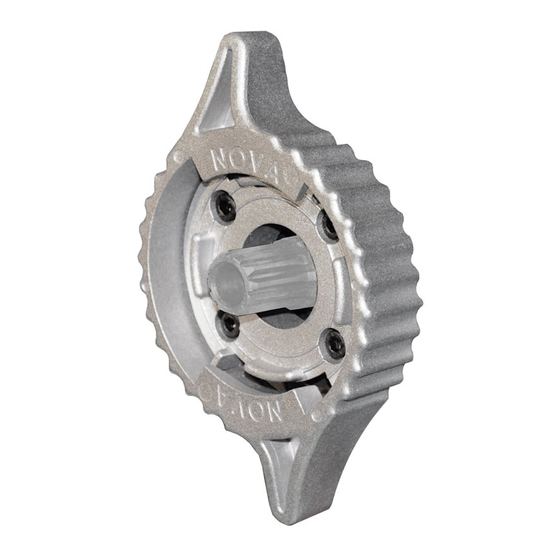

COMET VERSATURN™ COUPLER
ACCESSORY
THIS MANUAL CONTAINS IMPORTANT INFORMATION
REGARDING SAFETY, OPERATION, MAINTENANCE AND
STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY
AND UNDERSTAND ALL CAUTIONS, WARNINGS,
INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO
COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR
PROPERTY DAMAGE. THIS ACCESSORY CAN ONLY BE USED
ON THE NOVA™ COMET II MIDI LATHE WITH THE
VERSATURN™ COUPLER ACCESSORY.
118-1214-010
Publication 118-1214-010
Patent Application 593-446
SKU: 47000
1
Advertisement
Related Manuals for Teknatool NOVA COMET VERSATURN
Summary of Contents for Teknatool NOVA COMET VERSATURN

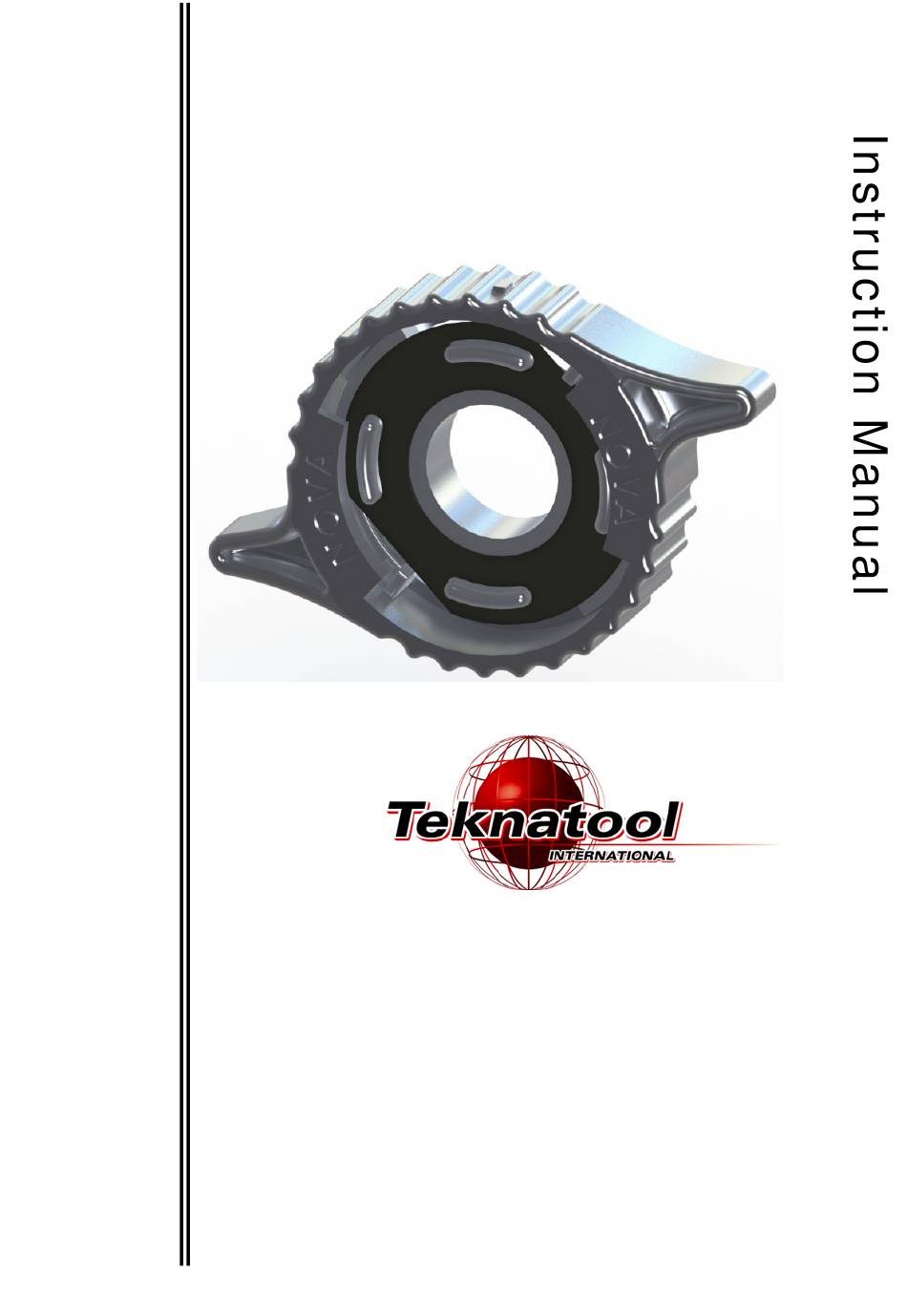

- Page 1 NOVA COMET VERSATURN™ COUPLER ACCESSORY Publication 118-1214-010 Patent Application 593-446 SKU: 47000 THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.
- Page 2 Due to NOVA’s continual product development and improvement policy, product features and specifications may change without notice • © Copyright 2000 - 2014 by Teknatool International. All Rights Reserved. NOVA Comet II™ and NOVA Versaturn™ are trademarks of Teknatool International Ltd. •...
-
Page 3: Contact Teknatool
CONTACT TEKNATOOL: New Zealand United States Teknatool International Ltd Teknatool Service Center Phone: (+64) 9 477 5600 Phone: 727-954-3433 Fax: (+64) 9 477 5601 Free Phone: 1-866-748-3025 Email: service@teknatool.com Free Fax: 1-866-748-4193 Website: www.teknatool.com Email: service@teknatool.com Website: www.teknatool.com 118-1214-010... -
Page 4: Table Of Contents
TABLE OF CONTENTS: CONTACT TEKNATOOL: ..............3 GENERAL SAFETY RULES ..............5 ADDITIONAL SAFETY RULES: ............8 INSTALLATION INSTRUCTIONS: ............10 OPERATION INSTRUCTIONS: ............11 Accessories For Comet II Midi Lathe: ..........14 Warranty: .................... 15 118-1214-010... -
Page 5: General Safety Rules
GENERAL SAFETY RULES Intended Use This product is intended for consumer use only. This tool is not designed for professional use. The power cord should only be used in approved electrical outlets as described in this manual. Failure to use the proper power cords and/or extension cords may result in fire or possible damage to the NOVA COMET II MIDI LATHE and VERSATURN™... - Page 6 DO NOT RUN THE NOVA VERSATURN™ COUPLER & VERSATURN™ ACCESSORY ATTACHMENTS IN REVERSE! Damage would occur to the equipment and possibly cause serious injury. THE NOVA VERSATURN™ COUPLER ACCESSORY (SKU 47000) CAN ONLY BE USED ON THE NOVA™ COMET II MIDI LATHE. IT CANNOT BE USED ON ANY OTHER MODEL LATHE.
- Page 7 GROUND ALL TOOLS. If the tool is equipped with a three-prong plug, it should be plugged into a three hole electrical receptacle. If an adapter is used to accommodate a two prong receptacle, the adapter plug must be attached to a known ground. NEVER remove the third or grounding prong. DISCONNECT TOOLS.
-
Page 8: Additional Safety Rules
CHECK DAMAGED PARTS. Before further use of the tool, any part that is damaged should be carefully checked to ensure that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, mounting, and any other conditions that may affect its operation. - Page 9 “ON” THE SPINDLE. USE LOWEST SPEED when turning a new or unbalanced work piece. TURN AT RECOMMENDED SPEED. Always operate the NOVA Comet II Midi Lathe at the recommended speed(s). Consult your wood lathe manual and any NOVA VERSATURN™ Accessory Manuals for suggested speeds.DO NOT OPERATE THE NOVA VERSATURN™...
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS: Part List Part # Code Descriptio Coupler 47010 Lock Ring Coupler 47011 Interface Spring washer M5x14 C05014 Cap Screw Rubber 47013 Gasket Grease Apply a layer of grease to surfaces ‘C’ and Insert the Coupler (2) into the ‘D’... - Page 11 3. Place the Coupler Interface (2) and Coupler Lock Ring (1) over the Comet II Spindle (B) and up against Coupler mounting face on the Comet II (A). 4. Align the mounting holes on the Coupler Interface (2) with the threaded holes on the Coupler Mounting face (A).
-
Page 12: Operation Instructions
OPERATION INSTRUCTIONS: Ensure the “ON/OFF” switch is in the “OFF” position before plugging the power cord into the AC power source. Ensure there are no tools or work pieces in contact with the chosen VERSA TURN Accessory when the NOVA Comet II Midi Lathe is turned “ON.” Failure to observe these procedures could result in damage to the chosen VERSATURN™... - Page 13 Once the face of the VERSATURN™ Accessory is flat on the rubber face of the VERSATURN™ Coupler, rotate the VERSATURN™ Coupler's Lock Ring clockwise until the "Locked" tab (6) is facing upward, to lock the grinder onto the lathe.(Figure 5) Double check the Lock ring is tightened snug and that the VERSATURN™...
-
Page 14: Accessories For Comet Ii Midi Lathe
ACCESSORIES FOR COMET II MIDI LATHE: Add-On Bed Extension # 47001 Extend the bed of your Nova Comet II Wood Lathe for greater capacity between centers. One additional bed extension adds 24.6”/625mm to the lathes length. Nova G3 Reversible Chuck # 48232 A self-centering chuck to securely hold round or square work pieces for centerless turning. -
Page 15: Warranty
WARRANTY: Teknatool One Year Limited Warranty This Teknatool product is backed by a warranty from the date of purchase. Teknatool International Ltd will repair or replace, at its expense and option, this Teknatool product which in normal use has proven to be defective in workmanship... - Page 16 ® © 2011Teknatool International Ltd, Teknatool USA Inc. All Rights Reserved. Register your warranty online www.teknatool.com 118-1214-010...
